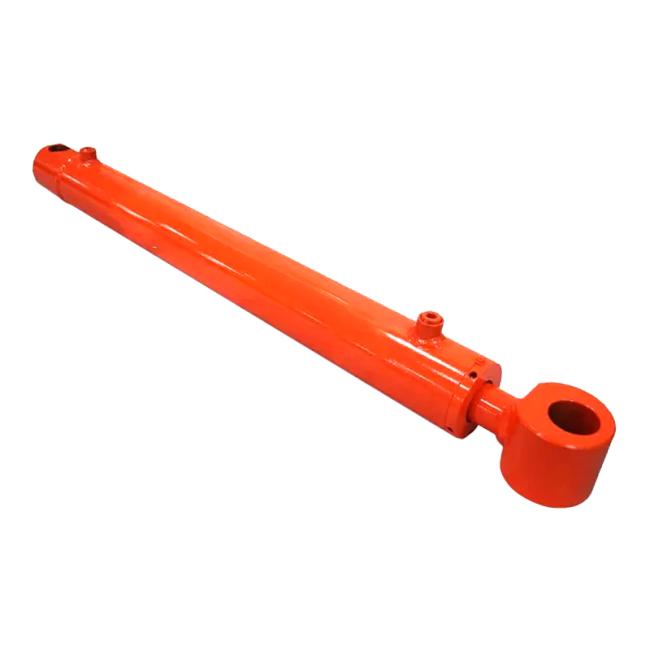

Belparts Excavator Hydraulic Cylinder E320C 320C Bucket Cylinder Assy 1589061
Belparts Excavator hydraulic cylinder E320C 320C Bucket cylinder assy 1589061
Quick Detail of Excavator Hydraulic Cylinder Assy
Material:Steel
Product Name: Excavator Hydraulic Cylinder Assy
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Part number:1589061
Package Details:Export Wooden Box
Weight:110KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
Specifiions Of Excavator Cylinder Assy
| Product Name | cylinder assy |
| Brand | Belparts |
| Machine model | E320C 320C |
| Pump Number | / |
| N.W/KG | 110KG |
| G.W/KG | 110KG |
| Packing Size | 84*38*49 |
| Part number | 1589061 |
| Pressure | Standard, High Pressure |
| Part No | Part Name | Price request | ||
| 1589061 | CYLINDER GROUP-BUCKET | |||

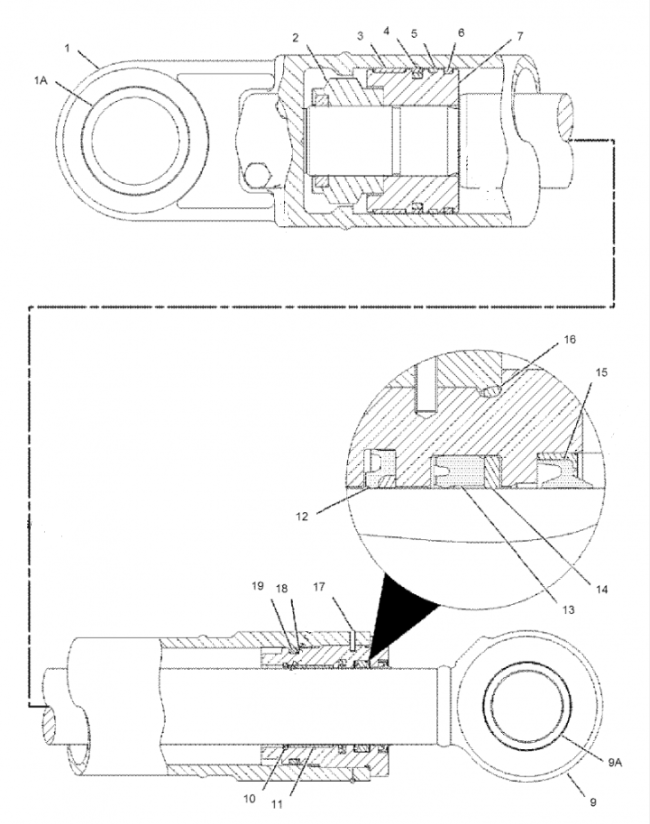

| # | Part No | Part Name | Qty. | Price request |
| 1 | 7Y5116 | RING (BACK UP) | 1 | |
| 2 | 1709860 | SEAL (U CUP) | 1 | |
| 3 | 7Y5119 | RING-RETAINING | 1 | |
| 4 | 9X3592 | SEAL ASSEM. | 1 | |
| 5 | 0875504 | LOCKNUT (M64) | 1 | |
| 6 | 1709844 | SEAL (BUFFER) | 1 | |
| 7 | 1262043 | HEAD | 1 | |
| 8 | 1589062 | PISTON | 1 | |
| 9 | 1659231 | CYLINDER AS | 1 | |
| 9A | 1633748 | BEARING (SLEEVE) | 1 | |
| 10 | 1659233 | ROD AS | 1 | |
| 10A | 1633751 | BEARING-SLEEVE | 1 | |
| 11 | 1659286 | SEAL (LIP TYPE) | 1 | |
| 12 | 1799674 | RING | 1 | |
| 13 | 0875510 | RING (BACK UP) | 1 | |
| 14 | 0951717 | SEAL-O-RING (ID=114.40mm) | 1 | |
| 15 | 1140756 | BEARING (SLEEVE) | 1 | |
| 16 | 1589063 | RING | 2 | |
| 17 | 7Y5216 | BOLT (SOCKET HEAD) (M20X2.5X80mm) | 8 | |
| AVAILABLE REPAIR KIT(S): | ||||
| 2366389 | KIT-SEAL (BUCKET CYLINDER) | 1 | ||
| KIT MARKED J SERVICES PARTS MARKED J | ||||
| METRIC PART | ||||
| REMFG PART MAY BE AVAILABLE | ||||
Packing Details
1.According to orders,pack the spare parts one by one by oil paper;
2.Put them into small carton boxes one by one;
3.Put the packed small carton boxes into bigger carton boxes one by one;
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. goods is packed by oil paper and plastic bags inside
6.using wooden package.
7.we support the custom-made demand for package
Service
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
