EX100-2 Final Drive for Hitachi Excavator spare parts 9091651 9116396 9116397 9116398 Repair Parts for Excavator Travel Assembly
Belparts (GUANGZHOU BELPARTS ENGINEERING MACHINERY LIMITED), is a foreign trade company integrating development, sales, procurement, warehousing, transportation and service. Founded in September 2013, we have more than ten years of experience in machinery trade.
Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 125 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.
| Brand | Belparts |
|---|---|
| Spare Parts Name | Excavator Travel Motor Assy |
| Model | EX100-2 |
| Warranty | 6 Months |
| MOQ | 1pcs |
| Delivery Terms | After payment 3-7days |
| Payment Terms | L/C, T/T, Paypal, Trade Assurance |

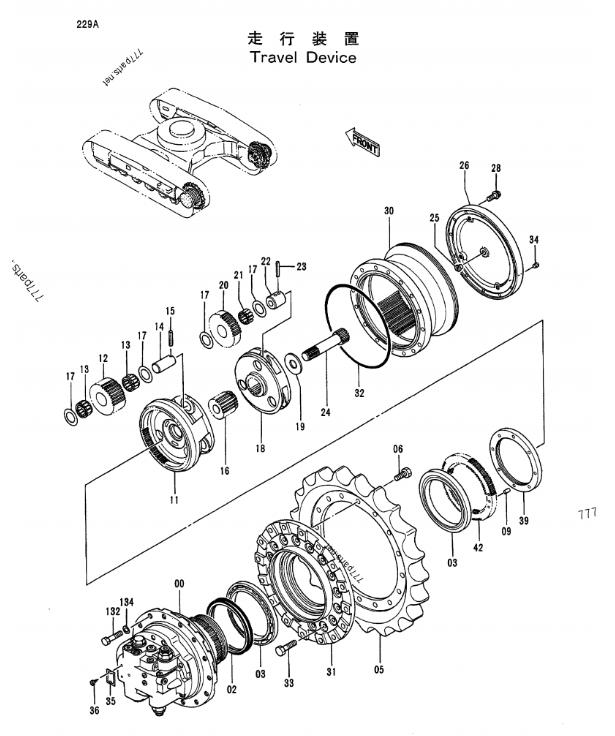

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 0042 | 9091651 | TRAVEL DEVICE ASS'Y | 2 | |
| 0042 | 9116396 | TRAVEL DEVICE ASS'Y | 2 | |
| 0042 | 9116397 | TRAVEL DEVICE ASS'Y | 2 | |
| 0042 | 9116398 | TRAVEL DEVICE ASS'Y | 2 | |
| 00 | 9096731 | . MOTOR; OIL | 1 | |
| 00 | 9116375 | . MOTOR; OIL | 1 | |
| 00 | 9116379 | . MOTOR; OIL | 1 | |
| 00 | 9116383 | . MOTOR; OIL | 1 | |
| 02 | 4110369 | . SEAL; GROUP | 1 | |
| 03 | 4228851 | . BRG.; ROL. | 2 | |
| 03 | 4321887 | . BRG.; ROL. | 2 | |
| 05 | 1010325 | . SPROCKET | 1 | |
| 06 | J931640 | . BOLT | 16 | |
| 09 | 4148012 | . PIN; KNOCK | 1 | |
| 11 | 1013926 | . CARRIER | 1 | |
| 12 | 3043236 | . GEAR; PLANETARY | 3 | |
| 13 | 4115435 | . BRG.; NEEDLE | 6 | |
| 14 | 4245966 | . PIN | 3 | |
| 15 | 4144020 | . PIN; SPRING | 3 | |
| 16 | 3043237 | . GEAR; SUN | 1 | |
| 17 | 4192982 | . PLATE; THRUST | 12 | |
| 18 | 2028137 | . CARRIER | 1 | |
| 19 | 4252721 | . SPACER | 1 | |
| 20 | 3049946 | . GEAR; PLANETARY | 3 | |
| 21 | 4252658 | . BRG.; NEEDLE | 3 | |
| 22 | 4178203 | . PIN | 3 | |
| 23 | 4192020 | . PIN; SPRING | 3 | |
| 24 | 2028798 | . SHAFT; PROP. | 1 | |
| 25 | 4258916 | . PIN; STOPPER | 1 | |
| 26 | 2028799 | . COVER | 1 | |
| 28 | J011230 | . BOLT; SEMS | 12 | |
| 30 | 1016324 | . GEAR; RING | 1 | |
| 31 | 1016125 | . DRUM | 1 | |
| 32 | 4269322 | . O-RING | 1 | |
| 33 | J931660 | . BOLT | 16 | |
| 34 | 4245797 | . PLUG | 3 | |
| 35 | 3053559 | . NAME-PLATE | 1 | |
| 36 | M492564 | . SCREW; DRIVE | 2 | |
| 39 | 3057124 | . NUT | 1 | |
| 42 | 3059034 | . HUB | 1 | |
| 132 | 4272305 | BOLT | 28 | |
| 134 | J222016 | WASHER | 28 |
|
Price included hydraulic excavator pump.complete and I give 12 months warranty.
If You looking:
Hydraulic pump, final drive, swing motor, slewing gear ring,gear box
and also:
undercarriage parts
(chains, rollers, idlers, sprockets)
Shipping to all countries.
Ask for shipping cost before transaction
Please contact us for quotation information:
Email: belparts02@gmail.com
Whatsapp: +86 189 2896 5241
Please feel free to contact me anytime
