PC120-3 PC100-3 Travel Reduction for Komatsu Excavator Spare Parts 203-60-00302 203-60-00301 203-60-00300 203-60-41101 Walking Reducer Assembly
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
1-7days
Brand:
Belparts
Product Description
PC120-3 PC100-3 Travel Reduction for Komatsu Excavator Spare Parts 203-60-00302 203-60-00301 203-60-00300 203-60-41101 Walking Reducer Assembly
Specifications
| Application | Excavator |
| Part Name | Excavator Travel Gearbox |
| Model | PC120-3 PC100-3 |
| Part Number | 203-60-00302 203-60-00301 203-60-00300 203-60-41101 |
| MOQ | 1 PC |
| Warranty | 12 Months |
| Payment Terms | T/T, LC, PayPal |
| Delivery | 3 Days After Payment Received |
| Shipment | By Sea, By Air, By Express or as Required |
Product Features
- High-strength alloy steel forged gears with carburizing and quenching treatment
- Surface hardness reaches HRC58-62 for superior wear and impact resistance
- Capable of withstanding long-term heavy-load operation
- Forced lubrication design ensures complete lubrication of gears and bearings
- Reduces friction loss and extends component lifespan
- Die-cast aluminum alloy or cast iron housing combines light weight with deformation resistance
- Designed to adapt to harsh outdoor construction environments
Maintenance Guidelines
During maintenance, regularly check the oil level and oil quality to avoid gear sintering caused by oil shortage or contamination. Replace seals every 2000 hours to prevent leakage failures.

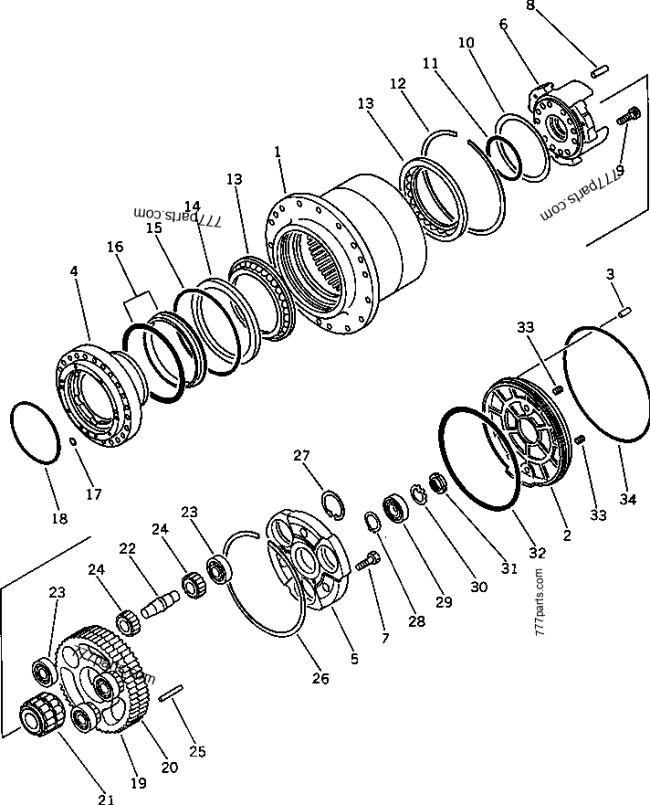

Component Parts List
| # | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 203-60-00302 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | 203-60-00301 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | 203-60-00300 | TRAVEL MOTOR ASS'Y | 2 |
| 1 | 203-60-41101 | TRAVEL MOTOR ASS'Y | 2 |
| ---- | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2005 AND 2006 | ||
| 1 | TZ150A1103-00 | HUB ASS'Y | 1 |
| 1 | TZ150A1001-02 | Hub | 1 |
| 1 | TZ150A1001-01 | Hub | 1 |
| 1 | ---- | Hub | 1 |
| 2 | TZ150A1008-02 | Cover | 1 |
| 2 | TZ150A1008-01 | Cover | 1 |
| 2 | ---- | Cover | 1 |
| 3 | ---- | PIN,DOWEL | 2 |
| 4 | TZ150A1102-01 | SPINDLE ASS'Y | 1 |
| 4 | ---- | Hub | 1 |
| 5 | ---- | FLANGE,HOLD | 1 |
| 6 | ---- | Carrier | 1 |
| 7 | TZ100A1019-00 | BOLT,REAMER | 3 |
| 8 | TZ200A1015-00 | Pin | 6 |
| 9 | 01252-31850 | Bolt | 6 |
| 10 | TZ200A1013-00 | PIECE,DISTANCE | 1 |
| 11 | TZJW1516-G26-9 | O-RING (KIT) | 1 |
| 12 | TZ150A1011-00 | Ring | 1 |
| 13 | TZ200A1021-01 | BEARING,BALL | 2 |
| 13 | TZ200A1021-00 | BEARING,BALL | 2 |
| 14 | TZ150A1010-00 | PIECE,DISTANCE | 1 |
| 15 | 07000-15260 | O-RING,(F4350-60A0 -15 ) | 1 |
| 16 | TZES100-209-A | SEAL,FLOATING (KIT) | 1 |
| 17 | 07000-11006 | O-RING,(NOT SHOWN) | 1 |
| 18 | TZJW1516-G41-9 | O-RING (KIT) | 1 |
| 19 | TZ150A1104-00 | GEAR ASS'Y | 1 |
| 19 | ---- | Gear | 1 |
| 20 | ---- | Gear | 1 |
| 21 | ---- | Bearing | 1 |
| 21 | TZ150A1007-00 | Bearing | 1 |
| 22 | ---- | SHAFT,CRANK | 3 |
| 23 | ---- | Bearing | 6 |
| 24 | ---- | Bearing | 6 |
| 25 | TZ150A1017-00 | Pin | 54 |
| 26 | TZ150A1012-00 | Ring | 1 |
| 27 | TZ150A1020-00 | SNAP RING KIT,SNAP | 3 |
| 28 | 04064-04018 | RING,SNAP (WITH EMERGENCY STEERING) | 1 |
| 29 | TZ150A1024-00 | Bearing | 1 |
| 30 | TZJB1555-AW07 | Washer | 1 |
| 31 | TZJB1554-AN07 | Nut | 1 |
| 32 | TZJW1516-P77-7 | O-RING (KIT) | 1 |
| 32 | 07000-15270 | O-RING,CA1SE SIDE | 1 |
| 33 | TZGM1-2 | Plug | 2 |
| 34 | TZ150A1018-00 | Ring | 1 |
Frequently Asked Questions
If I only know the excavator model, but cannot offer parts numbers, what should I do?
If possible, you can send us pictures of old products, nameplate or the size for reference.
What is the warranty of the parts after I purchase?
The warranty is 6/12 months based on the item details. For genuine parts we don't offer warranty, but can guarantee they are 100% genuine.
How can I pay for the order?
You can complete payment by T/T, Western Union, PayPal, etc.
When will I receive the items after placing an order?
Once we receive your payment, we will arrange shipment within 24 hours; if items are not in stock, we will inform you before payment.
What should I do if there is something wrong with the items?
First of all, we have confidence in the quality of our products. If you find something wrong, please provide pictures for us to check. After confirmation, please return the items to us and we will provide the correct replacement.
What are your main products?
Our main products include final drives, hydraulic pumps, swing gearboxes, travel gearboxes, swing motors, and hydraulic parts. If you need any parts for crawler excavators, you can ask us too. We will try our best to meet your requirements.
