R300LC-9S R300-9S Hydraulic Main Control Valve Assy for Hyundai Excavator Spare Parts 31Q8-17000P Distribution Valve Assembly OEM
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
1~7 days
Brand:
Belparts
Product Description
R300LC-9S R300-9S Hydraulic Main Control Valve Assy for Hyundai Excavator Spare Parts 31Q8-17000P Distribution Valve Assembly OEM
R300LC-9S R300-9S Hydraulic Main Control Valve Assy for Hyundai Excavator Spare Parts 31Q8-17000P Distribution Valve Assembly OEM
Product Overview
The control valve (also known as the main control valve or multi-valve block) is the central hydraulic control component in excavators. It consists of multiple parallel spools that precisely distribute high-pressure oil from the pump to actuators (e.g., hydraulic cylinders, motors) based on operational demands, enabling coordinated machine movements.
Specifications
|
|---|
Working Principle
- Flow Distribution: Operator joystick or electronic signals shift valve spools, adjusting port openings to control oil flow rate and direction to each actuator.
- Pressure Regulation: Integrated pressure compensators and overload relief valves maintain stable flow under varying loads while preventing pressure spikes.
- Multi-circuit Coordination: Parallel spool design allows simultaneous operation of multiple actuators (e.g., boom lifting + arm retraction), with the system automatically splitting pump flow.
Product Images

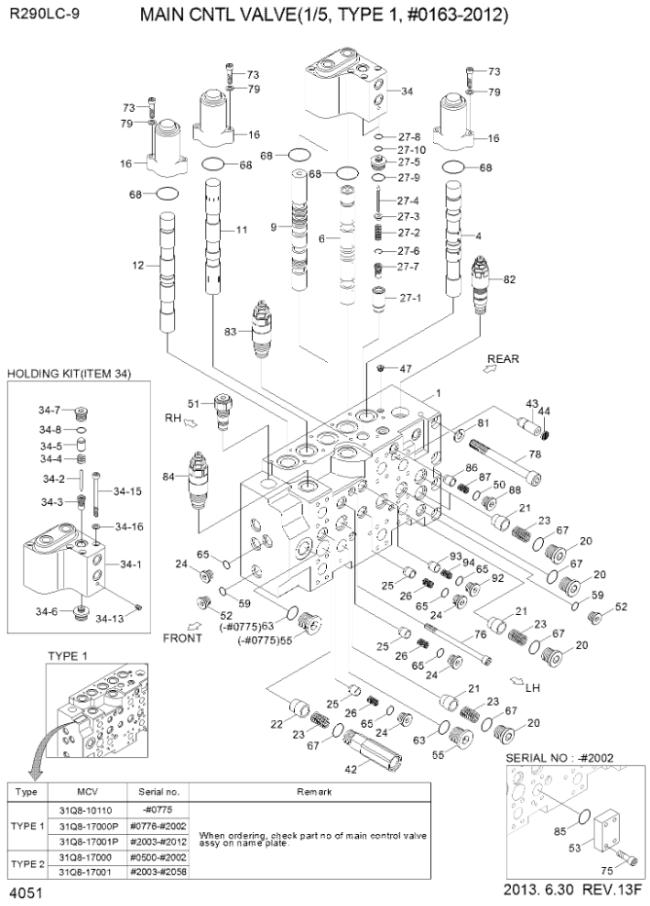

| Parts on group MAIN CONTROL VALVE(1/5, -#1081): | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 31Q8-17000P | [1] | MAIN CONTROL VALVE | |
| *. | 31Q8-17001P | [1] | MAIN CONTROL VALVE | |
| N1. | XKBF-01038 | [1] | HOUSING-P1 | |
| 4 | XKBF-01440 | [1] | SPOOL-TRAVEL | |
| 6 | XKBF-01442 | [1] | SPOOL-BOOM 1 | |
| 9 | XKBF-01444 | [1] | SPOOL-ARM 2 | |
| 11 | XKBF-01446 | [1] | SPOOL-ARM REGEN | |
| 12 | XKBF-01447 | [1] | SPOOL-BUCKET | |
| 16 | XKBF-00379 | [2] | COVER B1-PILOT | |
| 20 | XKBF-00383 | [5] | PLUG | |
| 21 | XKBF-00806 | [4] | POPPET 1 | |
| 22 | XKBF-00385 | [1] | POPPET | |
| 23 | XKBF-01250 | [5] | SPRING 1 | |
| 24 | XKBF-01252 | [5] | PLUG | |
| 25 | XKBF-01450 | [4] | POPPET 2 | |
| 26 | XKBF-01451 | [4] | SPRING 2 | |
| 27 | XKBF-00442 | [1] | HOLDING KIT-B | |
| 27-1. | XKBF-01457 | [1] | POPPET-LOCK VALVE | |
| 27-2. | XKBF-01340 | [1] | SPRING-POPPET SIGNAL | |
| 27-3. | XKBF-01426 | [1] | GUIDE-POPPET | |
| 27-4. | XKBF-01458 | [1] | POPPET-PILOT | |
| 27-5. | XKBF-01459 | [1] | SEAT-POPPET | |
| 27-6. | XKBF-00903 | [1] | C-RING | |
| 27-7. | XKBF-00905 | [1] | RESTRICTOR-LOCK VLV | |
| 27-8. | XKBF-00958 | [1] | O-RING | |
| 27-9. | XKBF-01283 | [1] | O-RING | |
| 27-10. | XKBF-00962 | [1] | RING-BACK UP | |
| 29 | XKBF-01592 | [1] | O-RING | |
| 30 | XKBF-01593 | [1] | RING-BACK UP | |
| 31 | XKBF-01594 | [1] | O-RING | |
| 32 | XKBF-01595 | [1] | PLUG | |
| 34 | XKBF-01256 | [1] | HOLDING KIT-A2 | BOOM 1 |
| N34-1. | XKBF-01257 | [1] | BLOCK P1-HOLDING | |
| 34-2. | XKBF-00910 | [1] | PISTON 1 | |
| 34-3. | XKBF-00907 | [1] | GUIDE-POPPET | |
| 34-4. | XKBF-00912 | [1] | SPRING 1 | |
| 34-5. | XKBF-00913 | [1] | PISTON 2 | |
| 34-6. | XKBF-01248 | [1] | PLUG | |
| 34-7. | XKBF-01258 | [1] | PLUG | |
| 34-8. | XKBF-01259 | [1] | O-RING | |
| 34-13. | XKBF-00931 | [1] | PLUG | |
| 34-15. | XKBF-01265 | [5] | BOLT-SOCKET | |
| 34-16. | XKBF-00425 | [5] | WASHER-SPRING | |
| 42 | XKBF-00398 | [1] | CHECK VALVE ASSY | |
| 43 | XKBF-00399 | [1] | ORIFICE-SIGNAL | |
| 44 | XKBF-00922 | [1] | FILTER-COIN TYPE | |
| 47 | XKBF-00931 | [2] | PLUG | |
| 50 | XKBF-01275 | [2] | O-RING | |
| 51 | XKBF-00807 | [1] | NEGATIVE CONTROL VLV | |
| 52 | XKBF-00933 | [2] | PLUG | |
| 53 | XKBF-01276 | [1] | FLANGE | |
| 55 | XKBF-01279 | [1] | PLUG | |
| 59 | XKBF-00940 | [2] | O-RING | |
| 63 | XKBF-01280 | [2] | O-RING | |
| 65 | XKBF-01282 | [5] | O-RING | |
| 65 | XKBF-01282 | [5] | O-RING | |
| 67 | XKBF-01074 | [6] | O-RING | |
| 68 | XKBF-00416 | [5] | O-RING | |
| 73 | XKBF-01284 | [6] | BOLT-SOCKET | |
| 75 | XKBF-01286 | [4] | BOLT-SOCKET | |
| 76 | XKBF-01287 | [2] | BOLT-SOCKET | |
| 78 | XKBF-01289 | [4] | BOLT-SOCKET | |
| 79 | XKBF-00425 | [6] | WASHER-SPRING | |
| 81 | XKBF-00427 | [4] | WASHER-SPRING | |
| 82 | XKBF-01291 | [1] | RELIEF VALVE-MAIN | |
| 83 | XKBF-01292 | [1] | RELIEF VALVE-OVERLOAD | |
| 84 | XKBF-01293 | [1] | RELIEF VALVE-OVERLOAD | |
| 85 | XKBF-01294 | [1] | O-RING | |
| 86 | XKBF-00732 | [1] | POPPET-CHECK | |
| 87 | XKBF-00733 | [1] | SPRING-CHECK | |
| 88 | XKBF-01295 | [2] | PLUG | |
| 92 | XKBF-01543 | [1] | PLUG | |
| 93 | XKBF-01542 | [1] | POPPET | |
| 94 | XKBF-01541 | [1] | SPRING | |
| N. | @ | [AR] | NOT SUPPLIED PARTS | |
