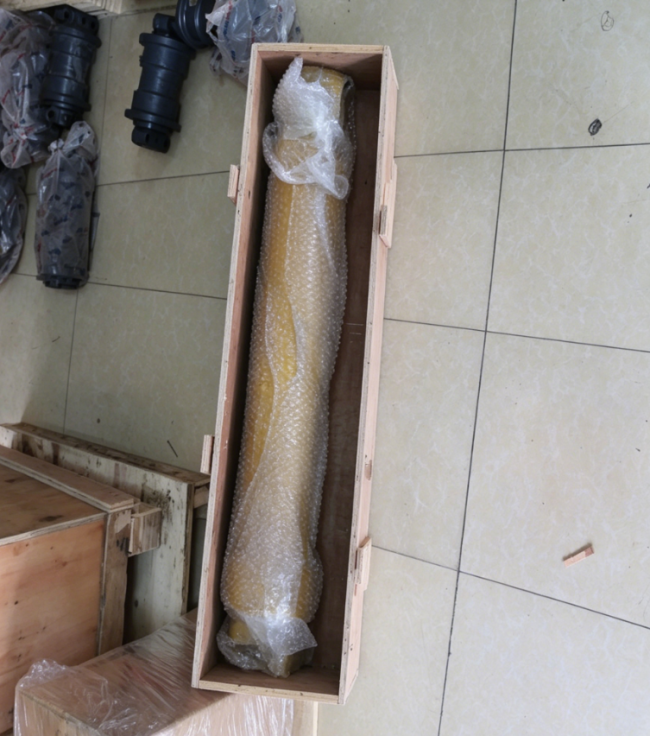

SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality
SK135SRLC-1E SK135SR-1E Hydraulic Bucket Cylinder for Kobelco Excavator Spare Parts YX01V00005F1 Aftermarket High Quality

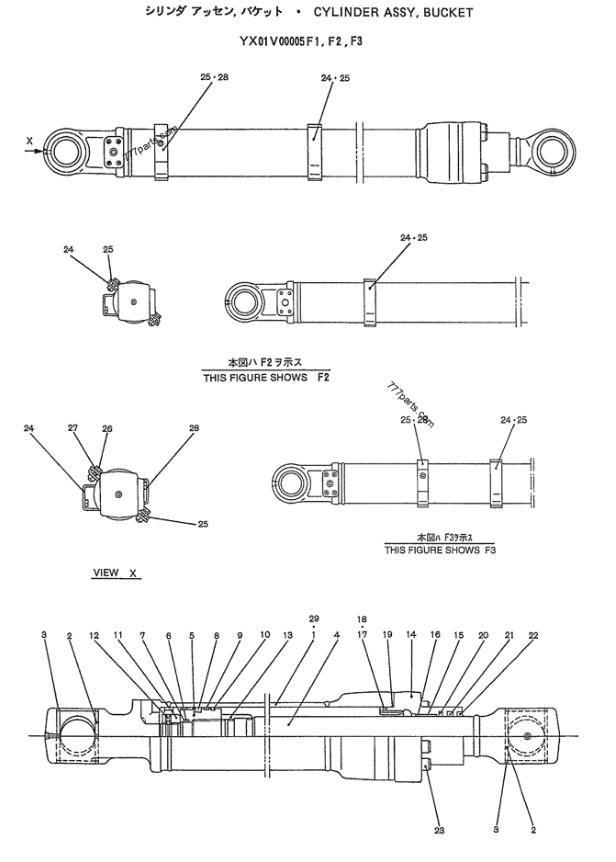

| # | Part No. | Description | Qty |
|---|---|---|---|
| . | YX01V00005R400 | TUBE; REPAIR KIT CONSISTS OF REF 1x1, 2x1, F1 AND F3 ONLY | 1 |
| . | YX01V00005R300 | REPAIR KIT; ALL (ROD+PISTON) CONSISTS OF REF 6x1, 7x2, 8x1, 9x2, 10x2, 17x1 | 1 |
| . | YX01V00005R100 | REPAIR KIT; ROD SIDE CONSISTS OF REF 17x1, 18x1, 19x1, 20x1, 21x1, 22x1 | 1 |
| . | YX01V00005R200 | REPAIR KIT; PISTON SIDE CONSISTS OF REF 6x1, 7x2, 8x1, 9x2 | 1 |
| . | YX01V00005F7C | CORE-HYD CYLINDER; Return Number | 1 |
| . | YX01V00005F3 | BUCKET CYLINDER | 1 |
| . | YX01V00005F7R | REMAN-HYD CYLINDER; SK135SRL ASN LK01-01001, SK135SRLC ASN YH00-00101 & ASN YH01-00101, Reman For New P/N YX01V00005F2 | 1 |
| . | YX01V00005F2 | CYLINDER ASSY.; BUCKET | 1 |
| . | YX01V00005F1 | BUCKET CYLINDER | 1 |
| . | YX01V00005R600 | TUBE; REPAIR KIT CONSISTS OF REF 2x1, 29x1, F2 ONLY | 1 |
| . | YX01V00005R500 | PISTON ROD; CONSISTS OF REF 2x1, 4x1 | 1 |
| 1 | ---- | NOT SOLD SEPARAT; TUBE, CYLINDER, F1 AND F3 ONLY | 1 |
| 2 | 2438U1097S2 | BUSHING | 2 |
| 3 | 2438U1097S29 | SEAL; DUST | 4 |
| 4 | ---- | NOT SOLD SEPARAT; ROD, PISTON | 1 |
| 5 | YW01V00003S029 | PISTON | 1 |
| 6 | YW01V00001S008 | O-RING | 1 |
| 7 | YW01V00001S009 | BACK-UP RING | 2 |
| 8 | YW01V00003S030 | SEAL; PISTON | 1 |
| 9 | YW01V00001S032 | RING | 2 |
| 10 | YW01V00001S012 | RING | 2 |
| 11 | YW01V00001S013 | NUT; PISTON | 1 |
| 12 | YN01V00001S014 | SCREW | 1 |
| 13 | YX01V00005S013 | RING; CUSHION | 1 |
| 14 | YX01V00005S014 | COVER | 1 |
| 15 | 2438U1097S18 | BUSHING | 1 |
| 16 | B38K0038E10 | CLIP | 1 |
| 17 | ZD12G09000 | O-RING,89.40mm ID x 95.60mm OD x 3.10mm; ID 89.40 ± 0.77 x OD 95mm | 1 |
| 18 | YW01V00001S020 | RING | 1 |
| 19 | ZD12G09500 | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro; O-Ring -- ID 94.40 ± 0.81 x OD 100mm | 1 |
| 20 | YW01V00001S022 | SEAL | 1 |
| 21 | 2438U897S18 | PACKING | 1 |
| 22 | 2438U908S27 | SEAL | 1 |
| 23 | ZS23C14065 | BOLT,Hex Socket Head, M14 x 65mm; M14x2.0x65mm | 8 |
| 24 | YW01V00003S024 | BRACKET; BAND | 1 |
| 25 | YW01V00003S025 | BRACKET; BAND F1 AND F3 ONLY | 2 |
| 26 | ZS16C10030 | CAPSCREW; SCREW M10x1.50x30mm, F1 AND F3 ONLY | 4 |
| 27 | ZW26X10000 | LOCK WASHER; ID 10 x OD 18 x Th 2.5mm, F1 AND F3 Only | 4 |
| 28 | YX01V00005S028 | BAND; F1 AND F3 ONLY | 1 |
| 29 | ---- | NOT SOLD SEPARAT; TUBE, CYLINDER, F2 ONLY | 1 |
What's Cylinder ?
1. Suitable for most of the excavator brands, such as Hyundai, Kobelco, and so on.
2. All the models have the bucket hydraulic cylinder, Arm hydraulic cylinder and Boom hydraulic cylinder
3. All the components are standard as OEM, strict quality control.
4. The selection of high quality hydraulic components.
5. Production of non-standard hydraulic cylinder according to customer request.
