SK75SR-3E Hydraulic Boom Cylinder for Kobelco Excavator Spare Parts YT01V00043F1 Aftermarket High Quality
SK75SR-3E Hydraulic Boom Cylinder for Kobelco Excavator Spare Parts YT01V00043F1 Aftermarket High Quality

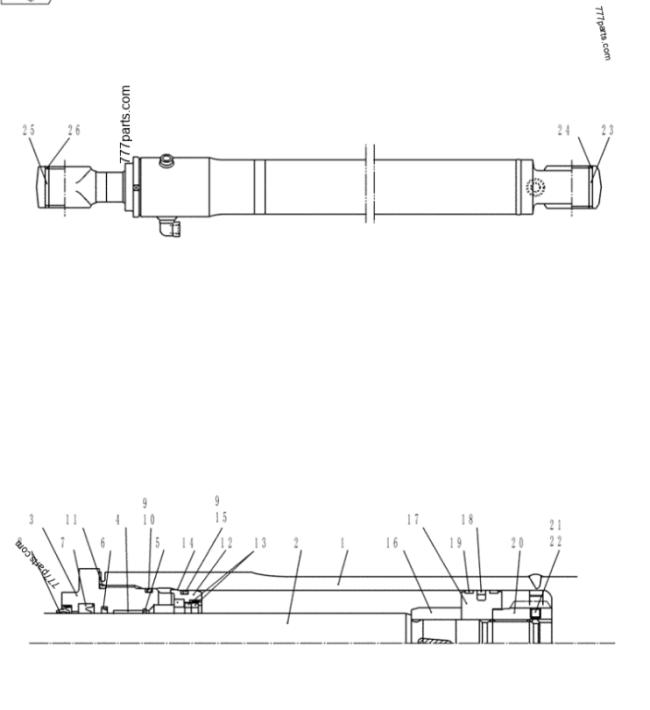

| # | Part No. | Description | Qty |
|---|---|---|---|
| . | YT01V00043F1 | HYDRAULIC CYLINDER; Assembly, Incl 1 - 26 | 1 |
| 1 | ---- | NOT SOLD SEPARAT; Tube Assy | 1 |
| 2 | ---- | NOT SOLD SEPARAT; Rod, Piston | 1 |
| 3 | YT01V00017S003 | CYLINDER HEAD | 1 |
| 4 | YT01V00017S004 | BUSHING | 1 |
| 5 | 2438U721S7 | SNAP RING | 1 |
| 6 | YT01V00017S006 | RING; Back Up | 1 |
| 7 | 2438U721S16 | RING; U | 1 |
| 8 | YT01V00001S009 | RING | 1 |
| 9 | ZD12G10500 | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | 2 |
| 10 | PY01V00036S008 | RING; Back Up | 1 |
| 11 | ZD11G11000 | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | 1 |
| 12 | YT01V00017S012 | HOLDER | 1 |
| 13 | YT01V00017S013 | REPAIR KIT | 2 |
| 14 | YT01V00017S014 | COLLAR | 1 |
| 15 | 2438U1949S12 | RING; Back Up | 1 |
| 16 | YT01V00017S016 | BEARING; Ring | 1 |
| 17 | YT01V00017S017 | PISTON | 1 |
| 18 | 2438U716S23 | SEAL; Ring | 1 |
| 19 | YM01V00019S018 | RING | 2 |
| 20 | YM01V00009S020 | NUT | 1 |
| 21 | 2438U999S21 | SET SCREW | 1 |
| 22 | 2436U330S16 | BALL | 1 |
| 23 | YT01V01001P2 | BUSHING | 2 |
| 24 | 2438U1946S25 | RING | 2 |
| 25 | YT01V01003P2 | BUSHING | 2 |
| 26 | LP01V00007S026 | RING; Wiper | 2 |
| 27 | YT01V00017R100 | SEAL; Incl 6(1), 7(1), 8(1), 10(1), 11(1), 15(1), 9(2), 13(2), Not Illustrated | 1 |
| 28 | YT01V00017R600 | SEAL KIT; Incl 18(1), 19(2), Not Illustrated | 1 |
| 29 | YT01V00030R300 | REPAIR KIT; Incl 6(1), 7(1), 8(1), 10(1), 11(1), 15(1), 18(1), 9(2), 13(2), 19(2), Not Illustrated | 1 |
| 30 | YT01V00034R400 | REPAIR KIT; Incl 1(1), 23(2), 24(2), Not Illustrated | 1 |
| 31 | YT01V00034R500 | ROD; Incl 2(1), 25(2), 26(2), Not Illustrated | 1 |
What's Cylinder ?
1. Suitable for most of the excavator brands, such as Hyundai, Kobelco, and so on.
2. All the models have the bucket hydraulic cylinder, Arm hydraulic cylinder and Boom hydraulic cylinder
3. All the components are standard as OEM, strict quality control.
4. The selection of high quality hydraulic components.
5. Production of non-standard hydraulic cylinder according to customer request.
