CX240 Hydraulic Boom Cylinder for CASE Excavator Spare Parts KBV1686 KBV1788 Aftermarket High Quality
CX240 Hydraulic Boom Cylinder for CASE Excavator Spare Parts KBV1686 KBV1788 Aftermarket High Quality

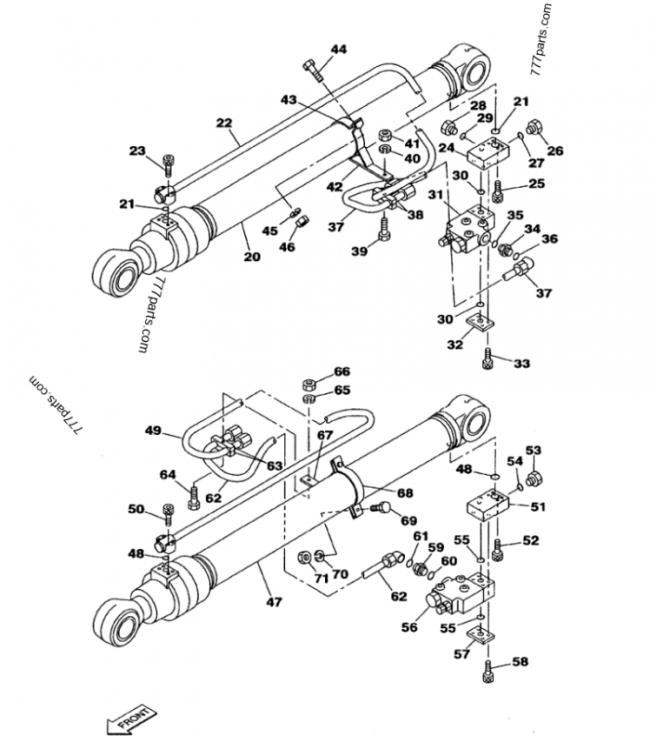

| # | Part No. | Description | Qty |
|---|---|---|---|
| 20 | KBV1686 | HYDRAULIC CYLINDER | 1 |
| ---- | Right | ||
| ---- | See Page(s) 08-163-00, 09-079-00 | ||
| 21 | 155210A1 | O-RING | 2 |
| 22 | KBV1884 | HYD TUBE,20.8 mm ID x 27.2 mm OD | 1 |
| 23 | 862-10060 | HEX SOC SCREW,M10 x 60mm, Cl 12.9; M10 x 60; 12.9 | 4 |
| 24 | KBV1859 | MANIFOLD | 1 |
| 25 | 108R010Y050R | BOLT; M10 x 50; 12.9 | 4 |
| 26 | 152924A1 | PLUG | 1 |
| ---- | Consists Of Ref. Number 27 | ||
| 27 | 154503A1 | O-RING | 1 |
| 28 | 153105A1 | PLUG | 1 |
| ---- | Consists Of Ref. Number 29 | ||
| 29 | 154475A1 | O-RING | 1 |
| 30 | 155211A1 | O-RING | 2 |
| 31 | KBV1857 | VALVE | 1 |
| ---- | See Page(s) 08-175-00 | ||
| 32 | 161955A1 | FLANGE | 1 |
| 33 | 862-12100 | HEX SOC SCREW,M12 x 100mm, Cl 12.9; M12 x 100; 12.9 | 4 |
| 34 | KHJ1804 | ELBOW | 1 |
| ---- | Consists Of Ref. Number 35 | ||
| 35 | 154503A1 | O-RING | 1 |
| 36 | KHJ1360 | O-RING,0.07" Thk x 0.739" ID | 1 |
| 37 | KBV1860 | TUBE ASSY.,20.8 mm ID x 27.2 mm OD | 1 |
| 38 | 161960A1 | COLLAR | 2 |
| 39 | 827-12070 | BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9 | 1 |
| 40 | 892-11012 | LOCK WASHER,M12 | 1 |
| 41 | 829-1412 | NUT,M12, Cl 10.9 | 1 |
| 42 | KBV1883 | MOUNTING CLIP | 1 |
| 43 | MFV5008 | CLAMP | 1 |
| 44 | 827-10040 | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | 2 |
| 45 | 892-11010 | LOCK WASHER,M10 | 2 |
| 46 | 829-1410 | NUT,M10 x 1.5, Cl 10.9 | 2 |
| 47 | KBV1686 | HYDRAULIC CYLINDER | 1 |
| ---- | Left | ||
| ---- | See Page(s) 08-163-00, 09-079-00 | ||
| 48 | 155210A1 | O-RING | 2 |
| 49 | KBV1885 | HYD TUBE,20.8 mm ID x 27.2 mm OD | 1 |
| 50 | 862-10060 | HEX SOC SCREW,M10 x 60mm, Cl 12.9; M10 x 60; 12.9 | 4 |
| 51 | KBV1859 | MANIFOLD | 1 |
| 52 | 108R010Y050R | BOLT; M10 x 50; 12.9 | 4 |
| 53 | 152924A1 | PLUG | 1 |
| ---- | Consists Of Ref. Number 54 | ||
| 54 | 154503A1 | O-RING | 1 |
| 55 | 155211A1 | O-RING | 2 |
| 56 | KBV1857 | VALVE | 1 |
| ---- | See Page(s) 08-175-00 | ||
| 57 | 161955A1 | FLANGE | 1 |
| 58 | 862-12100 | HEX SOC SCREW,M12 x 100mm, Cl 12.9; M12 x 100; 12.9 | 4 |
| 59 | KHJ1804 | ELBOW | 1 |
| ---- | Consists Of Ref. Number 60 | ||
| 60 | 154503A1 | O-RING | 1 |
| 61 | KHJ1360 | O-RING,0.07" Thk x 0.739" ID | 1 |
| 62 | KBV1861 | TUBE ASSY.,20.8 mm ID x 27.2 mm OD | 1 |
| 63 | 161960A1 | COLLAR | 2 |
| 64 | 827-12070 | BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9 | 1 |
| 65 | 892-11012 | LOCK WASHER,M12 | 1 |
| 66 | 829-1412 | NUT,M12, Cl 10.9 | 1 |
| 67 | KBV1883 | MOUNTING CLIP | 1 |
| 68 | MFV5008 | CLAMP | 1 |
| 69 | 827-10040 | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | 2 |
| 70 | 892-11010 | LOCK WASHER,M10 | 2 |
| 71 | 829-1410 | NUT,M10 x 1.5, Cl 10.9 | 2 |
What's Cylinder ?
1. Suitable for most of the excavator brands, such as Hyundai, Kobelco, and so on.
2. All the models have the bucket hydraulic cylinder, Arm hydraulic cylinder and Boom hydraulic cylinder
3. All the components are standard as OEM, strict quality control.
4. The selection of high quality hydraulic components.
5. Production of non-standard hydraulic cylinder according to customer request.
