Excavator R250-7 Track Drive R250LC-7 Travel Motor Assy Final Drive
Excavator R250-7 Track Drive R250LC-7 Travel Motor Assy Final Drive
Product description
| Product Name: | R250LC-7 Final drive |
| Model Number: | R250LC-7 |
| Part NO. | / |
| Apply for | R250LC-7 R250-7 |
| Warranty: | 3 months |
| MOQ(Minimum Order Quantity:) | 1 Piece |
| Condition: | New |
| Availability: | Stock |
| Supply Ability: | 500pcs per month |
| Port: | Huangpu |
| Delivery Methods: | Express: DHL Fedex EMS UPS or by Air/ Sea |
| Payment Methods: | TT,Western Union, Paypal , trade assurance |
| Place of Origin: | China (Mainland) |
| Size | available in all sizes or as customer's drawings |

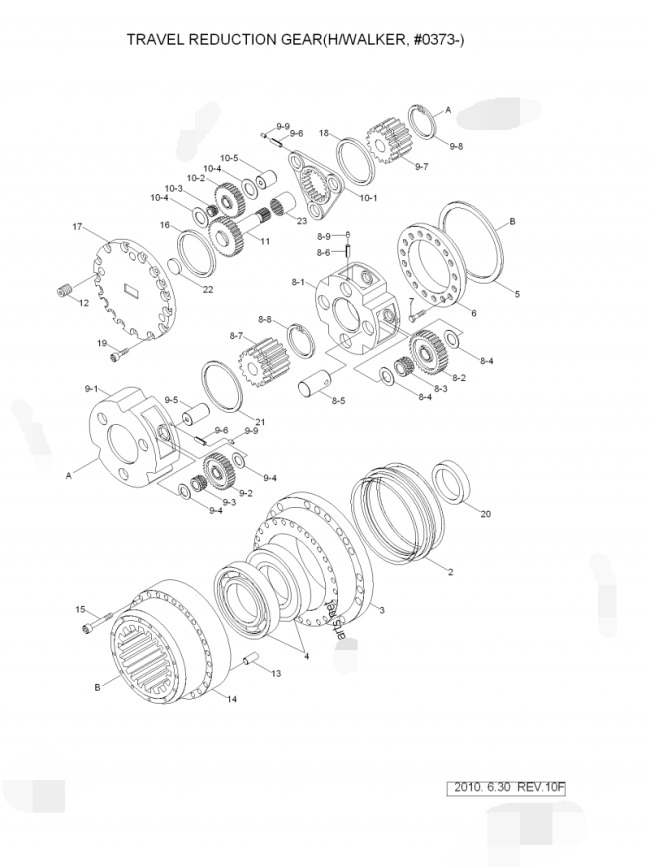

TRAVEL REDUCTION GEAR(H/WALKER, #0373-)
CRAWLER EXCAVATOR Hyundai R250LC-7
R250LC-7 / HYDRAULIC COMPONENT / TRAVEL REDUCTION GEAR(H/WALKER, #0373-)
TRAVEL REDUCTION GEAR(H/WALKER, #0373-)
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| *-2 | 31N8-40070 | T/REDUCTION GEAR | 1 | |
| *-2 | 31N8-40071 | T/REDUCTION GEAR | 1 | |
| *-2 | 31N8-40071BG | T/REDUCTION GEAR | 1 | |
| *-2 | 31N8-40072 | T/REDUCTION GEAR | 1 | |
| 2 | XKAQ-00173 | SEAL-FLOATING | 1 | |
| 3 | XKAQ-00174 | HOUSING | 1 | |
| 4 | XKAQ-00175 | BEARING-ANGULAR | 2 | |
| 4 | XKAQ-00175-AS | BEARING-ANGULAR FOR AS ONLY |
2 | |
| 5 | XKAQ-00176 | SHIM | 1 | |
| 6 | XKAQ-00177 | RETAINER | 1 | |
| 7 | XKAQ-00178 | BOLT-WRENCH | 17 | |
| 8 | XKAQ-00179 | CARRIER ASSY-NO.3 | 1 | |
| 8 | XKAQ-00398 | CARRIER ASSY-NO.3 | 1 | |
| 8-1 | XKAQ-00180 | CARRIER-NO.3 | 1 | |
| 8-1 | XKAQ-00396 | CARRIER-NO.3 | 1 | |
| 8-2 | XKAQ-00181 | GEAR-PLANETARY NO.3 | 4 | |
| 8-2 | XKAQ-00389 | GEAR-PLANETARY NO.3 | 4 | |
| 8-3 | XKAQ-00182 | NEEDLE-NO.3 | 72 | |
| 8-3 | XKAQ-00390 | NEEDLE-NO.3 | 72 | |
| 8-4 | XKAQ-00183 | WASHER-THRUST NO.3 | 8 | |
| 8-4 | XKAQ-00391 | WASHER-THRUST NO.3 | 8 | |
| 8-5 | XKAQ-00184 | PIN-NO.3 | 4 | |
| 8-6 | XKAQ-00185 | PIN-SPRING NO.3 | 4 | |
| 8-7 | XKAQ-00186 | GEAR-SUN NO.3 | 1 | |
| 8-8 | XKAQ-00187 | RING-SNAP NO.3 | 1 | |
| 8-9 | XKAQ-00651 | PIN-SPRING NO.3-1 | 4 | |
| 9 | XKAQ-00188 | CARRIER ASSY-NO.2 | 1 | |
| 9 | XKAQ-00399 | CARRIER ASSY-NO.2 | 1 | |
| 9-1 | XKAQ-00189 | CARRIER-NO.2 | 1 | |
| 9-1 | XKAQ-00397 | CARRIER-NO.2 | 1 | |
| 9-2 | XKAQ-00190 | GEAR-PLANETARY NO.2 | 3 | |
| 9-2 | XKAQ-00392 | GEAR-PLANETERY NO.2 | 3 | |
| 9-3 | XKAQ-00191 | NEEDLE-NO.2 | 45 | |
| 9-3 | XKAQ-00393 | NEEDLE-NO.2 | 45 | |
| 9-4 | XKAQ-00192 | WASHER-THRUST NO.2 | 6 | |
| 9-4 | XKAQ-00394 | WASHER-THRUST NO.2 | 6 | |
| 9-5 | XKAQ-00193 | PIN-NO.2 | 3 | |
| 9-6 | XKAQ-00194 | PIN-SPRING NO.2 | 6 | |
| 9-7 | XKAQ-00195 | GEAR-SUN NO.2 | 1 | |
| 9-8 | XKAQ-00196 | RING-SNAP NO.2 | 1 | |
| 9-9 | XKAQ-00650 | PIN-SRPING NO.2-1 | 6 | |
| 10 | XKAQ-00197 | CARRIER ASSY-NO.1 | 1 | |
| 10 | XKAQ-00400 | CARRIER ASSY-NO.1 | 1 | |
| 10-1 | XKAQ-00198 | CARRIER-NO.1 | 1 | |
| 10-2 | XKAQ-00199 | PLANETARY GEAR-NO.1 | 3 | |
| 10-3 | XKAQ-00200 | BEARING-NEEDLE | 3 | |
| 10-4 | XKAQ-00201 | WASHER-THRUST NO.1 | 6 | |
| 10-4 | XKAQ-00395 | WASHER-THRUST NO.1 | 6 | |
| 10-5 | XKAQ-00202 | PIN-NO.1 | 3 | |
| 11 | XKAQ-00203 | GEAR-SUN NO.1 | 1 | |
| 12 | XKAQ-00204 | PLUG | 3 | |
| 13 | XKAQ-00205 | PIN-LOCK | 4 | |
| 14 | XKAQ-00206 | GEAR-RING | 1 | |
| 14 | XKAQ-00762 | GEAR-RING | 1 | |
| 15 | XKAQ-00207 | BOLT-WRENCH | 24 | |
| 16 | XKAQ-00208 | RING-THRUST 1 | 1 | |
| 17 | XKAQ-00209 | COVER | 1 | |
| 18 | XKAQ-00210 | RING-THRUST NO.2 | AR | |
| 19 | XKAQ-00211 | BOLT-WRENCH | 16 | |
| 20 | XKAQ-00212 | MOTOR-RING | 1 | |
| 21 | XKAQ-00213 | RING-THRUST NO.3 | 1 | |
| 22 | XKAQ-00214 | PAD | 1 | |
| 23 | XKAQ-00215 | COUPLING | 1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | 1 |
Our advantage
· Excavator spare parts in full-scale are available;
· 100% quality assurance, develop and manufacture follow original ones;
· Quick response within 24 hours ;
· Small order allowed;
· Reasonable stock and timely delivery;
· Original packing, neutral packing or customized packing;
· Positive customer feedback from abroad market;
· Excellent After-sales service.
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company.
Q: How long is your delivery time?
A: Generally it is about 5 days if the goods are in stock, or it is about 60 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A:We can accept payment by T/T and L / C, depending on the circumstances.
Q: How can I be sure the part will fit my excavator?
A:You only need to provide us with part number or tell us the name of the parts you need. We will help you to search for or find alternative parts.
