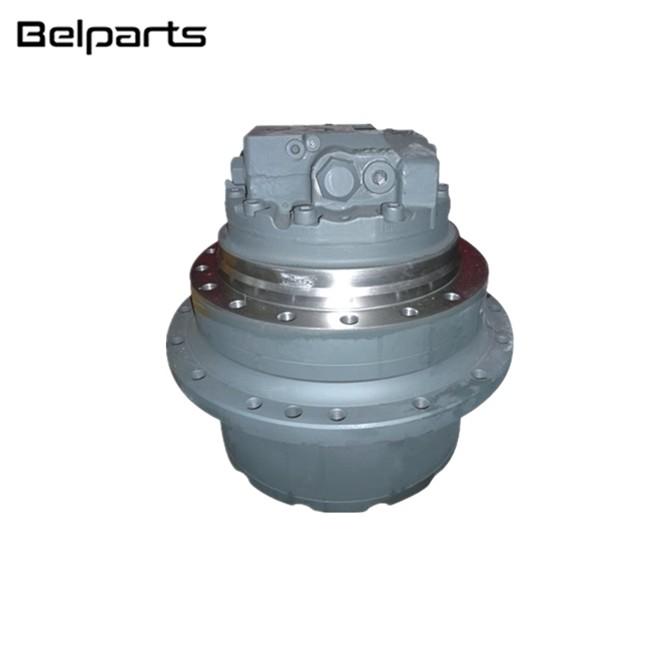

Hitachi ZX200LC Travel Motor Assy HMT36FA 9195447 ZX200 Final Drive Assy
Hitachi ZX200LC Travel Device Motor HMT36FA 9195447 ZX200 Final Drive Assy
| Appliion | Excavator |
| Part name | Travel Motor |
| Material | Steel |
| Model | ZX200 HMT36FA |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term |
T/T&Western Union &Paypal |
| Delivery Time | Within 2 days after receiving the payment |
| Packing | Standard shipping package |
Similiar models:
HMGB08DA
HMGB085A
HMGE09AA
HMGE19CA-(006-003978)HMK068-2UA-021481/MP-ZX120-9180466012113
MAG-85VP-2600E-1 4447928
MAG-85VP-2600E-1 HCMEF100J00005780
9213445 9213322
HMGF36(HMV116) HMGF40EA010-029131 9234034
HMT36FA
HMGF40EA
HMGF36MA (HMV116)
HMGF-10HE
9261222
HMGF36(HMV117)
HMGF36(HMV118)
HMGF40BA/HMCF40CA MFG 005-004654
HMGF44AA(MFG006-001977)
HMGF44BA(MFG011-027048)
HMGF36MA
HCMBFM00022805 9256989
HMGF36(HMV116)/9256990
9213431
HMGF57AA(HMV145)
HMGF68DA(007-00L693)
9232360
HMGF68DA(007-003901) 9281921 9244944
HMGF68EA 007-004619
MSF-340VP-EL2
4637796 9203565
MSF-340VP-FL1 HMGF84
9251680 HMGF1700A KYB-B044096038

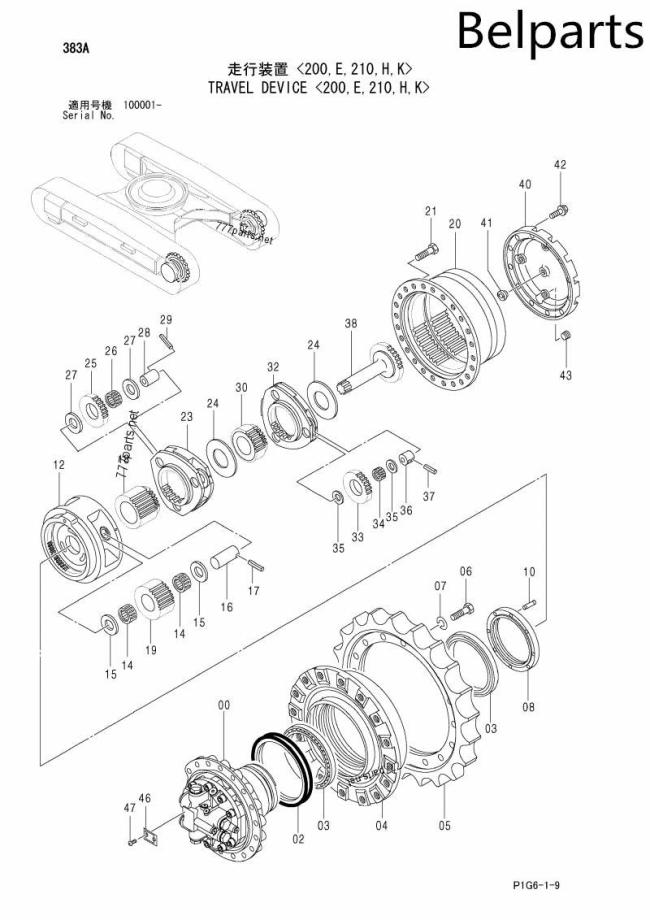

Schemes of the spare part 9195447 TRAVEL DEVICE
Models comprising the spare part 9195447 TRAVEL DEVICE
EXCAVATOR
ZAXIS200; ZAXIS200-E; ZAXIS200LC; ZAXIS200LC-E; ZAXIS210H; ZAXIS210LCH; ZAXIS210K; ZAXIS210LCK; ZAXIS200-X; ZAXIS200LC-X; ZAXIS210;ZAXIS210LC; ZAXIS210N; ZAXIS240;
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9170996 | TRAVEL DEVICE | 2 | ||
| 9233687 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9195447 | TRAVEL DEVICE | 2 | ||
| 9233688 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9168003 | . MOTOR; OIL | 1 | |
| 00 | 9234034 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195451 | . MOTOR; OIL | 1 | |
| 00 | 9237802 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 4114753 | . SEAL; GROUP | 1 | |
| 02 | 4634693 | . SEAL; GROUP | 1 | |
| 03 | 4246793 | . BRG.; ROL. | 2 | |
| 04 | 1025833 | . DRUM | 1 | |
| 05 | 1018740 | . SPROCKET | 1 | |
| 06 | J932055 | . BOLT | 16 | |
| 07 | A590920 | . WASHER; SPRING | 16 | |
| 08 | 3086531 | . NUT | 1 | |
| 10 | 4436242 | . PIN; KNOCK | 1 | |
| 12 | 1025875 | . CARRIER | 1 | |
| 14 | 4438593 | . BRG.; NEEDLE | 6 | |
| 15 | 4284521 | . PLATE; THRUST | 6 | |
| 16 | 4315838 | . PIN | 3 | |
| 17 | 4116309 | . PIN; SPRING | 3 | |
| 18 | 3082156 | . GEAR; SUN | 1 | |
| 19 | 3084353 | . GEAR; PLANETARY | 3 | |
| 20 | 1025787 | . GEAR; RING | 1 | |
| 21 | J931640 | . BOLT | 24 | |
| 23 | 2042432 | . CARRIER | 1 | |
| 24 | 4401293 | . SPACER | 2 | |
| 25 | 3082155 | . GEAR; PLANETARY | 3 | |
| 26 | 4438592 | . BRG.; NEEDLE | 3 | |
| 27 | 4192982 | . PLATE; THRUST | 6 | |
| 28 | 4402086 | . PIN | 3 | |
| 29 | 4192020 | . PIN; SPRING | 3 | |
| 30 | 3082149 | . GEAR; SUN | 1 | |
| 32 | 1025826 | . CARRIER | 1 | |
| 33 | 3082148 | . GEAR; PLANETARY | 3 | |
| 34 | 4387383 | . BRG.; NEEDLE | 3 | |
| 35 | 4192910 | . PLATE; THRUST | 6 | |
| 36 | 4210853 | . PIN | 3 | |
| 37 | 4173093 | . PIN; SPRING | 3 | |
| 38 | 2042351 | . SHAFT; PROP. | 1 | |
| 38 | 2049585 | . SHAFT; PROP. | 1 | |
| 40 | 2034833 | . COVER | 1 | |
| 41 | 4285323 | . PIN; STOPPER | 1 | |
| 41 | 4478346 | . PIN; STOPPER | 1 | |
| 42 | J011230 | . BOLT; SEMS | 12 | |
| 42 | 4609016 | . BOLT; SEMS | 12 | |
| 43 | 4245797 | . PLUG | 3 | |
| 46 | 3053559 | . NAME-PLATE | 1 | |
| 47 | M492564 | . SCREW; DRIVE |
