Hitachi ZX330 ZX330-1 Travel Motor Assy 9190296 9213431 9195488 9231673
Price:
Negotiated price
MOQ:
1PCS
Delivery Time:
2-5days
Brand:
Belparts
Product Description
Hitachi ZX330 ZX330-1 FINAL DRIVE TRAVEL MOTOR ASSY 9190296 9213431 9195488 9231673
Supply Ability
Supply Ability: 500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details: Standard shipping package
Port: Huangpu
Lead Time
| Quantity(Pieces) | 1 - 1 | >1 |
| Est. Time(days) | 2 | To be negotiated |
Hitachi ZX330 ZX330-1 FINAL DRIVE TRAVEL MOTOR ASSY
|
PRODUCT DESCRIPTION
|
|||
|
Model: ZX330
|
egory: Travel Motor
|
||
|
Part no: 9190296 9213431 9195488 9231673
|
Place of Origin: Japan
|
||
|
Condition: Original New
|
Warranty: 12 months
|
||
|
MOQ: 1 pcs
|
Production Capacity: 1000pcs /Month
|
||
|
Standard or Nonstandard: Standard
|
Payment Term: L/C,T/T, Western Union, Tradeassurance
|
||
|
Delivery Time: 1-3 days (depend on order)
|
Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS
|
||
|
Guarantee: We will check the cylinder head and send detail pictures to buyer to confirm before shipping.
|
|||

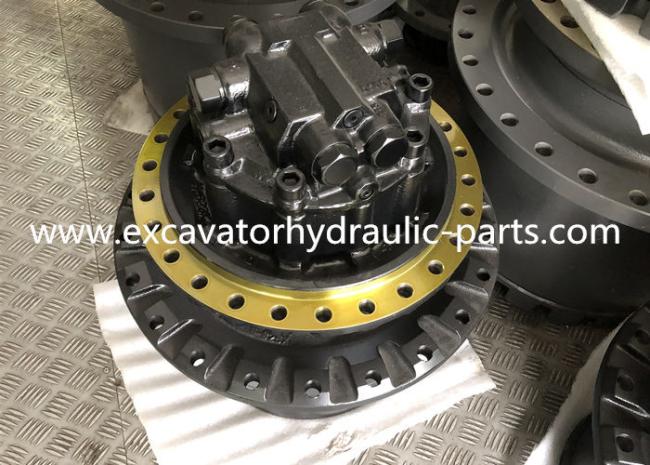

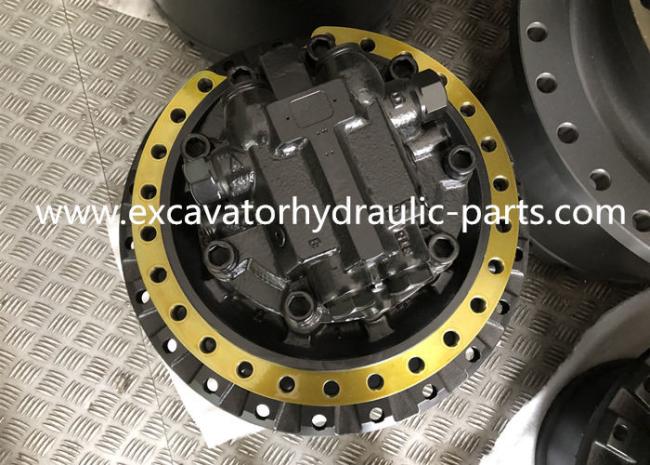

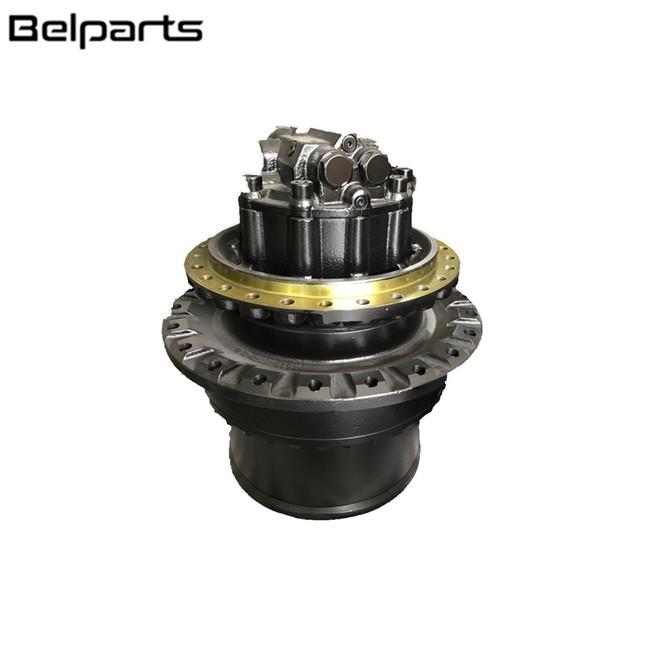

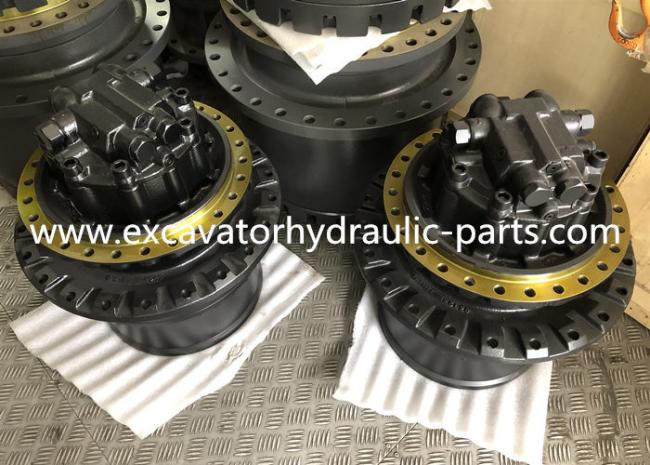

Detailed picture of Hitachi ZX330 ZX330-1 FINAL DRIVE TRAVEL MOTOR ASSY

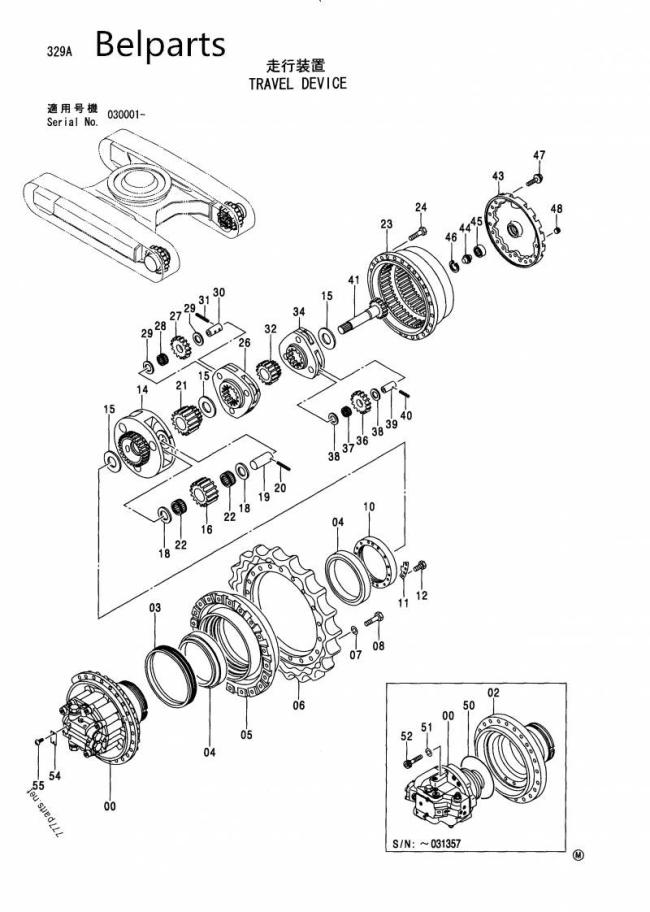

Schemes of the spare part 9195488 . MOTOR; OIL
Models comprising the spare part 9195488 . MOTOR; OIL
EXCAVATOR
ZAXIS330; ZAXIS330LC; ZAXIS350H; ZAXIS370; ZAXIS370MTH; ZAXIS350LC; ZAXIS350LCN; ZAXIS350LCH; ZAXIS350K; ZAXIS350LCK;
Aggregates comprising the spare part 9195488 . MOTOR; OIL
| Model | Section node |
|---|---|
| ZAXIS330LC | UNDERCARRIAGE / TRAVEL DEVICE |
| ZAXIS330 | UNDERCARRIAGE / TRAVEL DEVICE SERIAL NO. STD, NA, EU1, EU3:030001- EU2, EU4:200001- |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9190221 | TRAVEL DEVICE | 2 | ||
| 9212584 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9190222 | TRAVEL DEVICE | 2 | ||
| 9232360 | TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9190296 | . MOTOR; OIL | 1 | |
| 00 | 9213431 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195488 | . MOTOR; OIL | 1 | |
| 00 | 9231673 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 1022194 | . HOUSING | 1 | |
| 03 | 4066695 | . SEAL; GROUP | 1 | |
| 04 | 4192975 | . BRG.; ROL. | 2 | |
| 05 | 1022179 | . DRUM | 1 | |
| 06 | 1022168 | . SPROCKET | 1 | |
| 07 | A590920 | . WASHER; SPRING | 20 | |
| 08 | J932060 | . BOLT | 20 | |
| 10 | 3036256 | . NUT | 1 | |
| 10 | 3094717 | . NUT | 1 | |
| 11 | 4192974 | . PLATE; LOCK | 1 | |
| 11 | 4470326 | . PLATE; LOCK | 1 | |
| 12 | J901222 | . BOLT | 2 | |
| 12 | J901225 | . BOLT | 2 | |
| 14 | 1022198 | . CARRIER | 1 | |
| 15 | 4401293 | . SPACER | 3 | |
| 16 | 3075003 | . GEAR; PLANETARY | 3 | |
| 18 | 4269470 | . PLATE; THRUST | 6 | |
| 19 | 4269452 | . PIN | 3 | |
| 20 | 4192021 | . PIN; SPRING | 3 | |
| 21 | 3075005 | . GEAR; SUN | 1 | |
| 22 | 4455088 | . BRG.; NEEDLE | 6 | |
| 23 | 1022195 | . GEAR; RING | 1 | |
| 24 | J931640 | . BOLT | 28 | |
| 26 | 1022197 | . CARRIER | 1 | |
| 27 | 3075002 | . GEAR; PLANETARY | 3 | |
| 28 | 4455099 | . BRG.; NEEDLE | 3 | |
| 29 | 4284521 | . PLATE; THRUST | 6 | |
| 30 | 4269451 | . PIN | 3 | |
| 31 | 4197763 | . PIN; SPRING | 3 | |
| 32 | 3074989 | . GEAR; SUN | 1 | |
| 34 | 1022196 | . CARRIER | 1 | |
| 36 | 3075001 | . GEAR; PLANETARY | 3 | |
| 37 | 4455098 | . BRG.; NEEDLE | 3 | |
| 38 | 4284520 | . PLATE; THRUST | 6 | |
| 39 | 4269472 | . PIN | 3 | |
| 40 | 4192020 | . PIN; SPRING | 3 | |
| 41 | 2038915 | . SHAFT; PROP. | 1 | |
| 41 | 2048000 | . SHAFT; PROP. | 1 | |
| 43 | 2045031 | . COVER | 1 | |
| 44 | 4277474 | . PIN; STOPPER | 1 | |
| 45 | 4278168 | . BRG.; BALL | 1 | |
| 46 | 930451 | . RING; RETAINING | 1 | |
| 47 | J011230 | . BOLT; SEMS | 16 | |
| 47 | 4609016 | . BOLT; SEMS | 16 | |
| 48 | 4245797 | . PLUG | 3 | |
| 50 | 4269473 | . O-RING | 1 | |
| 51 | 4287213 | . WASHER; SPRING | 4 | |
| 52 | M341885 | . BOLT; SOCKET | 4 | |
| 54 | 3053559 | . NAME-PLATE | 1 | |
| 55 | M492564 | . SCREW; DRIVE | 2 |
