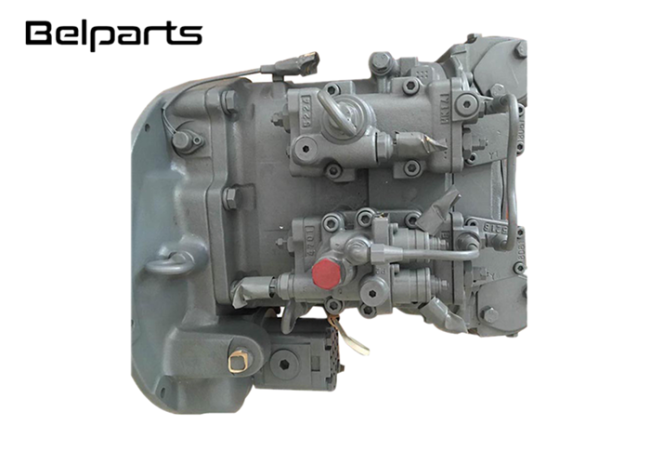

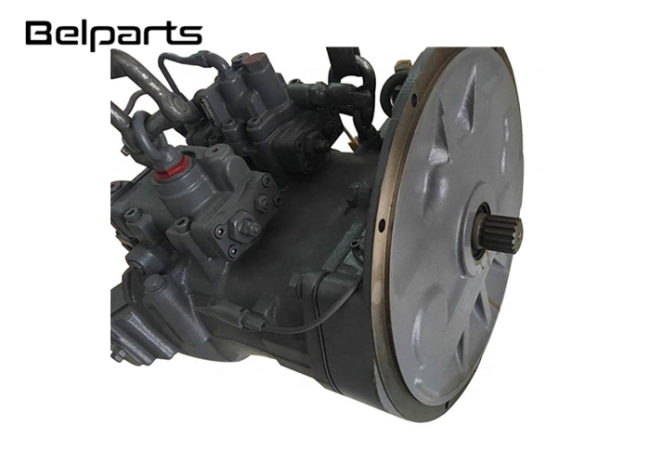

Excavator Hydraulic Piston Pump Hydraulic Main Pump For Excavator Hitachi ZAX200-3G
Belparts High Quality Excavator hydraulic piston pump hydraulic main pump for excavator Hitachi ZAX200-3G
Product parameter
| Product name |
Belparts High Quality Excavator hydraulic piston pump hydraulic main pump for excavator ZAX200-3G
|
| Place of Origin: |
China(mainland)
|
| Model: |
ZAX200-3G
|
| Part number: |
/
|
| MOQ: |
1 PCS
|
| Payment term: |
T/T & Western Union & Paypal
|
| Delivery time: |
Within 2 days after receiving the payment
|
| Packing: |
Standard exporting packing or as required
|

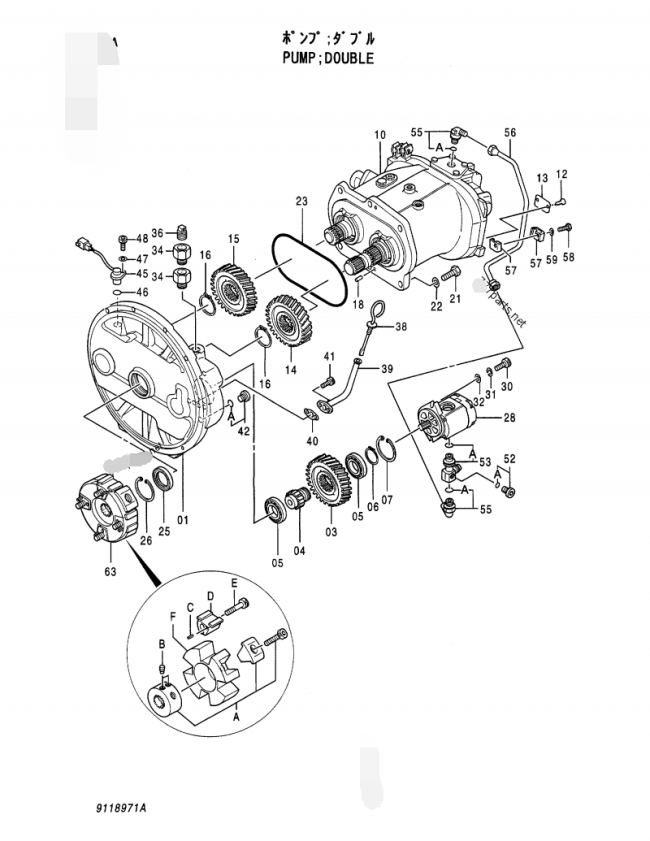

List of spare parts
|
# |
Part No |
Part Name |
Qty. |
Price request |
|---|---|---|---|---|
|
|
9118971 |
PUMP; DOUBLE |
1 |
|
|
|
(9133006) |
PUMP; DOUBLE |
|
|
|
01 |
1018749 |
. CASING; GEAR |
|
|
|
03 |
3063840 |
. GEAR; PILOT |
|
|
|
04 |
3055594 |
. SHAFT; GEAR |
|
|
|
05 |
958740 |
. BRG.; BALL |
|
|
|
06 |
962002 |
. RING; RETAINING |
|
|
|
07 |
991725 |
. RING; RETAINING |
|
|
|
10 |
|
. PUMP; UNIT |
1 |
|
|
12 |
M492564 |
. SCREW; DRIVE |
2 |
|
|
13 |
3069408 |
. NAME-PLATE |
1 |
|
|
14 |
3063842 |
. GEAR |
1 |
|
|
15 |
3063843 |
. GEAR |
1 |
|
|
16 |
4274552 |
. RING; RETAINING |
|
|
|
18 |
4099290 |
. PIN; SPRING |
|
|
|
21 |
M211645 |
. BOLT |
|
|
|
22 |
A590916 |
. WASHER; SPRING |
6 |
|
|
23 |
4317619 |
. O-RING |
1 |
|
|
25 |
4310055 |
. SEAL; OIL |
1 |
|
|
26 |
991725 |
. RING; RETAINING |
1 |
|
|
28 |
4276918 |
. PUMP; GEAR |
1 |
|
|
30 |
M341028 |
. BOLT; SOCKET |
2 |
|
|
31 |
984054 |
. WASHER; SPRING |
2 |
|
|
32 |
4114402 |
. WASHER |
2 |
|
|
34 |
4317633 |
. ADAPTER |
2 |
|
|
36 |
4234782 |
. PLUG |
1 |
|
|
38 |
4242263 |
. GAUGE; LEVEL |
|
|
|
38 |
4340855 |
. GAUGE; LEVEL |
1 |
|
|
39 |
9736788 |
. PIPE |
1 |
|
|
40 |
4243160 |
. PACKING |
1 |
|
|
41 |
M340816 |
. BOLT; SOCKET |
2 |
|
|
42 |
9134111 |
. PLUG |
1 |
|
|
42A |
4509180 |
.. O-RING |
1 |
|
|
45 |
4265372 |
. SENSOR; REVOL. |
1 |
|
|
46 |
4306888 |
. O-RING |
1 |
|
|
47 |
A590106 |
. WASHER; PLANE |
1 |
|
|
48 |
M340616 |
. BOLT; SOCKET |
1 |
|
|
52 |
9134110 |
. PLUG |
1 |
|
|
52A |
957366 |
.. O-RING |
1 |
|
|
53 |
4278547 |
. ADAPTER |
1 |
|
|
53A |
4506418 |
.. O-RING |
1 |
|
|
55 |
4179837 |
. FITTING; PIPE |
2 |
|
|
55A |
957366 |
.. O-RING |
1 |
|
|
56 |
3063845 |
. PIPE |
1 |
|
|
57 |
9736515 |
. CLAMP |
2 |
|
|
58 |
J900830 |
. BOLT |
1 |
|
|
59 |
A590908 |
. WASHER; SPRING |
1 |
|
|
63 |
4310056 |
. COUPLING |
1 |
|
|
63A |
4340960 |
.. HUB |
1 |
|
|
63B |
4334899 |
.. SCREW; SET |
2 |
|
|
63C |
4101345 |
.. PIN; SPRING |
4 |
|
|
63D |
4334892 |
.. INSERT |
4 |
|
|
63E |
4334894 |
.. BOLT; SOCKET |
4 |
|
|
63F |
4334891 |
.. ELEMENT |
1 |
|
Our advantages
1. One year warranty from delivery
2. Free components for replacement within warranty period
3. Professional solution provider
4. Free technical support at any time
5. Customer training is available.
6. On-site installation and commissioning is available.
FAQ
1.If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2.What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3.How can I pay the order?
We can receive payment through T/T, Western Union, Paypal(for small amount), trade assurance.
