Excavator Planetary Gear Parts SA7117-30290 KEC150 EC160B EC210 EC140 2nd Sun Gear
Price:
Negotiated price
MOQ:
Negotiable
Delivery Time:
Within 2-3 working days
Brand:
Belparts
Product Description
Excavator Planetary Gear Parts SA7117-30290 KEC150 EC160B EC210 EC140 2nd Sun Gear
Product description:
| Appliion | Excavator |
| Part name | 2nd sun gear |
| Gearbox | Travel |
| Part number | SA7117-30290 |
| Excavator model | KEC150 EC160B EC210 EC140 |
| Quality | Aftermarket |
| Warranty | 3 months |
| MOQ | 1 pieces |

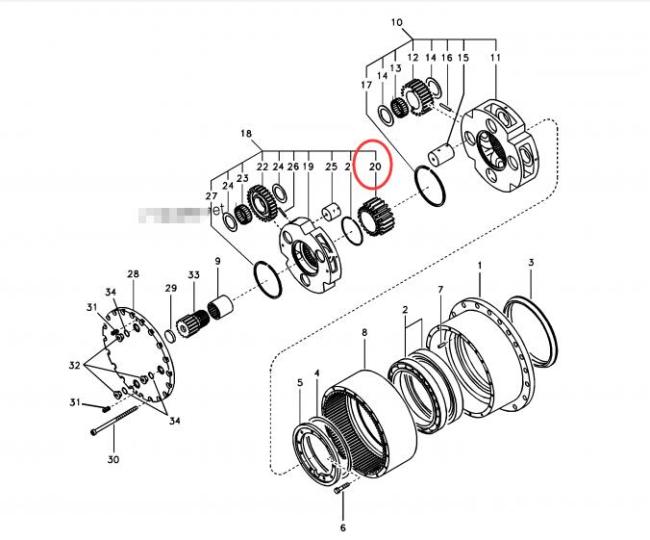

List of spare parts
| # | Part No | Part Name | Qty. | |
|---|---|---|---|---|
| 8277784 | ||||
| VOE 14528733 | Travel Gearbox | 1 | ||
| 1 | SA 7117-30100 | Housing SER NO 10001-14677SER NO 30001-30780 more |
1 | |
| VOE 14522475 | Housing SER NO 14678-SER NO 30781- more |
1 | ||
| 2 | SA 7117-30110 | Bearing | 2 | |
| 3 | SA 7117-30120 | Seal SER NO 10001-14677SER NO 30001-30780 more |
1 | |
| VOE 14528713 | Seal SER NO 14678-SER NO 30781- more |
1 | ||
| 4 | SA 7117-30140 | Shim 0,1 Thick more |
1 | |
| SA 7117-30150 | Shim 0,9 Thick more |
1 | ||
| SA 7117-30160 | Shim 1,0 Thick more |
1 | ||
| SA 7117-30170 | Shim 1,2 Thick more |
1 | ||
| 5 | SA 7117-30130 | Retainer | 1 | |
| 6 | VOE 978932 | Screw more | 12 | |
| 7 | SA 9324-21212 | Pin | 2 | |
| 8 | SA 7117-30190 | Gear | 1 | |
| 9 | SA 7117-30180 | Coupling | 1 | |
| 10 | SA 7117-30200 | Carrier SER NO 10001-14677SER NO 30001-30780 more |
1 | |
| VOE 14528723 | Carrier SER NO 14678-SER NO 30781- more |
1 | ||
| 11 | SA 7117-30210 | Carrier | 1 | |
| 12 | SA 7117-30240 | Planetary Gear | 4 | |
| 13 | SA 7117-30230 | Needle Bearing | 8 | |
| 14 | SA 7117-30220 | Washer | 8 | |
| 15 | SA 7117-30250 | Pin SER NO 10001-14677SER NO 30001-30780 more |
4 | |
| VOE 14528724 | Pin SER NO 14678-SER NO 30781- more |
4 | ||
| 16 | SA 9325-06012 | Spring Pin | 4 | |
| 17 | SA 7117-30260 | Ring | 1 | |
| 18 | SA 7117-30270 | Carrier SER NO 10001-14677SER NO 30001-30780 more |
1 | |
| VOE 14528727 | Carrier SER NO 14678-SER NO 30781- more |
1 | ||
| 19 | SA 7117-30280 | Carrier SER NO 10001-14677SER NO 30001-30780 more |
1 | |
| VOE 14528728 | Carrier SER NO 14678-SER NO 30781- more |
1 | ||
| 20 | SA 7117-30290 | Gear | 1 | |
| 21 | SA 7117-30300 | Ring | 1 | |
| 22 | SA 7117-30340 | Planetary Gear | 3 | |
| 23 | SA 7117-30320 | Needle Bearing | 3 | |
| 24 | SA 7117-30310 | Washer | 6 | |
| 25 | SA 7117-30360 | Pin | 3 | |
| 26 | SA 9325-04010 | Spring Pin | 3 | |
| 27 | SA 7117-30260 | Ring | 1 | |
| 28 | SA 7117-30350 | Cover SER NO 10001-10177 more |
1 | |
| VOE 14517929 | Cover SER NO 10178-SER NO 30001- more |
1 | ||
| 29 | SA 7117-15230 | Pad | 1 | |
| 30 | SA 7117-30370 | Bolt | 20 | |
| 31 | SA 9023-11004 | Set Screw more | 2 | |
| 32 | SA 9415-43042 | Plug SER NO 10001-10177 more |
3 | |
| SA 9415-11052 | Plug SER NO 10178-SER NO 30001- more |
3 | ||
| 33 | SA 7117-30330 | Gear | 1 | |
| 34 | SA 9511-12024 | O-ring SER NO 10178-SER NO 30001- more |
3 | |
| 100 | VOE 14526220 | Reduction | 1 |
