EC300D EC350D K5V200DTP Excavator Hydraulic Pump Assy VOE 14625693 Main Pump
EC300D EC350D K5V200DTP EXCAVATOR HYDRAULIC PUMP ASSY VOE 14625693 MAIN PUMP
Product Description
VOE14625693 Hydraulic pump .Heavy parts EC480D EC300D Hydraulic
EC480D EC300D
-

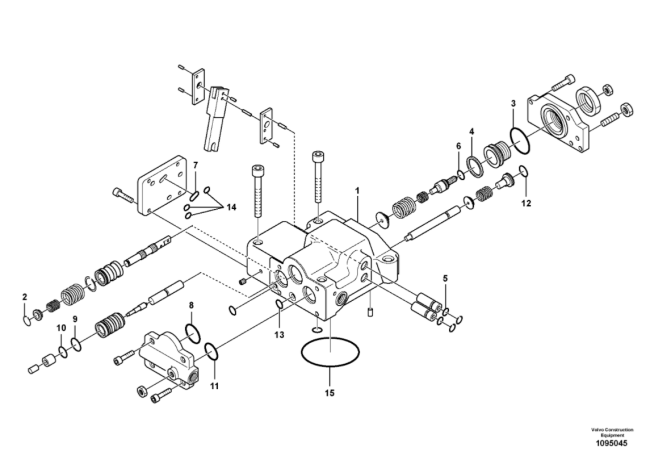

Regulator, hydraulic pump
-
Hydraulic pump
-
Pump installation

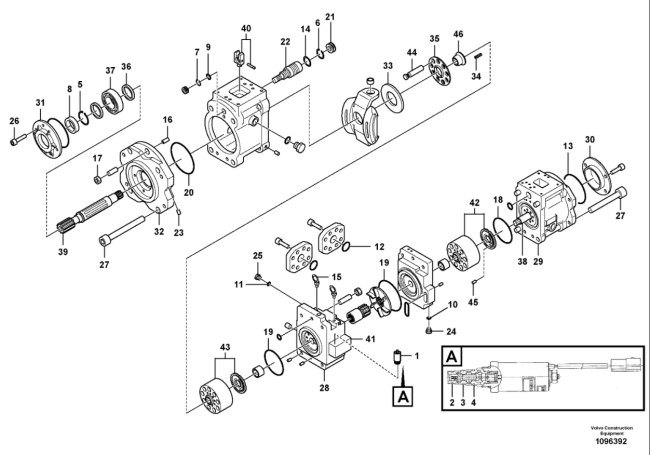

Parts on group Hydraulic pump:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
|
VOE14625693 |
[1] |
Hydraulic pump |
|
|
|
1. |
VOE14574269 |
[2] |
Valve |
|
|
2. |
VOE990546 |
[1] |
O-ring |
|
|
3. |
VOE990738 |
[1] |
O-ring |
|
|
4. |
VOE990547 |
[1] |
O-ring |
|
|
|
VOE14596393 |
[1] |
Seal |
|
|
5. |
VOE914470 |
[2] |
Snap ring |
|
|
6. |
VOE14692340 |
[2] |
Ring |
|
|
7. |
VOE14692341 |
[2] |
Ring |
|
|
8. |
VOE14600699 |
[1] |
Seal |
|
|
9. |
VOE14692343 |
[2] |
O-ring |
|
|
10. |
VOE14533606 |
[4] |
O-ring |
|
|
11. |
VOE14533604 |
[12] |
O-ring |
|
|
12. |
VOE14533618 |
[1] |
O-ring |
|
|
13. |
VOE14533617 |
[2] |
O-ring |
|
|
14. |
SA7223-00690 |
[2] |
O-ring |
|
|
15. |
VOE14735328 |
[2] |
Eye bolt |
|
|
16. |
VOE14729945 |
[4] |
Spring pin |
|
|
17. |
VOE14737981 |
[4] |
Nut |
|
|
18. |
VOE14574556 |
[4] |
O-ring |
|
|
19. |
VOE14533035 |
[2] |
O-ring |
|
|
20. |
VOE14615353 |
[2] |
O-ring |
|
|
21. |
SA7223-00420 |
[2] |
Stop |
|
|
22. |
VOE14536033 |
[2] |
Piston |
|
|
23. |
VOE14622108 |
[27] |
Plug |
|
|
24. |
VOE14701586 |
[2] |
Plug |
|
|
25. |
VOE14577795 |
[12] |
Plug |
|
|
26. |
VOE14729962 |
[8] |
Screw |
|
|
27. |
VOE14730972 |
[8] |
Hexagon screw |
|
|
28. |
VOE14723572 |
[1] |
Valve block |
|
|
29. |
VOE14723221 |
[2] |
Casing |
|
|
30. |
VOE14512544 |
[1] |
Cover |
|
|
31. |
VOE14692368 |
[1] |
Cover |
|
|
32. |
VOE14723564 |
[2] |
Support |
|
|
33. |
SA7223-00210 |
[2] |
Plate |
|
|
34. |
SA7223-00180 |
[18] |
Spring |
|
|
35. |
VOE14536027 |
[2] |
Plate |
|
|
36. |
SA7223-00060 |
[3] |
Spacer |
|
|
37. |
VOE14511980 |
[2] |
Bearing |
|
|
38. |
VOE14511978 |
[1] |
Shaft |
|
|
39. |
VOE14596495 |
[1] |
Shaft |
|
|
40. |
VOE14536023 |
[2] |
Pin |
|
|
41. |
VOE14727839 |
[1] |
Valve |
|
|
42. |
VOE14563795 |
[1] |
Cylinder |
|
|
43. |
VOE14563796 |
[1] |
Cylinder |
|
|
44. |
VOE14594327 |
[2] |
Piston |
|
|
45. |
VOE14551525 |
[2] |
Pin |
|
|
46. |
VOE14510070 |
[2] |
Bushing |
|
|
|
VOE14748140 |
[1] |
Sealing kit |
|
