Belparts Hydraulic Parts ZX450-3 ZX470-3 ZX500-3 Excavator 4637796 Travel Motor Final Device
ZX450-3 ZX470-3 ZX500-3 Excavator 4637796 Travel Motor Hydraulic Parts
Description
| Product name |
Belparts ZX450-3 ZX470-3 ZX500-3 ZX520-3 Travel Motor
|
| Place of Origin: |
China(Mainland)
|
| Model: |
ZX450-3 ZX470-3 ZX500-3
|
| Part number: |
4637796
|
| MOQ: |
1 PCS
|
| Payment term: |
T/T & Trade Assurance & Paypal
|
| Delivery time: |
Within 2 days after receiving the payment
|
| Packing: | Standard exporting packing or as required |

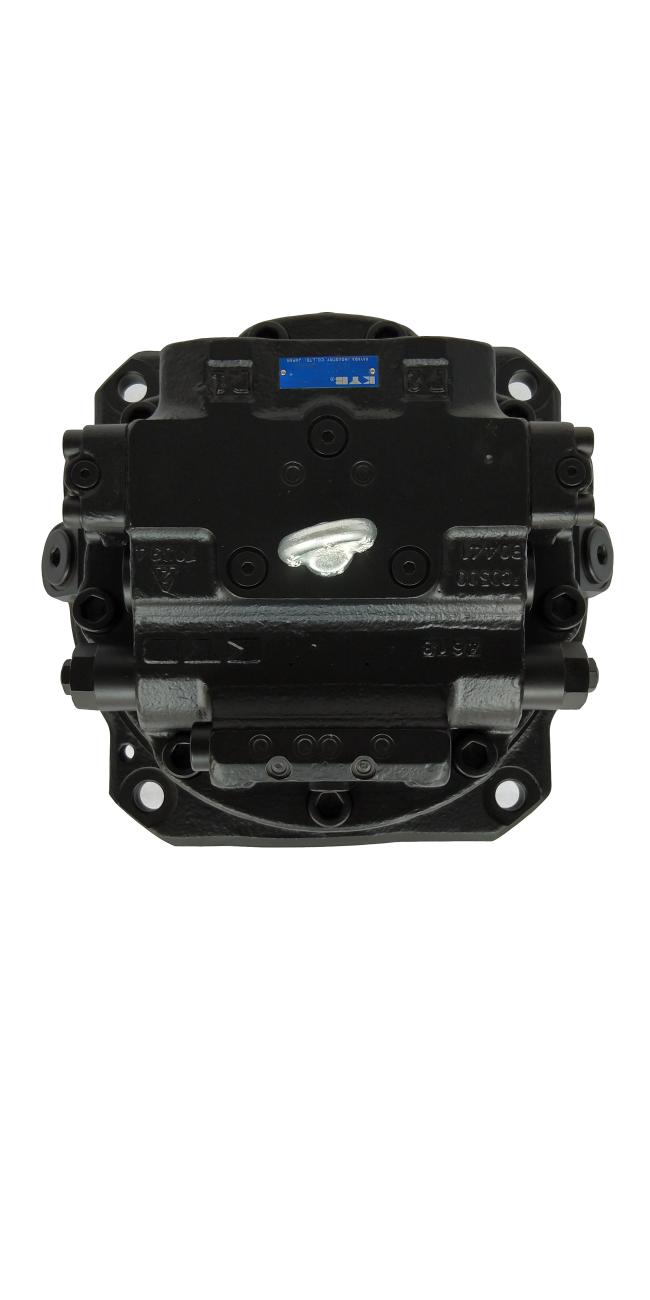

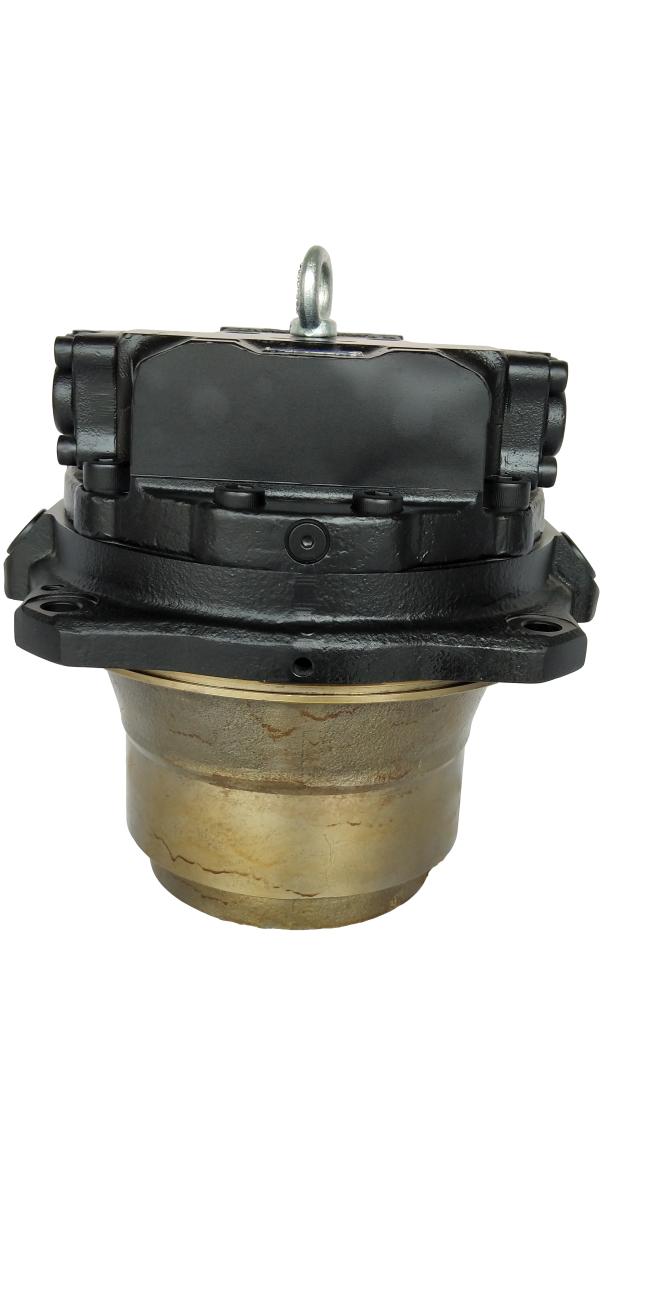

ZX450-3 ZX470-3 ZX500-3 4637796 Travel Motor
ZX450-3 ZX470-3 ZX500-3 4637796 Travel Motor

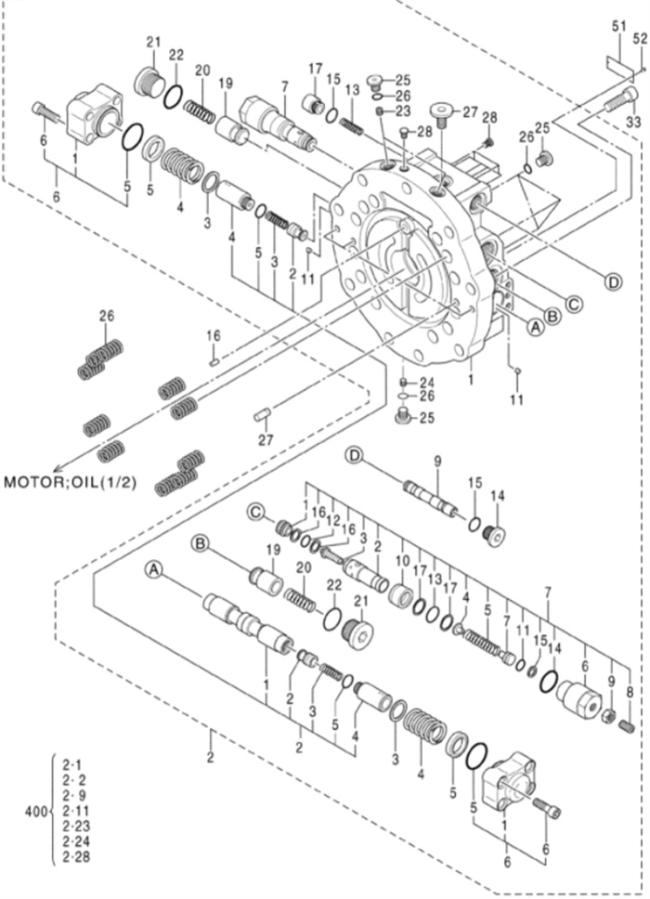

Parts on group Motor
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4637796 | [1] | MOTOR;OIL (2/2) | This PART NO. consists of all parts shown in MOTOR;OIL(1/2) to (2/2). | |
| 2. | +++++++ | [1] | PLATE ASS'Y | |
| 2･1. | +++++++ | [1] | PLATE | |
| 2･2. | +++++++ | [1] | SPOOL ASS'Y | |
| 2･2･1. | +++++++ | [1] | SPOOL | |
| 2･2･2. | +++++++ | [2] | VALVE;CHECK | |
| 2･2･3. | +++++++ | [2] | SPRING | |
| 2･2･4. | +++++++ | [2] | PLUG | |
| 2･2･5. | +++++++ | [2] | O-RING | |
| 2･3. | 0163601 | [2] | SEAT;SPRING | |
| 2･4. | 0420002 | [2] | SPRING | |
| 2･5. | 0809601 | [2] | SEAT;SPRING | |
| 2･6. | 0979101 | [2] | CAP;ASS'Y | |
| 2･6･1. | +++++++ | [1] | CAP | |
| 2･6･5. | +++++++ | [1] | O-RING | |
| 2･6･6. | +++++++ | [4] | BOLT;SOCKET | |
| 2･7. | 0806602 | [2] | VALVE;RELIEF | |
| 2･7･1. | +++++++ | [1] | SEAT | |
| 2･7･2. | +++++++ | [1] | HOUSING;RELIEF | |
| 2･7･3. | +++++++ | [1] | POPPET | |
| 2･7･4. | +++++++ | [1] | SEAT;SPRING | |
| 2･7･5. | +++++++ | [1] | SPRING | |
| 2･7･6. | +++++++ | [1] | PLUG | |
| 2･7･7. | +++++++ | [1] | GUIDE;SPRING | |
| 2･7･8. | +++++++ | [1] | SCREW;SET | |
| 2･7･9. | +++++++ | [1] | NUT;LOCK | |
| 2･7･10. | +++++++ | [1] | PISTON | |
| 2･7･11. | +++++++ | [1] | O-RING | |
| 2･7･12. | +++++++ | [1] | O-RING | |
| 2･7･13. | +++++++ | [1] | O-RING | |
| 2･7･14. | +++++++ | [1] | O-RING | |
| 2･7･15. | +++++++ | [1] | RING;BACK-UP | |
| 2･7･16. | +++++++ | [2] | RING;BACK-UP | |
| 2･7･17. | +++++++ | [2] | RING;BACK-UP | |
| 2･9. | +++++++ | [1] | SPOOL | |
| 2･11. | +++++++ | [2] | ORIFICE | |
| 2･13. | 0820203 | [1] | SPRING | |
| 2･14. | 0671002 | [1] | PLUG | |
| 2･15. | 4506418 | [2] | O-RING | |
| 2･17. | 0820204 | [1] | PLUG | |
| 2･19. | 0352304 | [2] | VALVE;CHECK | |
| 2･20. | 0352305 | [2] | SPRING | |
| 2･21. | 0352306 | [2] | PLUG | |
| 2･22. | 4506429 | [2] | O-RING | |
| 2･23. | +++++++ | [2] | ORIFICE | |
| 2･24. | +++++++ | [1] | ORIFICE | |
| 2･25. | 0436608 | [6] | PLUG | |
| 2･26. | 957366 | [6] | O-RING | |
| 2･27. | +++++++ | [1] | PLUG | |
| 2･28. | +++++++ | [7] | PLUG | |
| 16. | 0682803 | [1] | PIN | |
| 26. | 0809604 | [10] | SPRING | |
| 27. | 0251319 | [4] | PIN | |
| 33. | 0168008 | [9] | BOLT;SOCKET | |
| 51. | +++++++ | [1] | NAME-PLATE | |
| 52. | +++++++ | [2] | SCREW;DRIVE | |
| 400. | 0979103 | [1] | PLATE;ASS'Y | |
| +++++++ | [1] | KIT;SEAL | NOTE) The KIT;SEAL of this system is indied at ｢MOTOR;OIL(1/2)｣. |
