Travel Gearbox 2nd Carrier Washer Planetary Gear Parts E330C E336D 7Y-0595
Travel Gearbox 2nd Carrier Washer Planetary Gear Parts E330C E336D 7Y-0595
Description
| Appliion | Excavator |
| Part name | Travel Gearbox 2nd Carrier |
| Model | E |
| Model | E330C E336D |
| MOQ | 1PC |
| Warranty | 3 months |
| Part number | 7Y-0595 |
| Delivery Time | Within 2 days after receiving the payment |

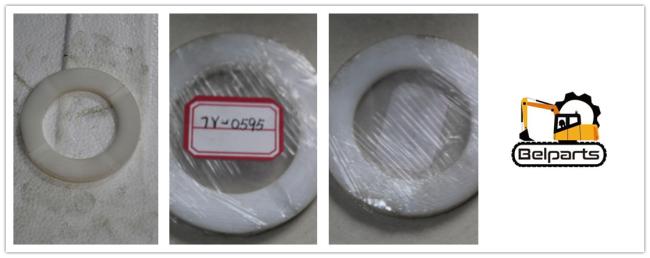

Pictures

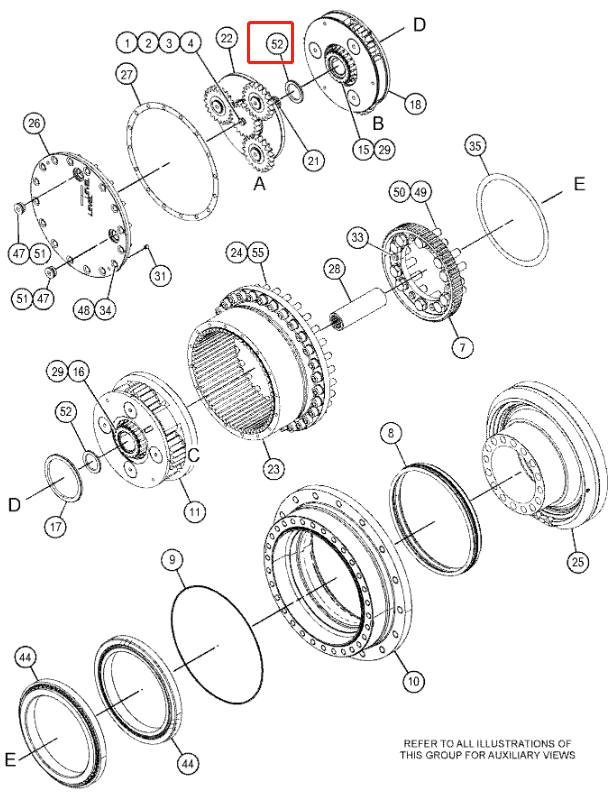

List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 094-0577 | [1] | PLATE (7-MM THK) | |
| 2. | 094-0578 | [1] | PLATE (8-MM THK) | |
| 3. | 094-0579 | [1] | PLATE (9-MM THK) | |
| 4. | 094-0580 | [1] | PLATE (10-MM THK) | |
| 5. | 136-2898 | [14] | WASHER (58.3X89X1-MM THK) | |
| 6. | 191-2690 | [6] | WASHER (42.3X70X1-MM THK) | |
| 7. | 227-6192 | [1] | GEAR-COUPLING | |
| 8. | 255-2272 | [1] | SEAL GP-DUO-CONE | |
| 205-9114 | [2] | RING-TORIC | ||
| 9. | 295-9234 | [1] | SEAL-O-RING | |
| 10. | 296-6181 | [1] | HOUSING | |
| 11. | 296-6183 | [1] | CARRIER-PLANETARY | |
| 12. | 296-6184 | [4] | GEAR-PLANETARY (21-TEETH) | |
| 13. | 296-6185 | [4] | SHAFT | |
| 14. | 296-6186 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 15. | 296-6189 | [1] | GEAR-SUN (20-TEETH) | |
| 16. | 296-6190 | [1] | GEAR-SUN (20-TEETH) | |
| 17. | 296-6192 | [1] | SPACER (143X170X8-MM THK) | |
| 18. | 296-6194 | [1] | CARRIER-PLANETARY | |
| 19. | 296-6195 | [3] | SHAFT | |
| 20. | 296-6230 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 21. | 296-6231 | [1] | GEAR-SUN (20-TEETH) | |
| 22. | 296-6232 | [1] | CARRIER AS | |
| 23. | 296-6311 | [1] | GEAR-RING (64-TEETH) | |
| 24. | 451-2176 | [30] | WASHER-HARD (22X35X3.5-MM THK) | |
| 25. | 452-3518 | [1] | HOUSING-MOTOR | |
| 26. | 470-7587 | [1] | COVER | |
| 27. | 501-7237 | [1] | GASKET | |
| 28. | 507-8035 | [1] | COUPLING | |
| 29. | 093-1731 | [2] | RING-RETAINING | |
| 30. | 095-0891 | [7] | PIN-SPRING | |
| 31. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 32. | 096-8058 | [3] | RING-RETAINING | |
| 33. | 114-1541 | [6] | PIN-DOWEL | |
| 34. | 143-0811 M | [16] | BOLT (12X1.75X35-MM) | |
| 35. | 267-6809 B | [1] | SHIM (0.75-MM THK) | |
| 267-6810 B | [1] | SHIM (0.85-MM THK) | ||
| 267-6811 B | [1] | SHIM (0.9-MM THK) | ||
| 267-6812 B | [1] | SHIM (0.95-MM THK) | ||
| 267-6813 B | [1] | SHIM (1.2-MM THK) | ||
| 267-6814 B | [1] | SHIM (1.4-MM THK) | ||
| 267-6815 B | [1] | SHIM (1.8-MM THK) | ||
| 267-6816 B | [1] | SHIM (2-MM THK) | ||
| 267-6817 B | [1] | SHIM (2.3-MM THK) | ||
| 7Y-1056 B | [1] | SHIM (0.8-MM THK) | ||
| 7Y-1057 B | [1] | SHIM (1-MM THK) | ||
| 44. | 279-0344 | [2] | BEARING AS-TAPERED ROLLER | |
| 45. | 296-6247 | [11] | BEARING AS-ROLLER | |
| 46. | 296-6248 | [3] | BEARING AS-ROLLER | |
| 47. | 3E-2338 | [2] | PLUG-PIPE | |
| 48. | 5P-8245 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 49. | 6V-8133 M | [10] | BOLT (M24X3X80-MM) | |
| 50. | 6V-8237 | [10] | WASHER (26X44X4-MM THK) | |
| 51. | 7M-8485 | [2] | SEAL-O-RING | |
| 52. | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) | |
| 55. | 7Y-5217 M | [30] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
