Kobelco SK210-8 Swing Gearbox Pump Casing Planetary Gear Parts YN32W00022F2
Kobelco SK210-8 Swing Gearbox Pump Casing Planetary Gear Parts YN32W00022F2
| Appliion | Crawler Excavator |
| Part name | Swing gearbox Pump casing |
| Part No. | YN32W00022F2 |
| MOQ | 1PCS |
| Condition | New |
| Machine Model | SK210-8 |
| Delivery | By sea by air by express |
| Warranty | 3 months |

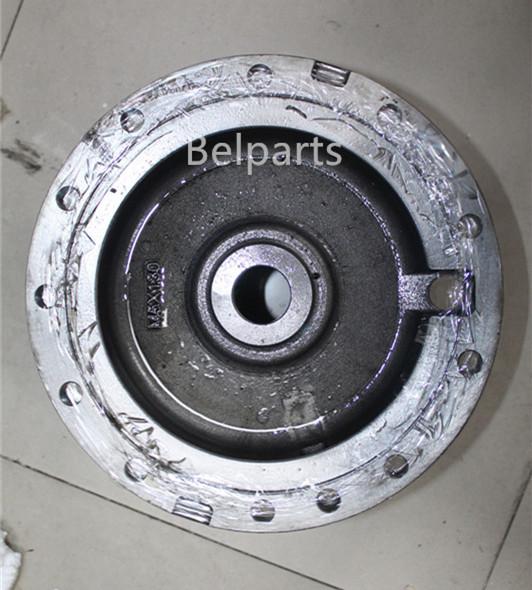

Picture about our product

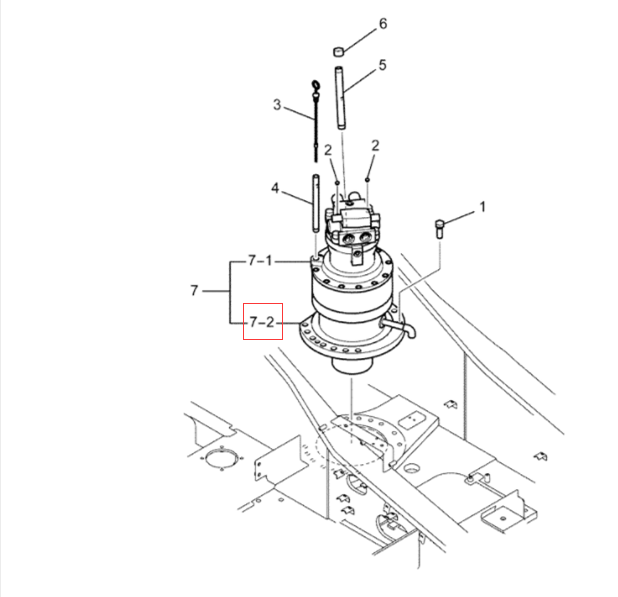

Number on alog scheme: 7-2
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ZS13C20055 | [13] | SCREW | KOB Screw -- M20x2.50x55mm |
| 2. | YN64H01391D1 | [2] | CAP | KOB 10.0mm Slotted Plastic |
| 3. | YN32W01101D1 | [1] | LEVEL GAUGE | SM 385.5mm Long (15-11/64 in) |
| 4. | YN32W01114D1 | [1] | RIGID TUBE | SM 262mm Long (10-5/16 in) |
| 5. | YN32W01122D1 | [1] | RIGID TUBE | SM |
| 6. | ZE91T12000 | [1] | PLUG | SM Cap, 3/4" PT |
| 7. | YN15V00036F3 | [1] | MOTOR,129.2CC | KOB Swing Hydraulic Motor Assembly Superseded by part number: YN15V00069F1 |
| 7-1. | YN15V00035F1 | [1] | HYDRAULIC MOTOR | SM Assembly - See Fig. 07-001[01] Superseded by part number: YN15V00055F1 |
| 7-2. | YN32W00022F2 | [1] | GEAR REDUCTION UNIT | KOB Swing Gear Reduction Unit - See Fig. 07-002[00] |
About our company

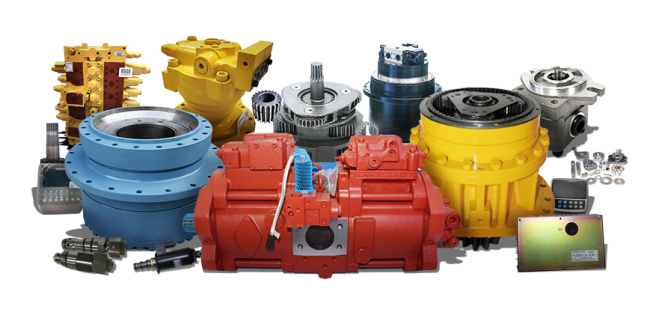

About our products
Our main products are Excavator Hydraulic spare parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality.
FAQ
1.I only know the excavator model, but I can't provide the part number. What should I do?
If possible, you can send us old photos, nameplates or dimensions for reference.
2.When can I get the goods after I place the order?
Once your payment is confirmed, we will arrange the goods within 24 hours. If there is no stock, we will inform you before placing the order.
3.What if there is something wrong with the goods?
First of all, I have confidence in the quality of our products. If you really find problems, please provide us with old photos. After confirmation, please return it to us and we will provide the correct items.
4.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
