Excavator Parts Travel Motor 325C 328D 330C 2716376 Final Drive Walking Motor

Name: Excavator Parts Travel Motor 325C 328D 330C 2716376 Final Drive Walking Motor
Brand: GZ Yuexiang Engineering Machinery Co., Ltd.

Price Negotiable

Price: Negotiable Price

MOQ: 1pcs

Delivery Time: 2-3 days

Brand: Belparts

Product Description

Excavator Parts Travel Motor 325C 328D 330C 2716376 Final Drive Walking Motor

Part name	Excavator Travel Motor
Part number	271-3676
Model No	325C; 328D LCR; 330C; 330C L; 330C LN; 330D; 330D L; 330D LN 336D; 330D MH; 336D L; 336D LN
MOQ	1PC
Payment	L/C, T/T, Paypal, Trade Assurance
Shipment	By sea; By air; By express or as required
Packing Detail	Wooden packing box/As per customer's requirement
Warranty:	12 months

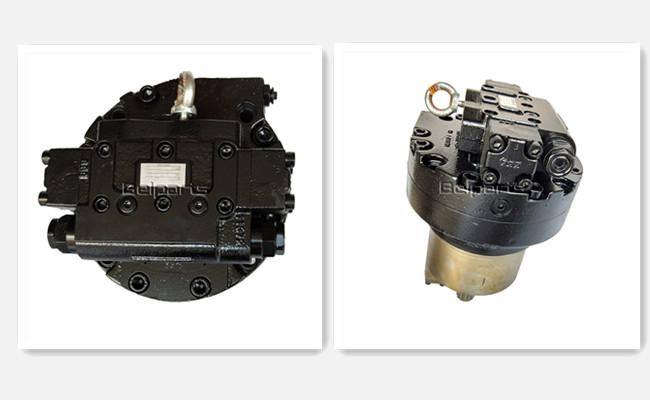

Product Display

List of spare parts

#	Part No	Part Name	Qty.
1	1T0936	PLUG (PIPE) (1/16-27 THD)	1
2	4B4158	SCREW (IDENTIFIION PLATE) MOUNTING	4
3	6V3382	SEAL-LIP TYPE	1
4	8J2559	PLATE-CAUTION (OIL FILL)	1
5	0874786	ADAPTER	1
6	1086503	PISTON AS	9
7	1184057	SPRING	9
8	1241541	PIN	2
9	1241561	SPRING (BRAKE)	20
10	1373708	RETAINER	1
11	1673855	SHAFT	1
12	1673857	KEY	1
13	1673858	KEY	1
14	1673859	PLATE-CAM	1
15	1673862	PLATE-RETAINER	1
16	1673863	BALL	1
17	1673865	PLATE-SEPARATOR	5
18	1673866	PLATE-FRICTION	4
19	1673867	PLATE-PORT	1
20	1673868	PISTON-BRAKE	1
21	1673872	SPOOL	1
22	1701612	SEAL	2
23	1701626	RING-BACKUP	1
24	1701627	RING-BACKUP	1
25	1734063	BARREL AS-MOTOR	1
26	1734066	SPACER (63.05X79.8X7-MM THK)	1
27	1757436	VALVE	1
28	1757887	DOWEL	2
29	1806769	BEARING AS	1
30	1806770	BEARING AS	1
31	1865175	PLUG	1
32	1893189	RING-SEAL	1
33	1937901	BODY AS	1
34	1964987	PISTON-ACTUATOR	1
35	2716377	HEAD AS	1
36	2744512	SEAT	1
37	2744513	RETAINER	2
38	0951572	SEAL - O-RING (4.80 MM ID)	2
39	0951585	SEAL- -O-RING (17.80 MM ID)	1
40	0951596	SEAL-O-RING (ID=28.70mm)	1
41	0951700	SEAL - O-RING (34.40 MM ID)	2
42	0957380	SPRING	1
44	0963978	SPRING	1
45	0965919	RING (5.00MM ID)	2
46	0997030	RING-BACKUP	1
47	1701616	SEAL	1
48	2D6642	BALL 6.35 mm(.25 in.)diameter	2
49	2M9780	SEAL--TO CONNECTOR PUMP OUTLET	1
50	2R1236	RING-RETAINING	1
51	3D2824	O-RING - FOR OIL DRAIN & LEVEL PLUG (ITEMS 3 & 7)	2
53	3K0360	SEAL PILOT MANIFOLD ON SEAL TO BOOM CHECK VALVE DRAIN	2
54	4K4284	RING-RETAINING	1
55	6V5192	BOLT-SOCKET HEAD (M8X1.25X30-MM)	4
56	7Y5219	SEAL-O-RING (ID=12.37mm)	2
57	8T2393	BOLT-SOCKET HD (SOCKET HEAD) (M16X2X60MM)	8
58	9S8005	PLUG-O-RING (STRAIGHT THREAD O-RING)	2
59	9S8008	PLUG-O-RING (COOLANT TEMPERATURE REGULATOR)	2

Choose Us

Strong part no. database.If you can prive the right model and part no.,we can supply the right product.
Professional and experienced salesperson,more than 6years.

FAQ

1.If I only know the excavator model, but can not offer parts No., what should I do ?

If possible, you can send us pictures of old products, nameplate or the size for reference.

2.What is the warranty of the parts after I purchased?

The warranty is 6/12 Months based on the item details.

3.When will get the items after I place order?

Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the

order.

4.How can I do if there is something wrong with the items?

First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us

and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?

We are specialized in the excavator spare parts, such as travel motor gearbox/ass’y/parts, swing gearbox/ass’y/motor/parts,

hydraulic pump assy/parts and gear parts. If you need other excavator parts, we also can supply as your requirements.
