Belparts LQ15V00015F2 Swing Motor SG08 SK250-8 Excavator Spare Parts Construction
LQ15V00015F2 Swing Motor SG08 SK250-8 Excavator Spare Parts Construction

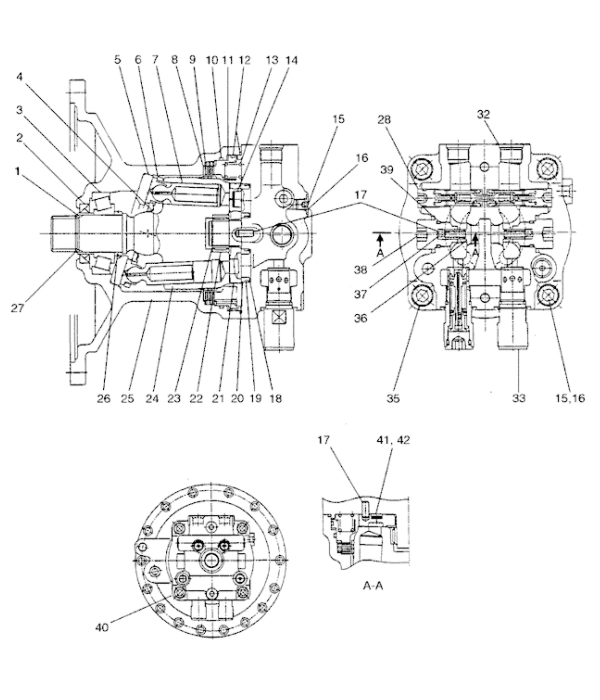

Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | LQ15V00015F2 | [1] | HYDRAULIC MOTOR,151CC | KOB ASSY-Swing |
| 1. | LQ15V00015S001 | [1] | SNAP RING | KOB |
| 2. | LQ15V00015S002 | [1] | OIL SEAL | KOB SPRING |
| 3. | LQ15V00015S003 | [1] | ROLLER BEARING | KOB ROLLER |
| 4. | LQ15V00015S004 | [1] | SPRING SEAT | KOB SPRING |
| 5. | LQ15V00015S005 | [1] | PLATE | KOB |
| 6. | LQ15V00015S006 | [1] | PLATE | KOB |
| 7. | NSS | [9] | NOT SOLD SEPARAT | CON PISTON |
| 8. | LQ15V00015S008 | [3] | PLATE | KOB |
| 9. | LQ15V00015S009 | [3] | PLATE | KOB |
| 10. | LQ15V00015S010 | [1] | O-RING | KOB Superseded by part number: 45Z91D91 |
| 11. | LQ15V00015S011 | [1] | PISTON | KOB PISTON |
| 12. | LQ15V00015S012 | [1] | O-RING | KOB |
| 13. | LQ15V00015S013 | [19] | SPRING | KOB |
| 14. | LQ15V00015S014 | [2] | PISTON | KOB |
| 15. | 2436U1309S41 | [3] | CAP | KOB PLUG |
| 16. | ZD12P01100 | [3] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 17. | 2441U455S53 | [2] | PIN | KOB |
| 18. | LQ15V00015S018 | [4] | WASHER, LOCK | KOB |
| 19. | LQ15V00015S019 | [4] | RING | KOB |
| 20. | LQ15V00015S020 | [4] | BUSHING | KOB |
| 21. | LQ15V00015S021 | [1] | PLATE | KOB |
| 22. | LQ15V00015S022 | [1] | NEEDLE BEARING,45mm ID x 33mm OD x 20mm W | KOB NEEDLE |
| 23. | LQ15V00015S023 | [1] | RING | KOB RETAINING |
| 24. | NSS | [1] | NOT SOLD SEPARAT | CON CYLINDER |
| 25. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 26. | LQ15V00015S026 | [1] | RING | KOB COLLAR |
| 27. | LQ15V00015S027 | [1] | SNAP RING | KOB RETAINING |
| 28. | LQ20V00001F1 | [2] | HYDRAULIC VALVE | KOB |
| 29. | LQ15V00015S029 | [1] | O-RING,183.74mm ID x 3.53mm Width | KOB |
| 32. | NSS | [1] | NOT SOLD SEPARAT | CON COVER |
| 33. | LQ22V00002F1 | [2] | HYDRAULIC VALVE | KOB RELIEF |
| 35. | ZS23C16060 | [4] | SCREW,Hex Socket Head, M16 x 60mm | KOB M16x2.0x60mm |
| 36. | 2441U962S45 | [2] | CHECK VALVE | KOB |
| 37. | 2441U962S46 | [2] | SPRING | KOB |
| 38. | 2441U962S48 | [2] | PLUG | KOB |
| 39. | ZD85P02600 | [2] | BACK-UP RING | KOB ID 26 x OD 32 x Th 1.25mm |
| 40. | LP15V00002S027 | [1] | PLUG | KOB |
| 41. | PH15V00004S013 | [2] | PISTON | KOB |
| 42. | PH15V00004S012 | [2] | RING | KOB |
PRODUCT DESCRIPTION
Modell:SG08/SK250-8 Machinery Test Report:Provide
Place of Origin:China Products:Excavator Swing Motor
Warranty:1 Year Standard or Nonstandard:Standard Product
Brand Name:BELPARTS Appliion:Crawler excavator
Color:Original Packing:Wooden
MOQ:10 PCS Business type:Manufacturer
Deliery:1-3 Days Transport:By sea/air/express (DHL/FEDEX/TNT/UPS/EMS/City-line)
