15 Inch Industrial LCD Display Automotive Panel with 1024x768pixels Resolution 400cd/m² Brightness and 30pin Connector
Price:
Negotiation
MOQ:
10pcs
Delivery Time:
4-5 working day
Brand:
innolux
Product Description
15" Industrial LCD Automotive Display

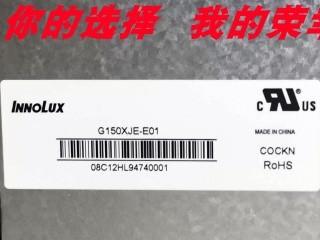

G150XJE-E01 Innolux 15-inch industrial LCD model automotive display with 1024×768 resolution and 400 cd/m² brightness.
Key Specifications
Panel Brand Innolux
Panel Model G150XJE-E01
Panel Size 15.0"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024×768, XGA, 85PPI
Brightness 400 cd/m²
Contrast Ratio 2500:1
Viewing Angle 88/88/88/88 (CR≥10)
Display Features
Display Mode NPVA, Normally Black
Response Time 16/7 ms (Tr/Td)
Display Colors 262K/16.7M, 72% NTSC
Surface Treatment Antiglare, Hard coating (3H)
Technical Specifications
Signal Interface eDP (1 Lane), 30 pins
Input Voltage 3.3V
Lamp Type WLED, 70K hours
Frequency 60Hz
Touch Screen Without
Panel Weight 942/980g (Typ./Max.)
Environmental Specifications
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 70°C
Physical Dimensions
Display Area 304.128×228.096 mm
Bezel Opening 307.4×231.3 mm
Outline Size 326.5×253.5×9.6 mm
