TC Rubber Oil Seal 108x137x12 FAW 9T Balance Shaft Oil Seal NBR Material
Product Name:
TC Type Oil Seal 108x137x12 FAW 9T Balance Shaft Oil Seal ,Top NBR Material
Product Description:
| Product name: | FAW 9T Balance Shaft Oil Seal |
| Color: | Black, Red, Brown or As Your Request |
| Brand Name: | TEBIETE or Customize for you |
| Feature: | Resistant oil ,dust, temperature |
| Place of Origin: | Hebei , China |
| Type: | TC |
| Size: | Custom Size |
| Material: | NBR,FKM,Silicone,HNBR,EPDM |
| Hardness: | Shore A 60-75 |
| Standard or Nonstandard: | Nonstandard |
Material Feature:
| MATERIAL | TEMPERATURE | ADANTAGES | LIMITATION |
|
Nitrile Rubbrt (NBR) |
-40~125ºC |
Good oil and fuel resistance High tensile strength Low swelling in water |
Poor weather and ozine resistance Poor resistance against polar lkuids Poor resistance against clhydrocarbon Poor resistance against aromatic fluids |
|
Fluorinated Rubber (FKM) |
-20~250ºC |
The resistance against oil and fuels is better than other types The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons Exccllcent hcat resistance Exccllcent weather and ozonc resistance Exccllcent acid resistance Low swelling in water |
Limited cold flexibliity Limited tensile and tear strength Limited wear resistance High compression set in hot water Poor resistance to polaric solvents |
|
Polyacrylate Rubber (ACM) |
-25~150ºC |
Good oil and fuels resistance Good weater and ozone resistance |
Not usable in contact with water and water solutions Limited cold flexibility Limited tensile strength and tear resistance Poor wear reisistance Poor resistance against polar and aromatic and chlorinared hydrocarhons |
|
Silicone Rubber (VQM) |
-60~225ºC | Best heat resistance of all rubber types Excellent low temp resistance of all rubber types Excellent weather and ozone resistance |
Poor tensile and tear strength Poor wear resistance Sensitive to hydrolysis Poor resistance against aromatic oils and oxidized mineral oils |

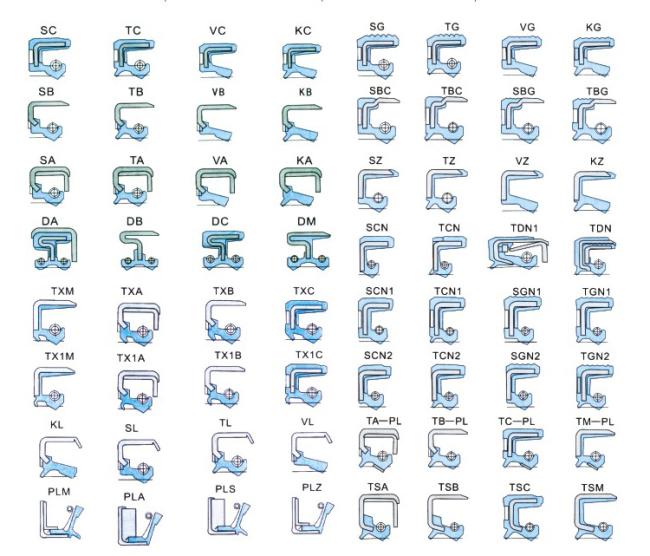

| Different Type of Oil Seals | ||||
|
Type |
Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| sc | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| Dc | NBR | Double Lips | Double | Double Springs |
| vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| Tcv | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | single | lnside thread R |
FAQ:
Q : When can I get the price?
A : We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us by E-mail,so that we will regard your inquiry as the first priority.
Q : How can I get a sample to check your quality?
A :After price confirmation, you can require for samples to check our quality.
Q : Can you do the design for us?
A :Yes. We have a professional team with rich experience in packaging box design and manufacturing. We can manufacture the products as per your requirements.
Q : How long can I expect to get the sample?
A :It will be ready for delivery in 7-10 days. The samples will be sent to you via express and arrive in 3-5 days.
Q : What about the lead time for mass production?
A :Usually 30-45 days after you confirm the PP sample and we received your deposit.
