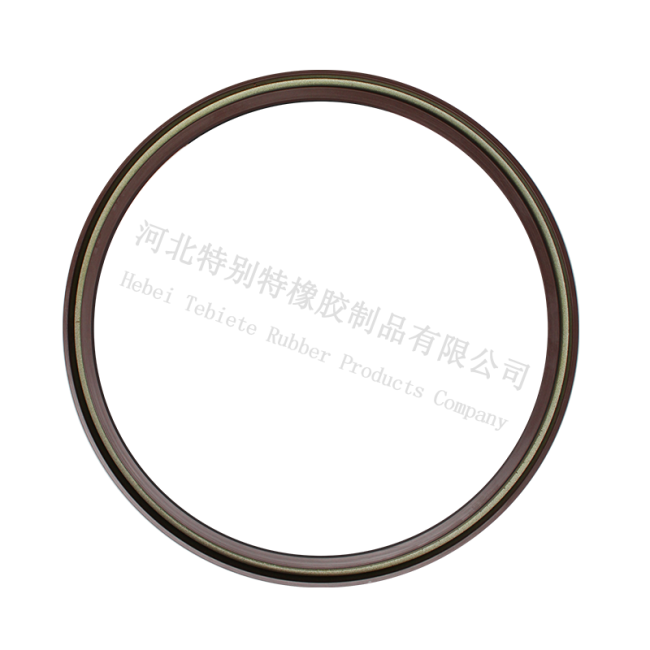

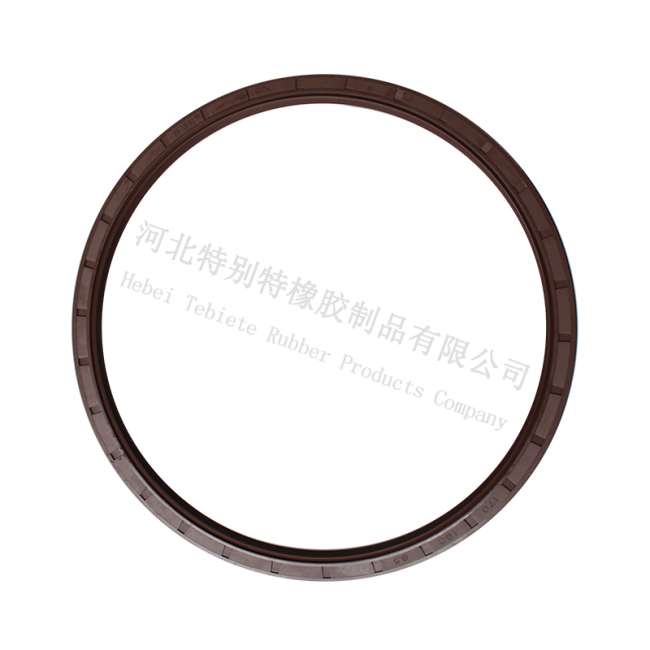

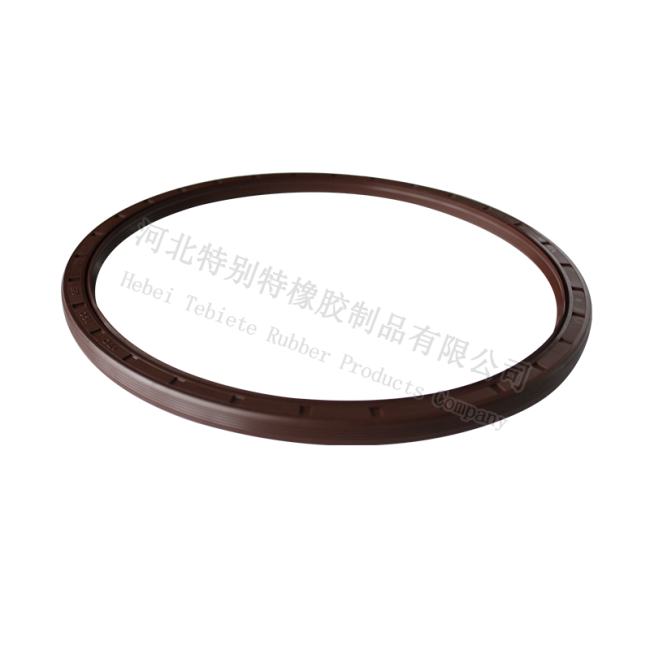

OEM 0059978447 TC Type Balance Shaft Oil Seal Mercedes Benz Truck 170x190x8.5
Product Name:
TC Type Balance Shaft Oil Seal for Mercedes Benz Truck 170x190x8.5
OEM No.: 0059978447
Product Description:
|
Product name |
Balance Shaft Oil Seal for Mercedes Benz Truck |
|
Material |
NBR |
| Size | 170x190x8.5 |
|
color |
black red blue brown or customes request |
|
Size |
Customized size/standard size |
|
Hardness |
20-90shore A or as your requirements |
|
Certificate |
IATF16949:2016 ISO9001:2008 |
|
Application |
Oil Prevention Sealing;Water Prevention Sealing;Corrosion Prevention Sealing;Gas Prevention Sealing;Leak Prevention Sealing |
|
Port of loading |
Tianjin/ Qingdao/Ningbo/Shanghai |
|
Term of payment |
PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc. |
|
Packing |
Neutral packing or meeting customer's need |
| Temperature |
NBR(-40~120°C),FFKM(-20~320°C) (-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Hardness | 30-90 shores A |
| Sample Time | If in stock, within 3 days after payment |
| Delivery Time |
10-20 days by shipping after final payment |
| Shipping | By Ships |
| Different Type of Oil Seals | ||||
| Type | Material | Lip | Spring | Feature |
| TC | NBR & FKM | Double Lips | Single | Metal Coverd Rubber |
| TB | NBR | Double Lips | Single | Metal Case |
| TA | NBR | Double Lips | Single | Metal Case |
| sc | NBR & FKM | Single | Single | Double Metal Shell |
| SB | NBR | Single | Single | Metal Case |
| SA | NBR | Single | Single | Double Metal Shell |
| Dc | NBR | Double Lips | Double | Double Springs |
| vc | NBR & FKM | Single | Without | Metal Coverd Rubber |
| VB | NBR | Single | Without | Metal Case |
| Tcv | NBR | Double Lips | Single | High Pressure |
| TCN | NBR | Double Lips | Single | High Pressure |
| PTFE | PTFE | Single & Double Lips | Without | Stainless steel |
| HTCL | NBR & FKM | Double Lips | Single | Inside thread L |
| HTCR | NBR & FKM | Double Lips | single | lnside thread R |
Material Feature:
| MATERIAL | TEMPERATURE | ADANTAGES | LIMITATION |
|
Nitrile Rubbrt (NBR) |
-40~125ºC |
Good oil and fuel resistance High tensile strength Low swelling in water |
Poor weather and ozine resistance Poor resistance against polar lkuids Poor resistance against clhydrocarbon Poor resistance against aromatic fluids |
|
Fluorinated Rubber (FKM) |
-20~250ºC |
The resistance against oil and fuels is better than other types The only highly elastic rubber whice is resistance to aromatci and chlornated hydrocarbons Exccllcent hcat resistance Exccllcent weather and ozonc resistance Exccllcent acid resistance Low swelling in water |
Limited cold flexibliity Limited tensile and tear strength Limited wear resistance High compression set in hot water Poor resistance to polaric solvents |
|
Polyacrylate Rubber (ACM) |
-25~150ºC |
Good oil and fuels resistance Good weater and ozone resistance |
Not usable in contact with water and water solutions Limited cold flexibility Limited tensile strength and tear resistance Poor wear reisistance Poor resistance against polar and aromatic and chlorinared hydrocarhons |
|
Silicone Rubber (VQM) |
-60~225ºC | Best heat resistance of all rubber types Excellent low temp resistance of all rubber types Excellent weather and ozone resistance |
Poor tensile and tear strength Poor wear resistance Sensitive to hydrolysis Poor resistance against aromatic oils and oxidized mineral oils |
FAQ:
1. Production :
We can produce by the size and pics.
If you want the customized products, send the samples to us.
2. Delivery:
The price is FOB price and it would by ship.
3. Samples:
We can provide samples but the delivery fee is paid by the customer.
