4mm 7*7 304 Stainless Steel Metal Wire Mesh For Safety Protection
4mm 7*7 304 stainless steel metal wire mesh for safety protection
Rope Mesh Description:
The steel wire protective net is used to wire rope net or wire grid net based on all kinds of flexible network covering or wrapped in the slope or dangerous stone to protect, to limit the slope surface rock and soil body weathering spalling or destruction and dangerous rock collapse (reinforcement), or rock fall control within a certain range of movement (maintenance).
Steel wire mesh system using high strength hot dip galvanized steel wire rope, steel wire mesh, not less than AB grade anti-corrosion treatment, its anti-corrosion life according to the different environmental conditions generally can reach 30-50 years.
Rope Mesh Specification:
| Material | SS304 |
| Surface treatment | Stainless steel |
| Construction of wire cable | 7*7 |
| Connection | Ferrule type |
| Ferrule material | stainless steel 304 |
|
Mesh Aperture Width*Height(mm) |
Wire Rope Diameter (mm) |
Minimum Breaking Load (KN) |
| 25 * 40 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 30 * 50 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 35 * 60 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 40 * 70 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 50 * 88 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 3.0 | 5.7 | |
| 4.0 | 10.1 | |
| 60 * 105 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 3.0 | 5.7 | |
| 4.0 | 10.1 | |
| 5.0 | 15.9 |
Rope Mesh Application and Characteristics :

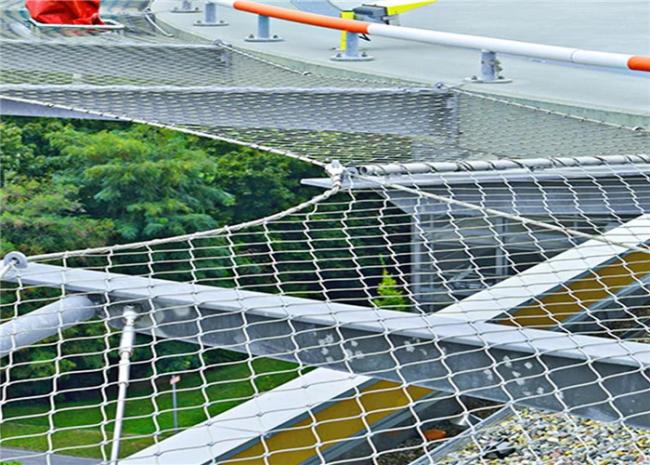

Garden protection construction, park landscaping and greening decoration, wildlife park, bridge, stadium fence, supermarket, airport, automobile 4S shop, exhibition hall, performing arts performance, opera house, movie and television drama props, municipal construction, amusement park use, metal curtain wall, indoor and outdoor architectural decoration, protection engineering, etc
Rope Mesh Characteristics :
1. Lightweight, high strength, no rust, fatigue resistance, impact resistance, breaking force, strong and durable overall structure, the service life of stainless steel rope net in more than 30 years;
2. Close to nature, green environmental protection, good softness, used for indoor and outdoor stair protective net, stair anti-fall net, can have buffer human landing, protect people's life safety, and stop other falling objects;
3. Good perspective, luxurious appearance, novel style, can be integrated with the surrounding environment, play a good decorative and protective role;
4. one-time investment, one-time use, the middle does not need any maintenance, the comprehensive economic benefits are other screen products can not be compared.
