0-10V Dimming Controller Hotel Room Lighting Control System 220 To 240 Volt 50/60 Hz

Price Negotiable
Price: Negotiation
MOQ: 1 pcs
Delivery Time: 3-7 work days
Brand: Okystar
Product Description

120 and 220 to 240 Volt 50/60 Hz 0-10V Dimming Controller For Smart Home

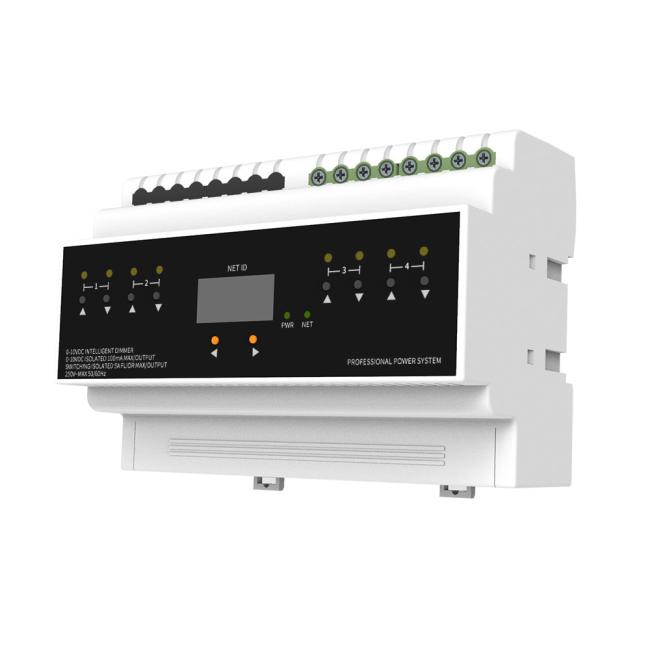

Description of 4 Channels of 0-10V Dimmer Module

It (The DIN-FLV)  is a 4-channel lighting control module designed to dim 0-10 Volt drivers and ballasts. A single
model supports both 120 and 220 to 240 Volt applications.The DIN-FLV4 may also be used for switching of non-dimmable lighting loads up to 5 amps[1] and 1/2 HP motors.




Features of 0-10V Dimmer Module


Dimmer Channels
4

Maximum Wire Size

12 AWG (2.5 mm²)



Voltage Control Range


0 to 10 Volts DC

Weight

350g





Enclosure

Light gray polycarbonate housing with polycarbonate label overlay, UL94V-0 rated, 35mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45mm front panel cutout, occupies 8 DIN module spaces(143mm)



Different packing at optional:
1. Retailing Packing:
Neutral Carton Package

2. Bulking Packing:
Carton Package-Can save packing cost
Anti-static bag--Can protect electronic components from potential electrostatic
hazards

3. Customized Packing
Can design and pack according to your requirement,such as colorful box,blister
packing,sealed packing with your company information, bar code,ect. ( Discuss
extral)





FAQ:



1. What is intelligent lighting control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.



2. What is the advantage compare with the traditional lighting control?



Improve energy efficiency

Reduce maintenance cost

Easy operation and more convenient



3. What Okystar can supply for you?



Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
