Demo Case Dali Lighting Control Module 24VDC Meeting Room Scenes Aluminum Alloy
24VDC Meeting Room Scenes DALI Demo Case Lighting Control System
Quick Details Of DALI Lighting Control System Demo:
1. Lighting strips 12V/1A DALI Digital Dimmable Flicker Free LED Drivers*5pcs
2.DALI master controller*1pcs
3.DIN Rail 60 Watt DC-NET Power Supply*1pcs
4.DIN Rail Intelligent Control Processor*1pcs
5.Programmable Smart Touch Screen*1pcs
6.Scene Customization Kepad *1pcs
7.Computer Socket Network cable Socket Panel Champagne Gold 86 *1pcs
Specifications of 8-Button Control Panel:
| Chassis | Plastic |
| Faceplate | Aluminum Alloy |
| Color | Champaign Gold (Other color can be customized) |
| Operating Voltage | 24V DC |
| Static Power Consumption | 0.5 watt |
| Maximum Power Consumption | 1.6 watt |
DALI master controller Fectures:
| DALI Interface | (1) 2-pin 7.62mm terminal blocks Each channel controls a single DALI loop (up to 64 ballasts); |
| Wire Gauge | 28 AWG to 12 AWG |
| COMPUTER | 1) USB Type B female, USB 1.1 computer console port |
| TEST | (6) miniature pushbuttons for testing on/off and dim up/down for all attached ballasts in channel |
| LCD Panel | (1) LCD Display Panel for Used for displaying various equipment information and operation status information |

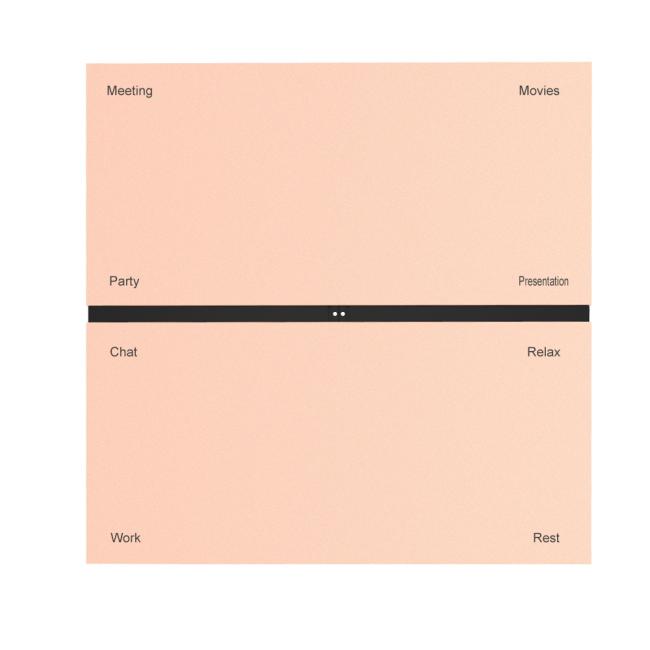

Photo of 8-Button Control Panel:
FAQ:
1. What is intelligent lighting control system?
A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.
2. What is the advantage compare with the traditional lighting control?
Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient
3. What Okystar can supply for you?
Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
