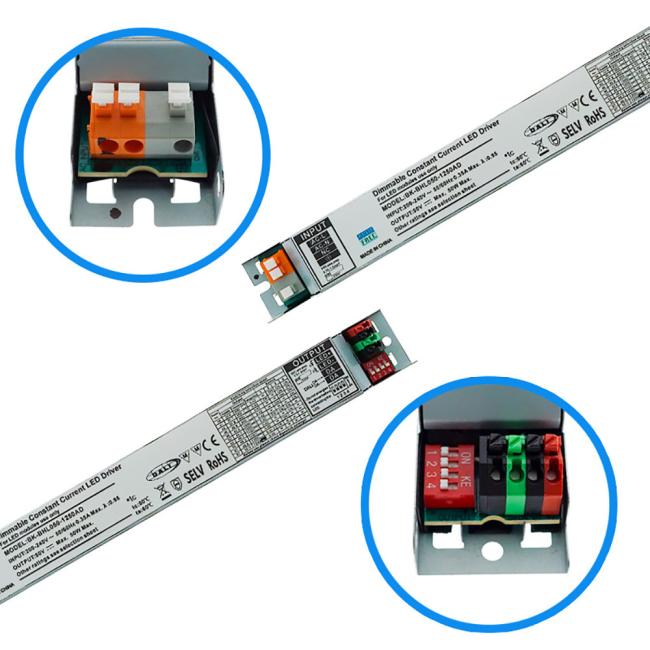

30W 10V Dimmable LED Driver Tri Proof Light Power Supply 264VAC Input

1 10v Dimmable Led Driver Tri-Proof Light Line Light Power Supply 200-240V

FEATURES

•  180-264VAC input
•  Built in active PFC function,high PF,low THD
•  Stanby power consumption <0.5W to turn off dimmable port
•  Built in 12VDC VCC output,maximum output current 100mA
•  Built in 1-10VDC/10V PWM dimming function
•  Constant currentmode output with mulitiple levels selectable
  by DIP.switch
•  Supporting multi-power supplys synchronous dimming
  connected in parallel
•  Cooling by free air convecation
•  5 years warranty

APPLICATION

•  LED indoor lighting
•  LED office lighting
•  LED architectural lighting
•  LED commercial lighting
•  Constant currentmode output with mulitiple levels selectableby DIP.switch
•  Cooling by free air convecation
•  Supporting multi-power supplys synchronous dimming connected in parallel
•  5 years warranty

Parameters

•  Frequency Range:47-63Hz
•  Operation Temperature:-20-60℃
•  Operation Humidity:10-90% RH non-condensing
•  Storage Temperature:-40-80℃
•  Storage Humidity:5-95% RH
•  IP Class:N/A
•  Vibration:10~500Hz,5G 12min./1cycle,period for 72min. each along X,Y,Z axes
•  TC:Tc=90℃(Ta=60℃)
•  Environmental Protection:RoHS
•  Dimming Mode:N/A
•  Electromagnetic Emission:EN50015 GB17743 EN61000-3-3 N61000-3-2(Class C)
•  Safety standards:EN61347-1/2-13,GB19510.1/14 EN62384
•  Life Span:50000H
•  Hi-pot:I/P-O/P:3750V
•  Leakage Current:<0.7mA@240Vac
•  Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100MΩ/500Vdc/25℃/70% RH
•  Electromagnetic Interference:EN61547 GB17625 EN61000-4-2/3/4/5/6/8/11
•  Max Output Voltage:50V
