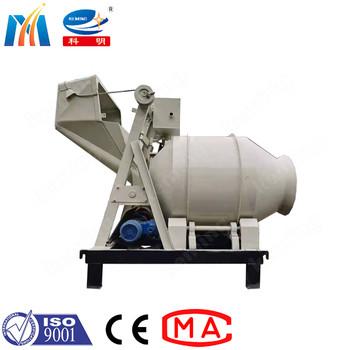

JZM Friction Concrete Grout Mixer Machine Applied For Civil Mixing 60mm
Low in Price with Good Quality JZM Friction Concrete Mixer Applied for Civil Mixing
JZM Friction Concrete Mixer Introduction:
1. JZM friction concrete mixer is also called friction mixer.
2. It is a concrete mixer model driven by rubber roller friction.
3. This mixer is a drum type concrete mixer with positive rotation mixing and reverse discharge type.
JZM Friction Concrete Mixer Feature:
1. JZM friction concrete mixer has low noise and stable operation.
2. It has the advantages of convenient operation and movement, high mixing quality, and can mix plastic and semi-dry concrete.
3. It is a type of equipment between forced mixers and civil mixers.
JZM Friction Concrete Mixer Technical Parameters:
|
Model |
JZM350 |
JZM400 |
JZM450 |
JZM500 |
|
Charging volume (L) |
350 | 400 | 450 | 500 |
|
Discharging capacity (L) |
560 | 640 | 720 | 800 |
|
Productivity (m3/h) |
10-13 | 12-18 | 14-19 | 16-20 |
|
Rev of drum (r/min) |
15 | 15 | 15 | 15 |
|
Max. Aggregate size (mm) |
60 | 60 | 60 | 60 |
|
Water-supply error |
≤2% | ≤2% | ≤2% | ≤2% |
|
Stirring motor(kW) |
5.5 | 5.5 | 7.5 | 5.5*2 |
|
Hoisting motor(kW) |
4.5 | 4.5 | 4.5 | 4.5 |
|
Water pump motor(kw) |
0.55 | 0.75 | 0.75 | 1.1 |
|
Tires |
650-16 | 650-16 | 700-16 | 700-16 |
|
Towing speed(km/h) |
≤20 | ≤20 | ≤20 | ≤20 |
|
Dimension(L*W*H)(m) |
3.8*2.05*2.69 | 3.8*2.2*2.85 | 4*2.3*2.9 | 5.7*2.35*5.1 |
|
Machine Weight (kg) |
1950 | 2100 | 2400 | 2800 |
