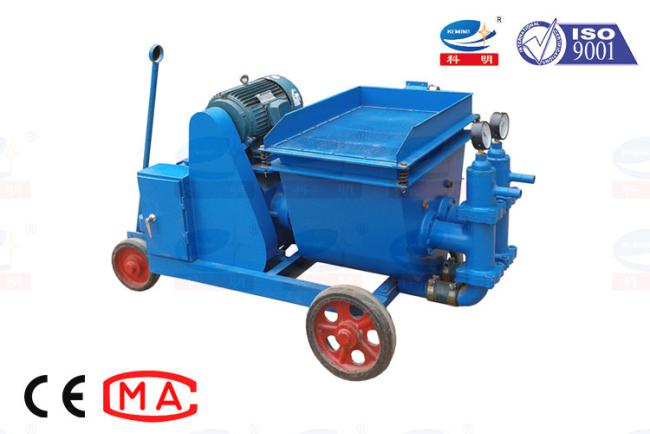

Lime Slurry Mortar Grout Pump High Working Pressure Stable Performance
Lime Slurry Mortar Grout Pump High Working Pressure Stable Performance
Technical Parameters:
|
Model
|
KHB-100/4 Mortar Pump
|
|
Capacity
|
100L/min
|
|
Max. Pressure
|
5MPa
|
|
Work Cylinder
|
Double
|
|
Cylinder Dia.
|
90mm
|
|
Inlet Dia.
|
38mm
|
|
Outlet Dia.
|
38mm
|
|
Max. aggregate size
|
5mm
|
|
Motor Power
|
7.5kW
|
|
Weight
|
350kg
|
|
Dimensions (LxWxH)
|
1610x1024x900mm
|
Mortar Pump Features:
1. Double Piston Type Mortar Grout Pump
2. Small size, light weight, convenient movement.
3. Compact structure, stable performance, high efficiency, low failure rate.
4. Easy operation and maintenance, long service life.
Mortar Pump Application:
1. KHB mortar pump is used for mortar delivery, fundamental grouting and mending, grout reinforcement of dam, bridge, culvert and tunnel, and delivery of slurry materials, magnetic materials, or other materials.
2. It can also be used for wall plastering equipped with spraying gun and compressed air.
3. It is widely applied in construction engineering, metallurgical industry, chemical industry, infrastructure construction, and national defense engineering etc.
Suggestion: Cement-sand ratio≥1:3.
