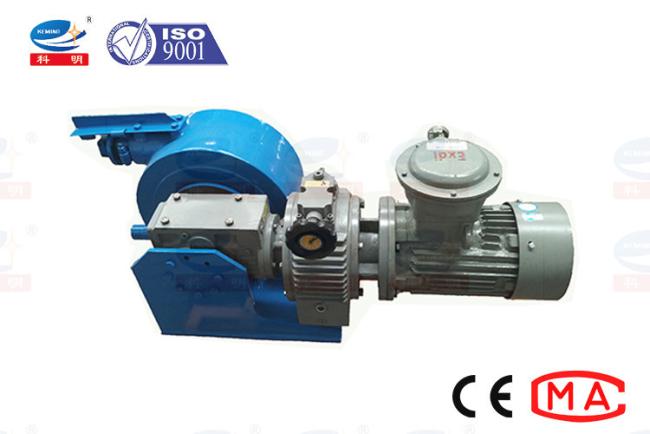

Small Electric Mortar Hose Pump Non Leakage Horizontal Chemical Transfer Pump
Small Electric Mortar Hose Pump Non Leakage Horizontal Chemical Transfer Pump
Technical Parameters:
|
Model
|
KH38C Hose Pump
|
|
Output
|
2000~3500 L/h
|
|
Rated pressure
|
1.5 MPa
|
|
Rev.
|
40~70 r/min
|
|
Hose length
|
1150 mm
|
|
Max. particle dia.
|
5 mm
|
|
Max. suction dist.
|
4 m
|
|
Motor power
|
2.2/ 3/ 4 KW
|
|
Reducer type
|
Gear reducer
|
|
Note:
Driven power could be driven by electric motor or diesel engine.
Various squeeze hoses are available for pumping different materials.
Customized pump is available.
|
|
Hose Pump Features:
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
3. High vacuum, strong self-suction capacity.
4. Convenient maintenance, less wearable parts (except extruded hose).
Hose Pump Application:
1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.
2. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.
3. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.
4. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...
5. Paper industry: paper pulp, liquid sulfur.
6. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.
7. Oil industry: drilling fluid,crude oil.
8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.
9. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.
10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.
