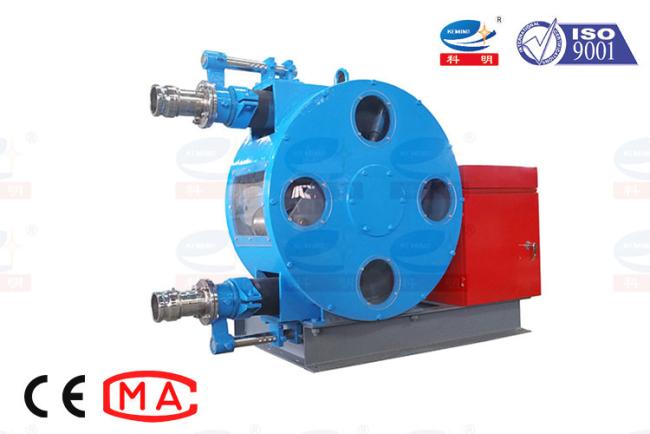

VFD Heavy Duty Industrial Hose Pump Wear Resistance High Flow Rate
VFD Heavy Duty Industrial Hose Pump Wear Resistance High Flow Rate
Technical Parameters:
|
Model
|
KH76C Industrial Peristaltic Pump
|
|
Output
|
18000~28000 L/h
|
|
Rated pressure
|
1.0 MPa
|
|
Rev.
|
40~55 r/min
|
|
Hose length
|
1900 mm
|
|
Max. particle dia.
|
6 mm
|
|
Max. suction dist.
|
5 m
|
|
Motor power
|
11.0/ 15.0 KW
|
|
Reducer type
|
Gear reducer
|
|
Note:
Driven power could be driven by electric motor or diesel engine.
Various squeeze hoses are available for pumping different materials.
Customized pump is available.
|
|
Peristaltic Pump Features:
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
3. High vacuum, strong self-suction capacity.
4. Convenient maintenance, less wearable parts (except extruded hose).
Peristaltic Pump Application:
1. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.
2. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.
3. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.
4. Oil industry: drilling fluid,crude oil.
5. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.
6. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...
7. Paper industry: paper pulp, liquid sulfur.
8. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.
9. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.
10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.
