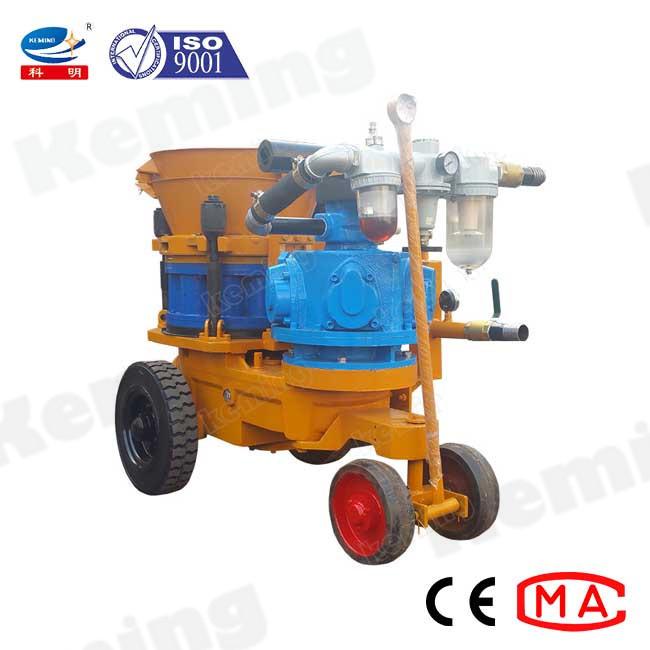

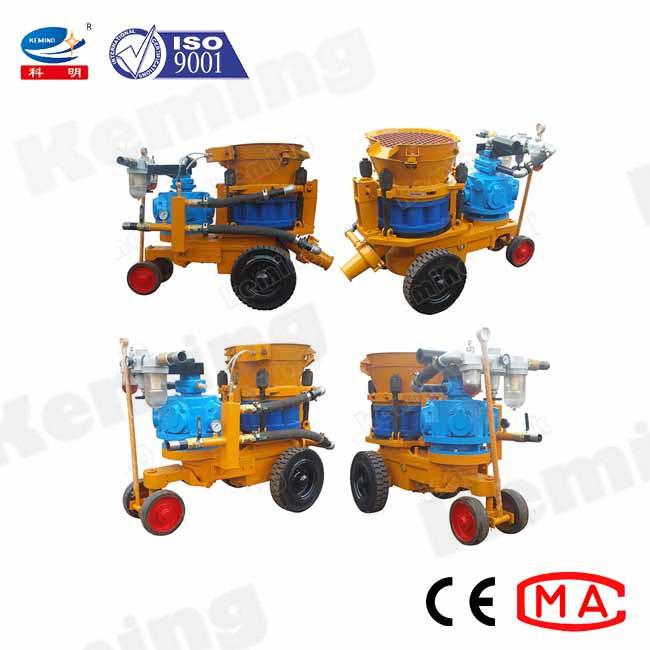

Tunnel Joint Filling Concrete Spray Shotcrete Machine
Best Price Pneumatic Motor Dry Shotcrete Machine For Joint Filling
Shotcrete Machine Features:
1. KPZ Series Dry Shotcrete Machine mainly used for slope protection anchorage, foundation pit reinforcement, tunnel spraying anchorage.
2. KPZ-7A Pneumatic Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, air motor etc.
3. KPZ-7A Pneumatic Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.
Shotcrete Machine Application:
1. KPZ-7A Pneumatic Shotcrete Machine can be used for dry or half wet concrete spray construction.
2. KPZ-7A Pneumatic Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
Shotcrete Machine Parameters:
|
Model
|
KPZ-7A Pneumatic Shotcrete Machine
|
|
Capacity
|
5.5-6.5 m3/h
|
|
Max. conveying dist.
|
≤150 m
|
|
Water-cement ratio
|
≤0.35
|
|
Max. aggregate size
|
20 mm
|
|
Delivery hose ID.
|
φ51/57 mm
|
|
Working pressure
|
0.2-0.6 MPa
|
|
Air consumption
|
9 m3/min
|
|
Air consumption of air motor
|
8 m3/min
|
|
Dimensions(Length×width×height)
|
1520×850×1350 mm
|
|
Total weight
|
950 kg
|
