Coal Mining 150L/Min 7Mpa 18hp Diesel Slurry Pumps
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
5~8 Work Days
Brand:
KEMING
Product Description

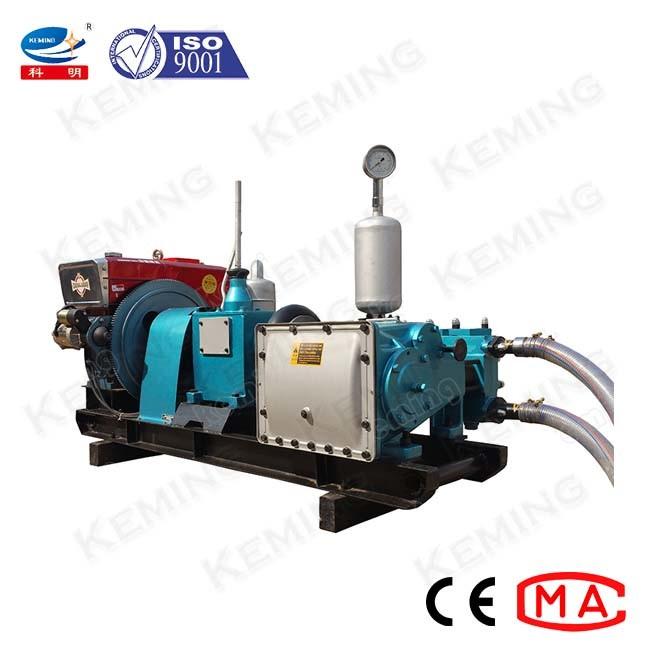

KBW150 Diesel Slurry Pumps Industrial Mud Pumps Stainless Steel Screw Pumps
Mud Pump Application:
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
Mud Pump Features:
1. KBW-150D mud pump is horizontal triplex reciprocating single-acting piston pump.
2. Eight gear shift to adjust the flow, large output capacity, simple operation.
3. High quality pump parts, less energy consumption, less wearing parts, long service life.
4. Flexible manipulation, easy dismantlement and move.
Mud Pump Parameters:
| Model |
KLW-150D mud slurry pump
|
|
Pump type
|
Horizontal type
|
|
Function
|
Single acting
|
|
Cylinder number
|
3
|
|
Cylinder diameter
|
70mm
|
|
Piston stroke
|
70mm
|
|
Input speed
|
1500 r/min
|
|
Max. suction speed
|
2.5m
|
|
Suction pipe ID.
|
50mm
|
|
Discharge pipe ID.
|
32mm
|
|
Diesel Power
|
18 hp
|
|
Weight
|
750kg
|
|
Dimensions (L×W×H)
|
1770×1130×1220 mm
|
|
Stroke frequency, Output, Pressure
|
||||||||
|
Handle lever position
|
High 4
|
High 3
|
High 2
|
High 1
|
Low 4
|
Low 3
|
Low 2
|
Low 1
|
|
Stroke frequency
(min-1)
|
222
|
130
|
86
|
57
|
183
|
107
|
71
|
47
|
|
Output
(L/min)
|
150
|
90
|
58
|
38
|
125
|
72
|
47
|
32
|
|
Pressure
(MPa)
|
1.8
|
3.2
|
4.8
|
7.0
|
2.3
|
4.0
|
6.0
|
7.0
|
