0.6Mpa 300L/h Squeeze Type Peristaltic Dosing Pump

Price Negotiable
Price: Negotiation
MOQ: 1 Set
Delivery Time: 10~30 Work Days
Brand: KEMING
Product Description

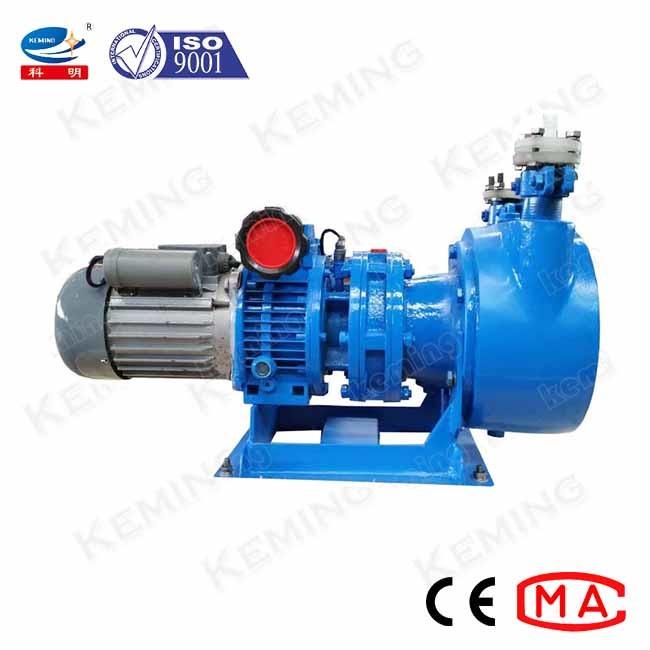

CE Safety Standard KH Series Squeeze-Type Industrial Peristaltic Hose Pump

Peristaltic Hose Pump Features:

1. Unique structure with no sealing element, no leakage, no pollution;

2. Advanced rolling technology adopted, no need of lubrication for roller;
3. High suction ability, self-cleaning ability, sucking materials in two directions;
4.Simple hose installation, simple operation, easy to assemble and maintain, lower maintenance cost;
5.Linear regulation of flow rate, limited, measuring ability;
6.No block when pumping fluid with high viscosity and foreign substance contained;
7.Long service life;
8.High delivery lift and output pressure.

Peristaltic Hose Pump Application:

1. Architecture: mortar,plaster,cement paste,soil slurry,silt slurry,lime slurry,foamed concrete, architectural coating, refractory,accelerator,ooze,waste water,sewage and so on.

2. Chemical: corrosive,acid,alkali,phosphate liquid,inorganic materials,crystalline liquid,suspending liquid,emulsion,resin,electroplate liquid,electrolyte solution,precipitate.

3. Mining: gold pulp,tailings,thick pulp,filling materials,underground drainage,adsorbent,slurry, mortar...

4. Paper industry: paper pulp, liquid sulfur.

5. Oil industry: drilling fluid,crude oil.

6. Ceramic industry: ceramic germ plasma, slip glaze, glaze materials.

7. Agriculture: phosphate fertilizer,compound fertilizers,thick slurry, precipitated sludge.

8. Cosmetics industry: toothpaste, emulsion, hair conditioner, face cream, facial oil.

9. Food and Beverage: oil, brew, milk, confiture, salad, syrup, chocolate.

10. Others: pharmaceutical liquid,radioactive liquid,textile auxiliary,adhesion agent,glue,latex.

Technical Parameters:

Model
KH15B Peristaltic Hose Pump
Output
210~300 L/h
Rated pressure
0.6 MPa
Rev.
45~75 r/min
Hose length
715 mm
Max. particle dia.
2 mm
Max. suction dist.
2 m
Motor power
0.55 KW
Reducer type
Cycloidal reducer
Note:
Driven power could be electric motor or diesel engine.
Various squeeze hoses are available for pumping different materials.
Customized pump is available.
