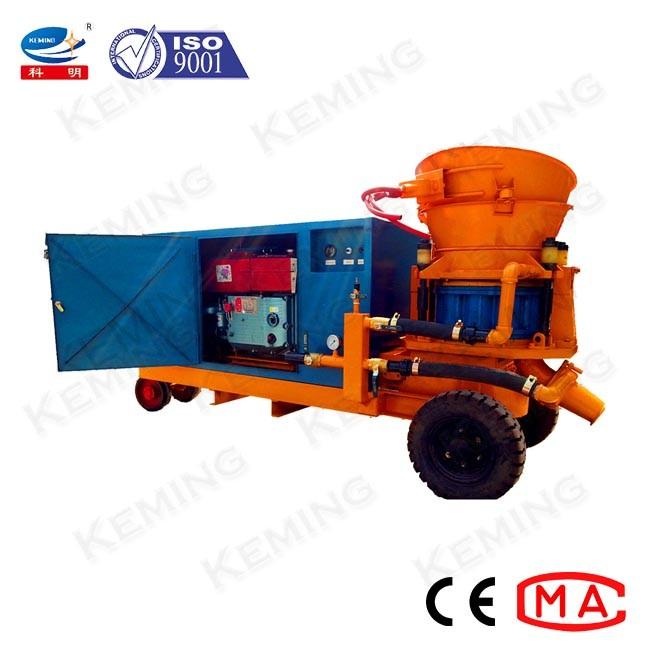

0.6Mpa 3m3/H Tunneling Concrete Shotcrete Machine
3m3/H Tunneling Building Diesel Gunite Machine Concrete Spraying Shotcrete Equipment
Concrete Spray Machine Features:
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).
7. KPZ-3D Diesel Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, diesel engine etc.
8. KPZ-3D Diesel Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.
Concrete Spray Machine Application:
1. KPZ-3D Diesel Shotcrete Machine can be used for dry or half wet concrete spray construction.
2. KPZ-3D Diesel Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
Concrete Spray Machine Parameter:
|
Model
|
KPZ-3D Diesel Engine Shotcrete Machine
|
|
Capacity
|
3m3/h
|
|
Max. conveying dist.
|
≤ 200m
|
|
Suitable mixture ratio
|
cement/sand and gravel=1:4~5
|
|
Suitable water-cement ratio
|
<0.4
|
|
Max aggregate size
|
φ15mm
|
|
Spraying hose ID.
|
φ42/51mm
|
|
Operating pressure
|
0.2~0.6Mpa
|
|
Air consumption
|
5~6 m3/min
|
|
Power type
|
Diesel engine
|
|
Diesel power
|
6.9 KW (10hp)
|
|
Dimensions(Length×width×height)
|
2200×780×1020mm
|
|
Total weight
|
800kg
|
