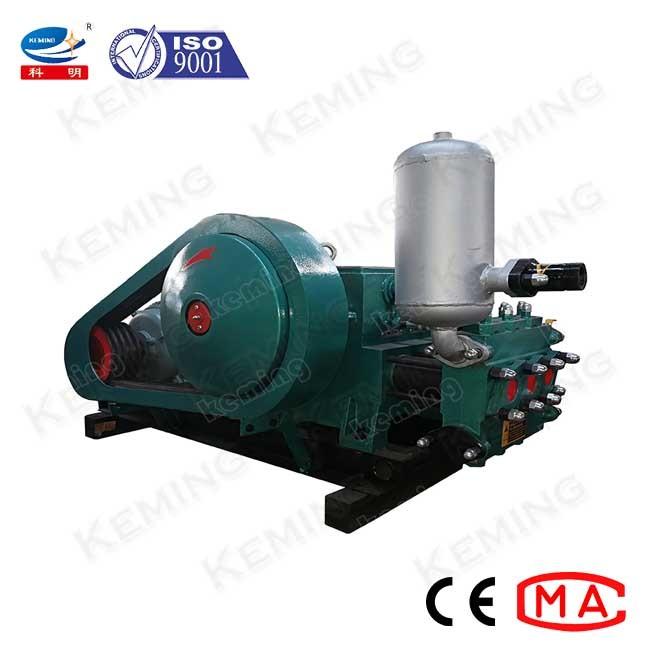

160m Deep Borehole Drilling Rig Triplex Piston Mud Pump
Great Quality BW160 Triplex Piston Mud Pump For 160m Deep Borehole Drilling Rig
Mud Pump Application:
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.
Mud Pump Features:
1. KBW-160 grouting pump is horizontal triplex reciprocating single-acting piston pump.
2. High quality pump parts, less energy consumption, less wearing parts, long service life.
3. Flexible manipulation, easy dismantlement and move.
Mud Pump Parameters:
|
Model
|
KBW-160 grouting pump
|
|||
|
Type
|
Horizontal triplex reciprocating single-acting piston pump
|
|||
|
Stroke (mm)
|
70
|
|||
|
Cylinder diameter (mm)
|
70
|
|||
|
Speed gear
|
Fast 1
|
Fast 2
|
Slow 1
|
Slow 2
|
|
Pump speed (r/min)
|
200
|
132
|
83
|
55
|
|
Flow (L/min)
|
160
|
107
|
67
|
44
|
|
Pressure (MPa)
|
2.5
|
4
|
6.5
|
10
|
|
Input torque (Nm)
|
150
|
|||
|
Input speed (r/min)
|
610
|
|||
|
Rated power (KW)
|
11
|
|||
|
Max. suction height (m)
|
2.5 (clean water)
|
|||
|
Suction pipe ID. (mm)
|
51
|
|||
|
Discharge pipe ID. (mm)
|
25
|
|||
|
Dimensions (L×W×H) (mm)
|
1830×800×1030
|
|||
|
Weight (kg)
|
490
|
|||
