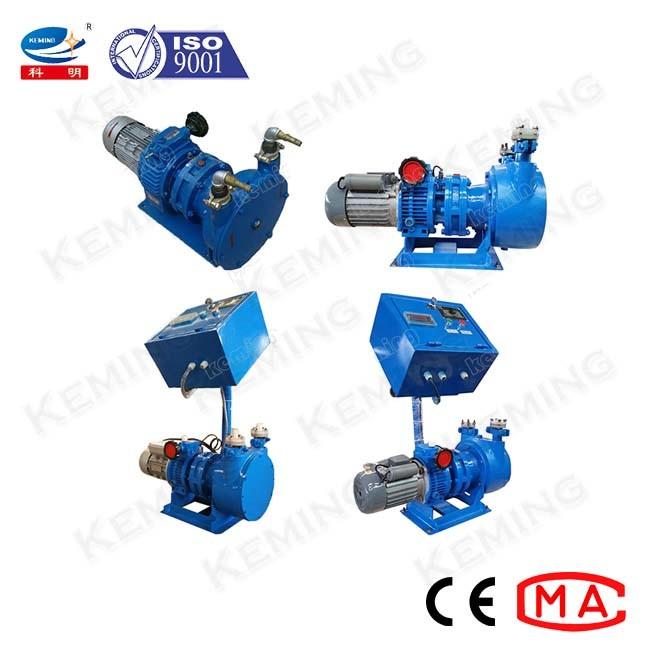

300L/H Food Grade Liquid Transfer Peristaltic Hose Pump
Food Industrial Food Grade Liquid Transfer Pump Peristaltic Hose Pump
Hose Pump Introduction:
Model KH Series Hose Pump are the very mature products with different kinds of standard models and many special models designed as the customer’s request. The working pressure ranges from 0.6~1.5 MPa, and output capacity from 0.01~50 m3/h.
Hose Pump Features:
1. No valve operation, no back flow, stable pumping flow, low fault rate.
2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
3. High vacuum, strong self-suction capacity.
4. Convenient maintenance, less wearable parts (except extruded hose).
Hose Pump Application:
1. Construction --- pump and spray of cement, mortar, plaster, slurry, fine aggregates concrete ...
2. Mining industry --- delivery of mining slurry, gold pulp, tailing, thick pulp, filling materials...
3. Water treatment --- delivery of water, sewage, thick slurry, precipitated sludge...
4. Pharmacy --- delivery of drug liquids, harmful and corrosive materials...
5. Textile industry --- delivery of fibers, dyes, additives...
6. Paper making and printing industry --- delivery of paper slurry, ink, glue...
7. Ceramic and glass industry --- delivery of glaze, slurry, pigment...
8. Brewing industry --- delivery of beer or wine, treatment of wine sediment...
9. Food industry --- delivery of beverage, cream, juice, milk, chocolate, addictive...
10. Chemical industry --- delivery of corrosive, acid, alkali, phosphate liquid, inorganic materials, suspending liquid, electroplate liquid, precipitate .
Technical Parameters:
|
Model
|
KH15B Peristaltic Hose Pump
|
|
Output
|
210~300 L/h
|
|
Rated pressure
|
0.6 MPa
|
|
Rev.
|
45~75 r/min
|
|
Hose length
|
715 mm
|
|
Max. particle dia.
|
2 mm
|
|
Max. suction dist.
|
2 m
|
|
Motor power
|
0.55 KW
|
|
Reducer type
|
Cycloidal reducer
|
|
Note:
Driven power could be electric motor or diesel engine.
Various squeeze hoses are available for pumping different materials.
Customized pump is available.
|
|
