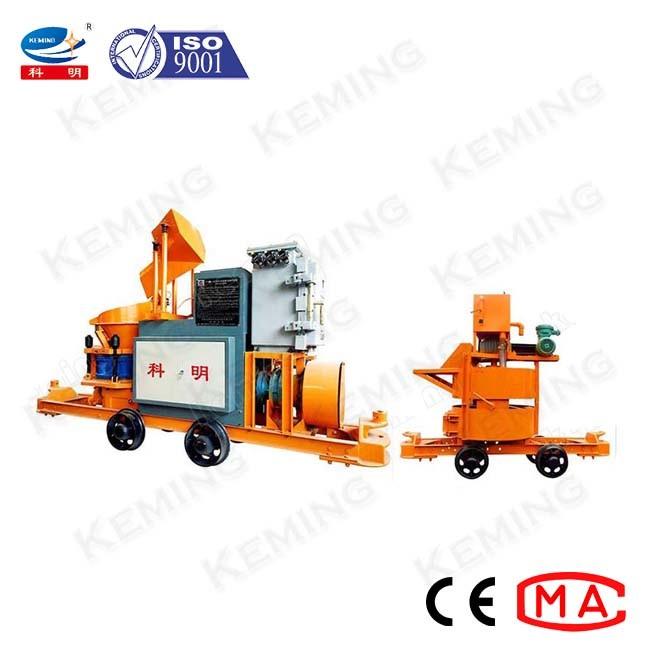

Explosion Proof Wet Concrete Spray Shotcrete Machine
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
10~20 Work Day
Brand:
KEMING
Product Description
Concrete Ready Mix Applications Explosion-Proof Wet Plaster Shotcrete Machine
Shotcrete Machine Features:
1. JPS6IH Wet Shotcrete Machine
2. The mixing system relays on high-pressure air.
3. simple design, advanced technology, compact structure.
4. simplified operation, convenient maintenance and cleaning.
5. long conveying distance, fewer dusts, reliable performance.
Shotcrete Machine Application:
1. JPS6IH Wet Shotcrete Machine can spray half wet or wet concrete.
2. JPS6IH Wet Shotcrete Machine is widely used in coal mine, tunnels, culverts, subway, underground engineering and other narrow space.
Shotcrete Machine Parameters:
|
Capacity
|
m3/h
|
4~6
|
|
|
Conveying dist.
|
m
|
60/10
|
|
|
Suitable water and cement ratio
|
|
>0.40
|
|
|
Addictive ratio of powdery accelerator
|
/
|
3%~7%
|
|
|
Max. aggregate size
|
mm
|
≤15
|
|
|
Conveying pipe ID.
|
mm
|
φ57
|
|
|
Work pressure
|
MPa
|
0.2~0.4
|
|
|
System air pressure
|
MPa
|
≥0.6
|
|
|
Air consumption
|
m3/min
|
≥10
|
|
|
Material feeding height
|
m
|
1.1
|
|
|
Motor type
|
Type
|
/
|
YBK2-160M-6
|
|
Power
|
kW
|
7.5
|
|
|
Type
|
/
|
YBK2-112M-4
|
|
|
Power
|
kW
|
4
|
|
|
Type
|
/
|
YBK2-112M-4
|
|
|
Power
|
kW
|
4
|
|
|
Voltage
|
V
|
380/660 or 660/1140
|
|
|
Machine gauge
|
mm
|
600(900)
|
|
|
Dimensions (Length×width×height)
|
mm
|
3179×820×1900
|
|
|
Total weight
|
kg
|
1500
|
|
