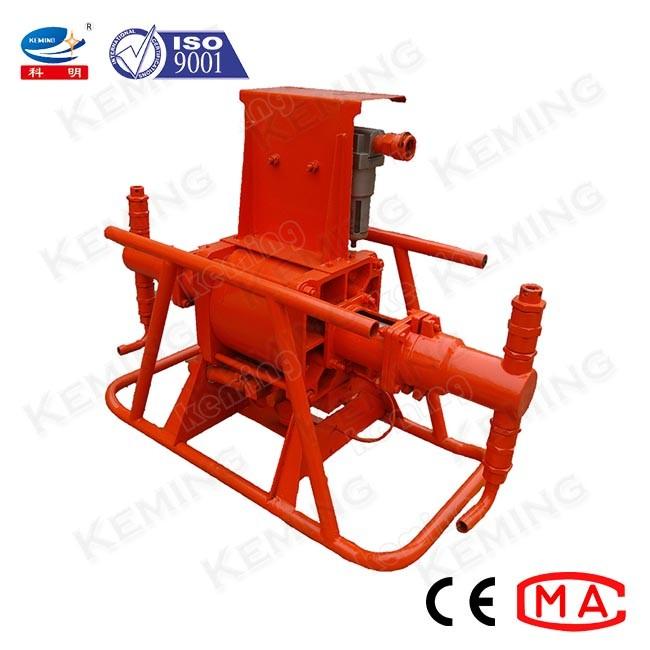

50L/Min Cement Grout Injection Pump Piston Mortar Pump
Cement Grout Injection Pump/ Piston Pump/ Mortar Pump With Best Price
Pneumatic Grout Pump Features:
1. Full Hydraulic Grouting Pump Cement Grout Pump, also named hbts30-13-55 small trailer cement grout pump which often works together with RM mixer. The idea choice of engineering grouting.
2. Reversing mechanism has automatic positioning function by air pressure with no 'self-stop' phenomenon.
3. All cylinders work simultaneously to ensure even mixing and rated mixing ratio.
4. Suction valve and discharge valve can be quickly removed, easy maintenance.
5. Pneumatic transmission, strong anti-pollution ability, small size, light weight, easy movement.
Pneumatic Grout Pump Application:
1. The pump has single or double liquid grouting function.
2. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
3. It is widely used for water blocking and rock consolidation in coal mine, subways, hydro-power constructions, or for pre-grouting of working surface in deep well.
4. It can work in inflammable, explosive, strong radiative, dusty sites and other bad environments with changeable temperature.
Technical Parameters:
|
Model
|
2ZBQ-20/4
|
2ZBQ-10/10
|
2ZBQ-30/3
|
2ZBQ-30/30
|
2ZBQ-50/19
|
|
Pressure(MPa)
|
4
|
10
|
3
|
30
|
19
|
|
Output(L/min)
|
20
|
10
|
30
|
30
|
50
|
|
Working air
pressure(MPa)
|
0.2-0.63
|
||||
|
Inlet dia.(mm)
|
25
|
||||
|
Outlet dia.(mm)
|
13
|
19
|
|||
