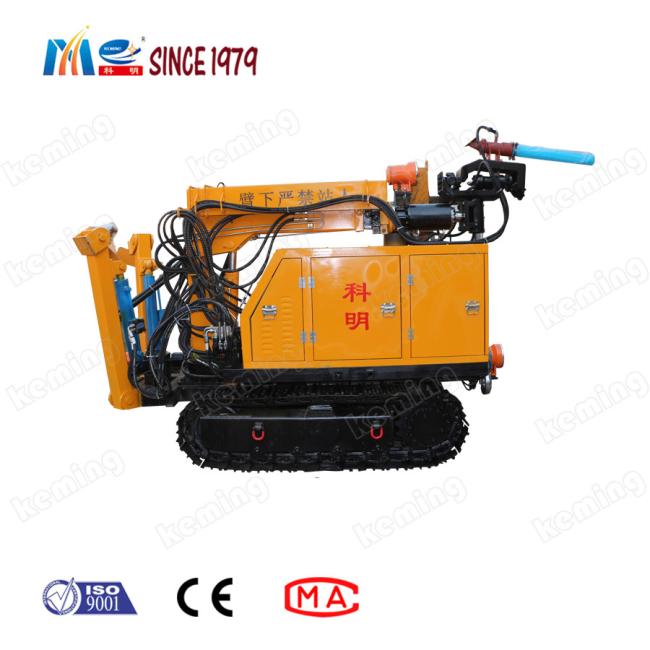

10m3/H Robotic Arm Concrete Shotcrete Machine Dry Mixing
Hot Selling Shotcrete Machine With Robotic Arm 10m3/H Quality Guaranteed From Famous Chinese Brand
Shotcrete Machine Features:
1.Concrete spray is suitable for dry, wet or wet and dry mixing.
2.independent hydraulic drive, 2 hydraulic legs, greatly improving the stability of the equipment during the spray process.
3.The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.
4.unique protective cover, can protect the robot arm.
Shotcrete Machine Application:
1. KPC-6A Shotcrete robot is an ideal equipment for any working space, even in narrow tunnel construction.
2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.
3. It can be used for slope stability (slope stability), excavation and support, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.
Shotcrete Machine Parameters:
| Parameter | Model | KPC-6A |
|
Dimensions in transport mode
Dimensions (length x width x height) in transport mode
|
2500*900*1680 mm | |
|
Weight
|
2400 kg | |
| Maximum length of operation | 7000 mm | |
| Outrigger expansion width | 2300 mm | |
| Support shotcrete capacity | 0~10m3/h | |
| Boom parameters | Maximum spraying height | 6.2m |
| Maximum spraying width | 7m | |
| Hose ID | 51mm/57mm/64mm | |
| Arm frame telescopic distance | 2.35m | |
| Boom expansion maximum length | 3.5m | |
| Chassis | Maximum gradient of walking | 20 % |
| Ground slope | 2% | |
| Walking speed | 0.6km/h | |
| Ground distance | 150 mm | |
| Power | Hydraulic system output | 7.5 kW |
| Voltage |
380~1140V 50Hz |
