Electric Motor Mine Dry Gunite Shotcrete Machine 9m3/H 0.6Mpa
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
10~20 Work Day
Brand:
KEMING
Product Description

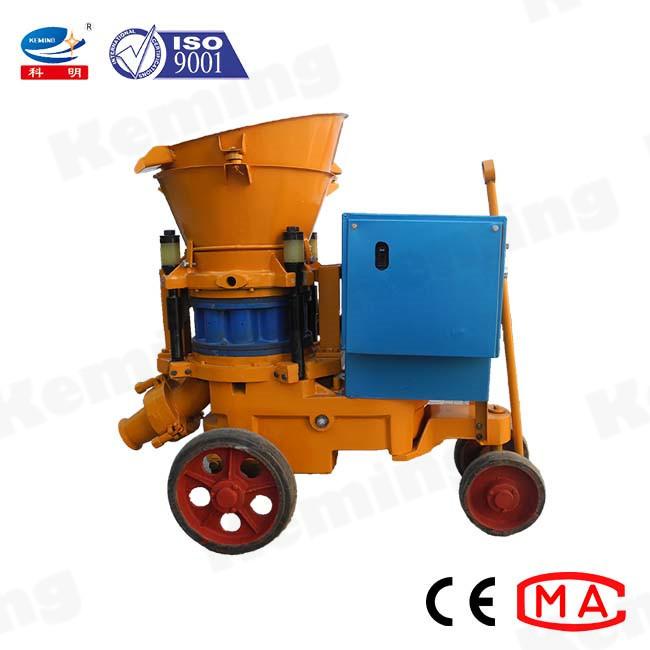

Customized KPZ dry gunite shotcrete machine using electric motor for mine
Electric Dry Shotcrete Machine Introduction:
1. Electric dry shotcrete machine is designed for spraying dry, damp and wet mixture.
2. Electric dry Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box.
3. It has advanced technology, rational structure, convenient operation, stable performance and long service life.
Electric Dry Shotcrete Machine Application:
1. Electric dry shotcrete machine can be used for dry or half wet concrete spray construction.
2. It is widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
Electric Dry Shotcrete Machin Parameters:
| KPZ Series (Electric motor) | |||||
| Model | KPZ-3 | KPZ-4 | KPZ-5/PC5I | KPZ-7 | KPZ-9 |
| Output | 2-3m3/h | 3.5-4.5m3/h | 4.5-5.5m3/h | 6-7m3/h | 7.5-8.5m3/h |
| Max. conveying dist. | 250m | 230m | 200m | 150m | 100m |
| Max. aggregate size | 15m | 18m | 20m | 20m | 20m |
| Hose inner diameter | φ42/51mm | φ42/51mm | φ51mm | φ57mm | φ57/64mm |
| Air consumption | 5-6m3/min | 6-7m3/min | 7-8m3/min | 8-9m3/min | 9-10m3/min |
| Motor power | 3kw | 5.5kw | 5.5kw | 7.5kw | 7.5kw |
