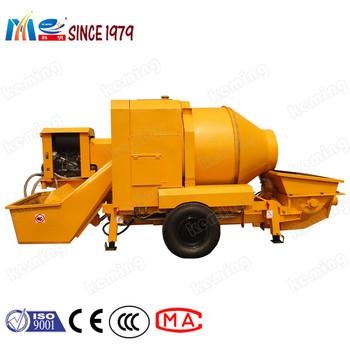

Shotcrete Concrete Mortar Grout Pump 13MPa With Diesel Motor
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
10~20 Work Day
Brand:
KEMING
Product Description
Top-one-selling in market shotcrete Pump/Concrete grout Pump with diesel motor
Shotcrete Pump/Concrete Grout Pump Introduction:
1. Excellent performance in suction.
2. Low resistance parabolic S tube.
3. long spraying distance: 300m horizontally and 100/80m vertically.
Shotcrete Pump/Concrete Grout Pump Application:
1. Optimal design of the hopper.
2. Low resistance parabolic S tube.
3. long spraying distance: 300m horizontally and 100/80m vertically.
Shotcrete Pump/Concrete Grout Pump Parameters( in diesel motor):
| Items | Unit | Parameters | ||||||
| KMB-50 | KMB-40 | KMB-30 | KMB-20 | KMB-10 | KMB-8 | |||
| Capacity | m3/h | 50(30-34) | 40(25-30) | 30(20-25) | 20(15) | 10(8) | 8(6) | |
| Max. aggregate size | mm | 40 | 30 | 20 | 20 | 25 | 15 | |
| Delivery pipe | mm | DN150/DN125 | DN125/DN100 | DN125/DN100 | DN125/DN100 | DN100/DN80 | DN80 | |
| Max. dist. | horizontally | m | 300 | 300 | 300 | 200 | 150 | 50 |
| vertically | m | 100/80 | 100/80 | 80/60 | 40 | 60 | 20 | |
| Diesel engine | kw | 84 | 56 | 44 | 40 | 40 | NONE | |
| Main oil pump | 140 double | 140/112 double | 112/80 double | 80 | 50 | 40 | ||
| Motor power | kw | 55 | 45 | 37 | 22 | 22 | 15/11 | |
| Output pressure | Mpa | 8-13 | 8-13 | 6-8 | 5-8 | 5-8 | 3-5 | |
