Paper Slurry Ink KH Series Industrial Hose Pump For Paper Printing Industry
Paper slurry ink and glue delivery KH Series Hose Pump in paper making and printing industry

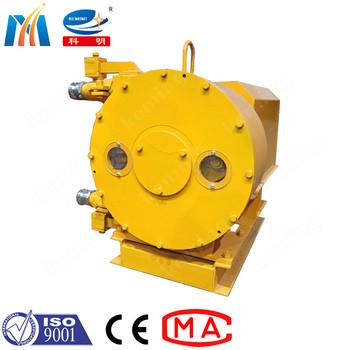

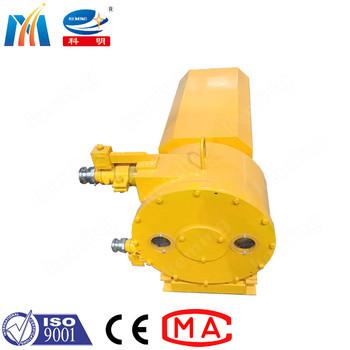

KH65 KH Series Hose Pump Introduction:
1. Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
2. Industrial Hose Pump is the very mature products with different kinds of standard models and many special models designed as the customer’s request. The working pressure ranges from 0.6~1.5 MPa, and output capacity from 0.01~50 m3/h.
KH65 KH Series Hose Pump Feature:
1. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.
2. No valve operation, no back flow, stable pumping flow, low fault rate.
3. Convenient maintenance, less wearable parts (except extruded hose).
4. High vacuum, strong self-suction capacity.
KH65 KH Series Hose Pump Application:
1. Construction --- pump and spray of cement, mortar, plaster, slurry, fine aggregates concrete ...
2. Mining industry --- delivery of mining slurry, gold pulp, tailing, thick pulp, filling materials...
3. Water treatment --- delivery of water, sewage, thick slurry, precipitated sludge...
4. Pharmacy --- delivery of drug liquids, harmful and corrosive materials...
5. Textile industry --- delivery of fibers, dyes, additives...
KH65 KH Series Hose Pump Parameters:
| Model | Rated output m3/h | Rated pressure | Rated power kw | Max. aggregate size mm | Max. suction dist. m |
| KH15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
| KH25 | 0.8-1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
| KH32 | 1.3-1.8 | 1.5 | 2.2 | 3 | 4 |
| KH40 | 2.0-3.5 | 1.5 | 2.2/4 | 4 | 4 |
| KH50 | 4.0-8.0 | 1.5 | 4/5.5/7.5 | 5 | 5 |
| KH65 | 9.0-15.0 | 1.0 | 7.5/11 | 6 | 5 |
| KH75 | 15.0-30.0 | 1.0 | 11/15 | 6 | 5 |
| KH90 | 30.0-40.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH100 | 40.0-50.0 | 1.0 | 15/18 | 6/8(soft) | 5 |
| KH130 | 50.0-70.0 | 1.0 | 18/22 | 6/10(soft) | 5 |
| KH150 | 70.0-80.0 | 1.0 | 22/30 | 6/10(soft) | 5 |
| KH200 | 100.0-110.0 | 1.0 | 30/37 | 6/15(soft) | 5 |
