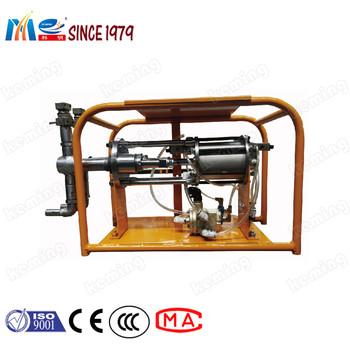

Stable Reliable Performance 38mm Pneumatic Grout Pump For Pre Grouting
Stable and reliable performance KEMING Brand Pneumatic Grout Pump for pre-grouting
KEMING Brand Pneumatic Grout Pump Features:
1. Advanced structure, high output pressure, large output capacity, high efficiency.
2. The pump adopts compressed air to transmit pressure signal, which forms close automatic control system to ensure reliable performance.
3. Reversing mechanism has automatic positioning function by air pressure with no "self-stop" phenomenon.
KEMING Brand Pneumatic Grout Pump Introductions:
1. All cylinders work simultaneously to ensure even mixing and rated mixing ratio.
2. Suction valve and discharge valve can be quickly removed, easy maintenance.
3. Pneumatic transmission, strong anti-pollution ability, small size, light weight, easy movement.
KEMING Brand Pneumatic Grout Pump Application:
1. The pump has single or double liquid grouting function.
2. It can work in inflammable, explosive, strong rediative, dusty sites and other bad environments with changeable temperature.
3. Slope protection grouting in civil engineering, mining tunnel construction etc.
4. It can work in inflammable, explosive, strong rediative, dusty sites and other bad environments with changeable temperature.
KEMING Brand Pneumatic Grout Pump Parameters:
| Items | Parameters | |
| 2ZBQ-10/3 | ZBQ-25/2 | |
| Pressure(Mpa) | 0-3 | 0-5.5 |
| Output(L/min) | 0-14 | 0-30 |
| Working aire pressure(Mpa) | 0.2-0.63 | |
| Inlet dia. (mm) | 25 | 38 |
| Outlet dia.(mm) | 13 | 19 |
| Items | Parameters | ||||
| 2ZBQ-20/4 | 2ZBQ-10/10 | 2ZBQ-70/7 | 2ZBQ-30/30 | 2ZBQ-50/19 | |
| Output pressure Mpa | 4 | 10 | 7 | 30 | 19 |
| Output capacity L/min | 20 | 10 | 70 | 30 | 50 |
| Working air pressure Mpa | 0.2-0.63 | ||||
|
Outlet dia. mm |
25 | ||||
| Inlet dia. mm | 13 | 19 | |||
