Diesel Concrete Pan Mixer 21 R / Min For Construction
Construction used KEMING Concrete Pan Mixer mixing in clockwise direction

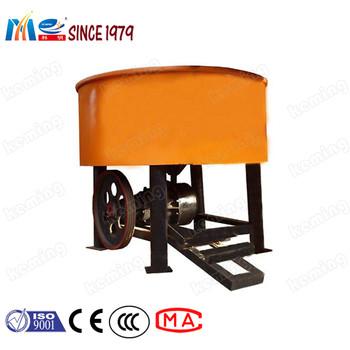

KEMING Concrete Pan Mixer Introduction:
1. KEMING Concrete Pan Mixer is a single-shaft concrete mixer.
2. It can be equipped with the feeding and weighing equipment to form a medium-sized mixing station.
3. Forward rotation stirs the material, which reverse rotation discharges the material.
KEMING Concrete Pan Mixer Features:
1. Low energy consumption, low noise.
2. High wear-resistance, long service life.
3. Good mixing quality, fast discharge speed, high efficiency.
KEMING Concrete Pan Mixer Application:
1. KEMING Concrete Pan Mixer is widely used in various construction sites, such as roads, bridges, hydropower and other projects.
2. KEMING Concrete Pan Mixer can also be used in large, medium and small prefabricated component plants, brick making plants, or industrial construction projects.
3. KEMING Concrete Pan Mixer can stir mortar and cement slurry, hard concrete, plastic concrete, pasty concrete or lightweight aggregate concrete.
KEMING Concrete Pan Mixer Technical Parameters:
|
Model |
Unit |
KJW350 |
KJW500 |
KJW1000 |
|
Drum volume |
L |
350 |
500 |
1000 |
|
Capacity |
m3/h |
9~12 |
15~18 |
25~30 |
|
Max. aggregate. size |
mm |
30 |
30 |
40 |
|
Power |
kW |
5.5 |
7.5 |
13 |
|
Shaft rotational speed |
r/min |
21 |
40 |
21 |
|
Dimension (length×width×height) |
mm |
1200*1200*1400 |
1300*1300*1400 |
1800*1800*1400 |
