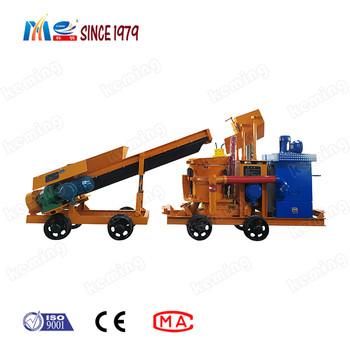

Electric Parts Shotcrete Machine Explosion Proof With Mixer For Coal Mine Use
Explosion-proof Electric Parts Shotcrete Machine with Feeder and Mixer for Coal Mine Use
Shotcrete Machine with Feeder and Mixer Information:
Keming shotcrete machine with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..
Shotcrete Machine with Feeder and Mixer Technical Parameters:
|
Items |
Unit |
Technical parameters |
|
Model |
|
JPS7I-L Shotcrete Machine |
|
Capacity |
m3/h |
5~7 |
|
Conveying dist. |
m |
70/20 |
|
Suitable water and cement ratio |
|
cement/gravel=1:3-5 |
|
Aggregate size max. |
mm |
≤20 |
|
Conveying pipe ID. |
mm |
φ50 |
|
Operating pressure |
MPa |
0.2~0.4 |
|
Air consumption |
m3/min |
7-8 |
|
Material feeding height |
m |
1.2 |
|
Motor power |
kw |
5.5(feeder)/7.5(main motor) |
|
Voltage |
V |
380/660 or 660/1140 |
|
Machine gauge |
mm |
600(900) |
|
Dimensions (Length×width×height) |
mm |
2930×1152×1620 |
|
Total weight |
kg |
1250 |
Shotcrete Machine with Feeder and Mixer Application:
1.JPS7I-L Self-loading Shotcrete Machine can spray half wet or wet concrete.
2. JPS7I-L Self-loading Shotcrete Machine is widely used in coal mine, tunnels, culverts, subway, underground engineering and other narrow space.
Company Business Scope:
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
