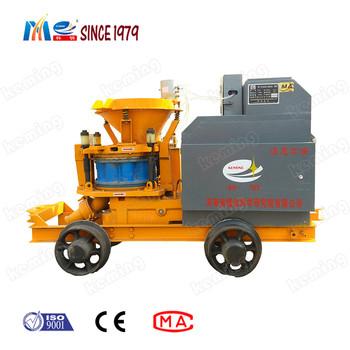

Rotory KEMING Wet Mix Shotcrete Machine Electric Motor For Subway Construction
Convenient Operation KEMING Dry/Wet Shotcrete Machine for Subway Construction
KEMING Dry/Wet Shotcrete Machine Information:
1. KEMING Dry/Wet Shotcrete Machine include Electric Shotcrete Machine (KSP-5, KSP-7, KSP-9), Diesel Engine Shotcrete Machine (KSP-5D, KSP-7D, KSP-9D), and Mining Shotcrete Machine (PS6I).
2. Concrete mixture gets well mixed, water and cement ratio is accurately controlled.
3. KEMING Dry/Wet Shotcrete Machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.
KEMING Dry/Wet Shotcrete Machine Technical Parameters:
|
Model |
KSP-7 |
KSP-9 |
|
Capacity |
5-7m³/h |
7-9m³/h |
|
Conveying distance |
35m(WET)/120m(DRY) |
30m(WET)/100m(DRY) |
|
Max. aggregate size |
20mm |
|
|
Concrete slump |
8~15cm |
|
|
Conveying Pipe ID. |
57mm |
|
|
Rebound rate |
≤10%(on average ) |
|
|
Air consumption |
9-10m³/min |
10m³/min |
|
Motor power |
7.5kw |
|
|
Max. Pump discharge of accelerator |
35-200L/h |
|
KEMING Dry/Wet Shotcrete Machine Application:
1. KEMING Dry/Wet Shotcrete Machine include Electric Shotcrete Machine (KSP-5, KSP-7, KSP-9), Diesel Engine Shotcrete Machine (KSP-5D, KSP-7D, KSP-9D), and Mining Shotcrete Machine (PS6I).
2. Concrete mixture gets well mixed, water and cement ratio is accurately controlled.
3. KEMING Dry/Wet Shotcrete Machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.
FAQ
---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
3. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
