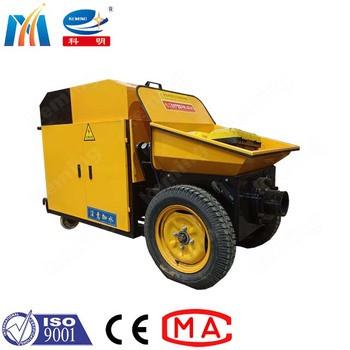

KMB Series Concrete Pump Small 1100mm For Construction Works
Popular Concrete Pump KMB Series Small Concrete Pump for Construction Works
KMB Series Small Concrete Pump Information:
1. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
2. grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. Electric concrete pump can convey fine aggregate concrete and mortar for high buildings.
KMB Series Small Concrete Pump Technical Parameters:
| Items | Unit | Parameters | ||||||
| KMB-50 | KMB-40 | KMB-30 | KMB-20 | KMB-10 | KMB-8 | |||
| Capacity | m3/h | 50(30-34) | 40(25-30) | 30(20-25) | 20(15) | 10(8) | 8(6) | |
| Max. aggregate size | mm | 40 | 30 | 20 | 20 | 25 | 15 | |
| Delivery pipe | mm | DN150/DN125 | DN125/DN100 | DN125/DN100 | DN125/DN100 | DN100/DN80 | DN80 | |
| Max. dist. | horizontally | m | 300 | 300 | 300 | 200 | 150 | 50 |
| vertically | m | 100/80 | 100/80 | 80/60 | 40 | 60 | 20 | |
| Diesel engine | kw | 84 | 56 | 44 | 40 | 40 | NONE | |
| Main oil pump | 140 double | 140/112 double | 112/80 double | 80 | 50 | 40 | ||
| Cylinder diameter | 200 | 160/180 | 140 | 120 | 140 | 120 | ||
| Motor power | kw | 55 | 45 | 37 | 22 | 22 | 15/11 | |
| Output pressure | Mpa | 8-13 | 8-13 | 6-8 | 5-8 | 5-8 | 3-5 | |
KMB Series Small Concrete Pump Application:
1. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
2. grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. Electric concrete pump can convey fine aggregate concrete and mortar for high buildings.
FAQ
---Concrete Pump, Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
