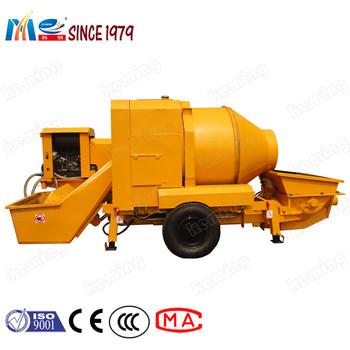

Electric Motor Mixing Concrete Pump 6MPa Used In Construction Sites
Labor Cost Saver KEMING Mixing Concrete Pump Used in Construction Sites
KEMING Mixing Concrete Pump Information:
1. KEMING Mixing Concrete Pump combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.
2. Concrete pump has double cylinder hydraulic pump system with reliable performance.
KEMING Mixing Concrete Pump Technical Parameters:
| Items | Unit | Parameters | |||||
| KBT2506/JZM450 | KBT2506/JZM350 | KBT2006/JZM300 | KBT20/JZC350 | KBT0804/JZC200 | |||
| Capacity | m3/h | 25(18) | 25(18) | 20(13) | 20(15) | 8(6) | |
| Max. aggregate size | mm | 40 | 40 | 40 | 40 | 30 | |
| Delivery pipe | mm | DN125 | DN125 | DN125 | DN125 | DN125 | |
| Max. dist | horizontally | m | 200 | 200 | 150 | 150 | 100 |
| vertically | m | 80(60) | 80(60) | 60(40) | 60(40) | 30 | |
| Mixer type | JZM450 | JZM350 | JZM300 | JZC350 | JZC200 | ||
| Charge hopper | L | 720 | 560 | 500 | 560 | 300 | |
| Discharge hopper | L | 450 | 350 | 300 | 350 | 200 | |
| Diameter of drum | mm | 1550 | 1440 | 1260 | 1440 | 1000 | |
| Output pressure | Mpa | 6-8 | 6-8 | 5-8 | 5-8 | 3-5 | |
KEMING Mixing Concrete Pump Application:
1. KEMING Mixing Concrete Pump combines concrete mixer and concrete pump as one new concrete pumping machine with concrete mixer.
2. Concrete pump has double cylinder hydraulic pump system with reliable performance.
FAQ
---Concrete Pump, Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
