Forged ZK60 ZK60A magnesium block slab plate billet AZ80 magnesium billet Higher strength to weight Ratio

Forged ZK60 ZK60A magnesium block slab plate billet AZ80 magnesium billet Higher strength to weight Ratio

Semi-continuous Cast magnesium alloy billet and slab is manufactured as the starting material for other magnesium products, such as plate, forgings and extrusions. However, it has been frequently found that the cast billet and slab is suitable for machining into prototypes, thus avoiding expensive tooling, and in some cases for production where the size of the finished items is outside economic casting or extrusion dimension or minimum economic production.

Semi-continuous Cast Magnesium Alloy Billet and Slab is supplied to clients on the compositional and homogenized condition.

For AZ91D cast billet: OD 120 – 600mm, length is 2000mm

For AZ91D cast slab: max. 400 x 1200 x 2500mm

Both the billet and slab, we can cut to size as per customer’s requirement

Chemical Composition (%)

Al: 8.3-9.7

Mn: 0.15-0.5

Zn: 0.35-1.0

Si: 0.10

Cu: 0.030

Ni: 0.002

Iron max: 0.005

Mechanical Properties of the cast billet and slab:

Tensile strength: 140Mpa

Yield strength: 100Mpa

Elongation: 2%

Hardness: 63HBW

Density: 1.81g/cm3

We also produce the forged AZ91D blocks, the max. size is 300 x 500 x 1000mm.

Mechanical Properties:

Tensile strength: 250Mpa

Yield strength: 160Mpa

Elongation: 6%

XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) is one of the leading manufacturer of magnesium alloy products located in Xincheng Hi-Tech Industry Estate, Xi’an, Shaanxi, China, who is specialized in the development, manufacture and supply of magnesium alloy products worldwide included magnesium tooling plate, magnesium alloy plate, magnesium alloy sheet, magnesium alloy slab, magnesium alloy bar, magnesium alloy billet, magnesium alloy rod, magnesium alloy tube, magnesium alloy pipe, magnesium alloy profile, magnesium welding wire, magnesium alloy extrusion, magnesium alloy stamping, magnesium alloy casting, magnesium alloy forging and semi - fabricated component according to customer’s design.

We comply with the specifications:

GB5153-03, GB5154-04, AMS4377G, ASTM B90/B90M-15, MIL-DTL 32333, MIL-T-38749, QQ-M-44B, ASTM B107/B107M-13 and ASTM B91-97

Material grades: AZ31B, AZ61A, AZ80A, AZ91D, AZ41M, ZK60, AM50, AM60, ZM21, MIA, ME20M, EQ21, WE43, WE54, ZE41, etc.

Our main products and capabilities are as follows:

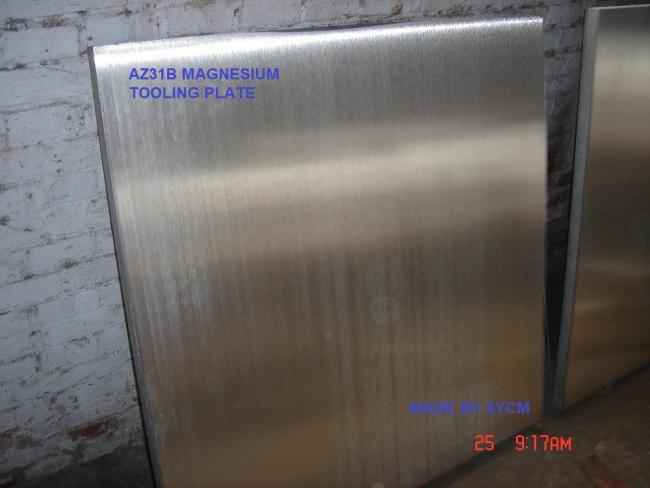

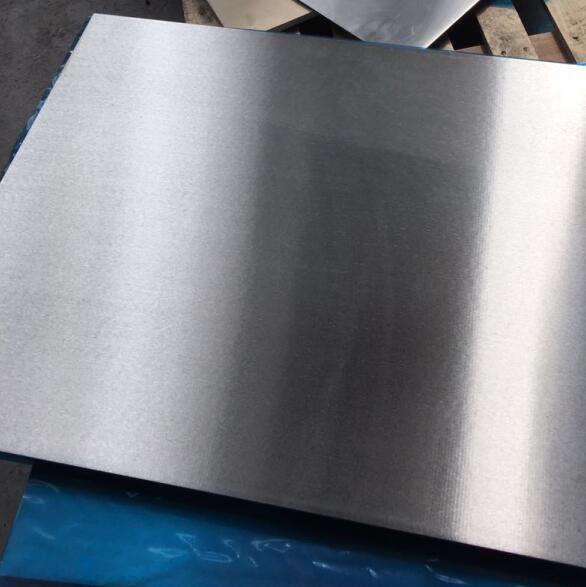

1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 2000mm; Max. Length: 6000mm

2. Magnesium alloy cast slab: Max. Size: 400 x 1000 x 3000mm

3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm

4. Magnesium cast billet: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm

5. Magnesium alloy extruded wire: Dia.1.0mm – 8.0mm in spool.

6. Magnesium alloy extruded rod: Min. Dia. 8mm; Max. Diameter: 450mm; Max. Length: 3000mm

7. Magnesium extrusions:

Round tube: Max. OD600mmx thickness 125mm

Square tube: 430 x 430mm

Flat bar: 920 x 160mm

U-Shape: 800 x 300mm

Rectangular: 700 x 200mm

8. Magnesium-Lithium Alloy rod, sheet, plate and tube.

STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE

TOOLING PLATES STANDARD METRIC SIZES

Our Services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality

FAQ:
1. Q: Are you a factory or trading company?
A: We are direct manufacturer located in Xi'an, Shaanxi province, and have our equipment!

2. Q: Are your products customized?
A: Yes,the products in the website are only the common type or the previous types, we can supply the new products according to your requirements or drawings.

3. I do not know how to use your product ?
Do not worry ! We can supply technical guidance together with products.

4. Q: How can I get some samples?
A: Several samples are freely offered for buidling the business long-term relationships and letting our customers believing the quality of our products.
