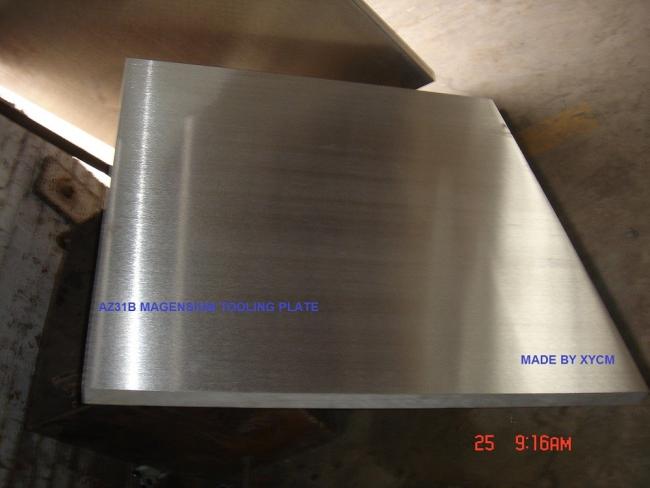

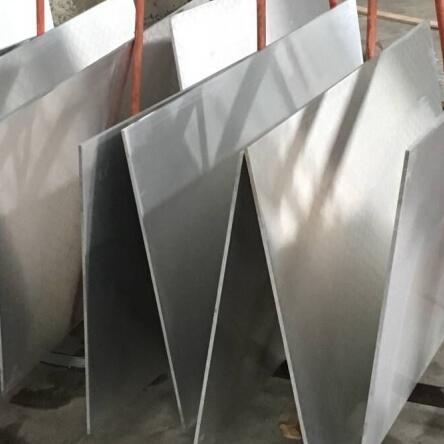

Hot Rolled Magnesium Tooling Plate Magnesium Metal sheet plate AZ91D AM50 AM60 with excellent strength
Magnesium alloys have traditionally been specified by designers because of their favorable strength to weight ratios. Magnesium is approximately two thirds the density of aluminium and a quarter that of steel. Some of the more recently developed magnesium alloys have also improved resistance to corrosion and better all round mechanical properties, especially at elevated temperature.
The growing numbers of available magnesium alloys are divided into two groups: casting alloys and wrought alloys. Wrought product forms (described below) include both extruded sections and rolled sheet/plate along with tubes and forgings. Various heat treatments are used to attain maximum strength and machining of most magnesium alloys is excellent.
The specifications and alloy grades which XIAN YUECHEN METAL PRODUCTS CO., LTD. (XYMCO) can be complied with are as following Table:
| DESCRIPTION | ASTM Alloy Designation & Temper | ASTM | FEDERAL | AMS | ||
| AZ31B | Sheet - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | |
| Sheet - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate - soft | AZ31B-O | B90 | QQ-M-44B | 4375 | ||
| Plate - half hard | AZ31B-H24 | B90 | QQ-M-44B | 4377 | ||
| Plate- three quarters hard | AZ31B-H26 | B90 | QQ-M-44B | 4376 | ||
| Plate - Extra flat | AZ31B-O | -- | 4382 | |||
| Extruded bars & sections | AZ31B-F | B107 | QQ-M-31B | - | ||
| AZ61A | Extruded bas & sections & forging stock | AZ61A-F | B107 | QQ-M-31B | 4350 | |
| Extruded tube | AZ61A-F | B107 | WW-T-825B | - | ||
| Forgings | AZ61A-F | B91 | QQ-M-40B | - | ||
| AZ80A | Extruded bars & sections | precipitation treated | AZ80A-T5 | B107 | QQ-M-31B | - |
| As-extruded | AZ80A-F | B91 | QQ-M-31B | - | ||
| Forgings | precipitation treated | AZ80A-T5 | B91 | QQ-M-40B | 4360 | |
| As-extruded | AZ80A-F | B91 | QQ-M-40B | |||
| ZK60A | Extruded bars & sections | precipitation treated | ZK60A-T5 | B107 | QQ-M-31B | 4352 |
| As-extruded | ZK60A-F | B107 | QQ-M-31B | - | ||
| Forgings | precipitation treated | ZK60A-T5 | B91 | QQ-M-40B | 4362 | |
| As-extruded | ZK60A-F | B91 | QQ-M-40B | - | ||
| Magnesium Alloy Castings | AM50, AM60, A281, AZ91, EQ21, EZ33, EV31, WE43, WE54, ZE41 | |||||
| DAMPING | Absorbs vibration for longer life, while retaining dimensional stability. |
| TOOLING | 4 to 5 times greater tool life. |
| FINISH | Up to 5 times more machinable than rolled aluminum. |
| COSTS | Machine dry, without oil or chemicals. |
| WEIGHT | Easier handling saves energy and time. |
| FLATNESS | Eliminates surface machining. |
| STABILITY | No stress relief after machining; no warps and is dent resistant. |
| WELDING | Strong weldments up to 95% of parent metal, with minimal porosity. |
| ALKALI-RESISTANT | Makes for easy cleaning. |
| CORROSION RESISTANT | A wide variety of chemical treatments exists for corrosion protection, alteration of surface appearance, and to provide a base for painting. Basic engineering precautions averts galvanic corrosion. |
| STRENGTH | Excellent strength and stiffness per unit weight. |
| NON-GALLING | Sound and rugged surface, offering a low coefficient of friction and minimum wear, |
REPID HEAT | Ideal for a broad range of operating temperatures, from 350 degrees Fahrenheit to -30 degrees Fahrenheit. |
| NONMAGNETIC | Good for electrical and computer applications. |
UNIT VOLUME | Greater amount of finished magnesium material obtained, pound for pound. |
| SALVAGE | Scrap retains a consistently high level of value. |
