Lightest weight structural metal AZ31B AZ61 AZ80 AZ91 AM60 magnesium alloy block plate slab for vacuum chucks
Xi'an Yuechen Metal Products. Co., Ltd. (XYMCO) - a manufacturer specialized in the magnesium tooling plate, Magnesium alloy plate, magnesium alloy slab, magnesium alloy sheet, magnesium alloy bar, magnesium alloy tube, magnesium alloy billet, magnesium alloy rod, magnesium alloy rod, magnesium alloy pipe, magnesium welding wire, magnesium alloy profile, magnesium alloy forging, magnesium alloy casting, magnesium alloy machining part.
We comply with the specifications: AMS 4377G, AMS 4382, ASTM B90/B90M and ASTM B107.
Material grades: AZ31B, AZ61A, AZ80A, ZK60, AM50, AM60, AZ91, EQ21, EZ33, EV31, WE43, WE54 and ZE41.
Magnesium Tooling Plate Flatness Tolerances
Max. deviation from flat as measured by a straight edge placed on plate surface.
| Specified Plate Gauge | Max. allowed deviation from flat | |||
| Over (mm) | Thru (mm) | In any 300mm | In any 1500mm | In any 2000mm |
| 6.3 | 25 | 0.125mm | 0.31mm | 0.42mm |
| 25 | 150 | 0.250mm | ||
| Specified Plate Gauge | Typical tooling plate deviation from flat | |||
| Over (mm) | Thru (mm) | In any 300mm | In any 1500mm | In any 2000mm |
| 6.3 | 25 | 0.077mm | 0.15mm | 0.19mm |
| 25 | 150 | 0.125mm | 0.21mm | 0.28mm |
Other sizes are available subject to enquiry, up to a maximum per plate weight of 2000kg.
Maximum gauge: 300mm; Maximum width 2000mm; Maximum length: 5000mm
STANDARD DIMENSIONAL TOLERANCES FOR TOOLING PLATE
| GAUGE TOLERANCES | WIDTH TOLERANCES | LENGTH TOLERANCES | ||||||
| Specified Gauge | Tolerance | Specified Width | Tolerance | Specified Width | Tolerance | |||
| Over | Thru | Over | Thru | Over | Thru | |||
| 6.3 | 19mm | +/-0.25mm | 0 | 250mm | +4.75mm | 0 | 250mm | +4.75mm |
| 19 | 32mm | +/-0.43mm | 250 | 1220mm | +9.50mm | 250 | 1220mm | +9.50mm |
| 32 | 50mm | +/-0.64mm | 1220 | 1825mm | +12.7mm | 1220 | 1825mm | +12.7mm |
| 50 | 75mm | +/-1.25mm | 1825 | 1950mm | +15.9mm | 1825 | 6000mm | +15.9mm |
| 75 | 83mm | +/-1.65mm | - | - | - | - | - | - |
| 83 | 90m | +/-2.00mm | - | - | - | - | - | - |
| 90 | 100mm | +/-2.80mm | - | - | - | - | - | - |
| 100 | 125mm | +/-3.20mm | - | - | - | - | - | - |
| 125 | 150mm | +/-3.40mm | - | - | - | - | - | - |
| 150 | 175mm | +/-3.705mm | - | - | - | - | - | - |
TOOLING PLATES STANDARD METRIC SIZES
| 6.35 x 1250 x 2500mm | 20 x 1500 x 4000mm | 50 x 1500 x 4000mm |
| 6.35 x 1250 x 4000mm | 25 x 1250 x 2500mm | 60 x 1250 x 2500mm |
| 10 x 1250 x 2500mm | 25 x 1250 x 4000mm | 60 x 1250 x 4000mm |
| 10 x 1250 x 4000mm | 25 x 1500 x 4000mm | 60 x 1500 x 4000mm |
| 12.7 x 1250 x 2500mm | 30 x 1250 x 2500mm | 75 x 1250 x 2500mm |
| 12.7 x 1250 x 4000mm | 30 x 1250 x 4000mm | 75 x 1250 x 4000mm |
| 12.7 x 1500 x 4000mm | 30 x 1500 x 4000mm | 75 x 1500 x 4000mm |
| 15 x 1250 x 2500mm | 40 x 1250 x 2500mm | 100 x 1250 x 2000mm |
| 15 x 1250 x 4000mm | 40 x 1250 x 4000mm | 125 x 1250 x 2000mm |
| 15 x 1500 x 4000mm | 40 x 1500 x 4000mm | 150 x 1250 x 1500mm |
| 20 x 1250 x 2500mm | 50 x 1250 x 2500mm | |
| 20 x 1250 x 4000mm | 50 x 1250 x 4000mm |
Our main products and capacities are as follows:
1. Magnesium tooling plate: Max. Thickness: 300mm; Max. Width: 3000mm; Max. Length: 6000mm

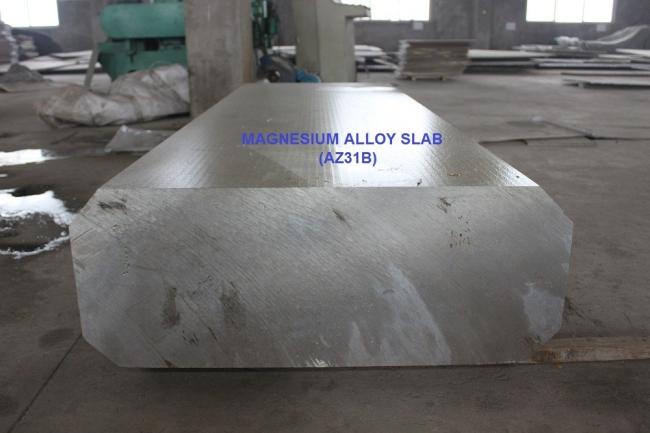

2. Magnesium alloy slab: Max. Size: 400 x 1000 x 2500mm
3. Magnesium alloy sheet: Min. Thickness: 0.5mm; Max. Width: 600mm; Max. Length: 2000mm
4. Magnesium cast bar: Min. Diameter 90mm; Max. Diameter: 600mm; Max. Length: 6000mm
5. Magnesium extrusions:
Round tube: Max. OD 600mmx thickness 125mm Square tube: 430 x 430mm Flat bar: 920 x 160mm
U-Shape: 800 x 300mm Rectangular: 700 x 200mm
6. Magnesium alloy machined part according to customer’s design
7. Magnesium anode as per customer’s design
Our products already were exported to USA, Japan, Israel, India, Germany, Iran, Columbia, Italy and UK. Good quality, good price and good delivery.
Looking forward to your enquiry and hope a prosperous cooperation can be established between us.
